Bartec 07-3353-3123/2000 Lamp Module

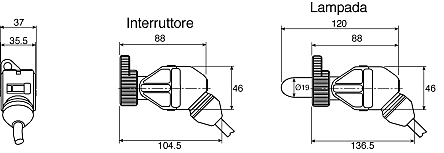

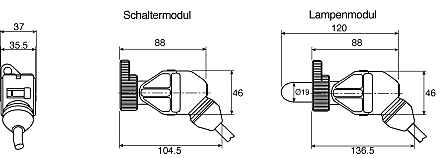

Life expectancy: Switch - mechanical 106 operationsLife expectancy: Lamp - electrical 103 hours illuminatedDimensions (mm): 37 x 46 x (104.5 switch) (168.5 lamp)

Switch - PTB 00 ATEX 1092XLamp - PTB 97 ATEX 1065X

Switch and Lamp: II 2 G EEx d IIC T6

Hazardous Area Actuators & Contact Blocks

Panel mounting, with a wide range of switch contact arrangements and elements including; selector switches, key switches, standard pushbuttons and an emergency stop pushbutton. The actuators and lens units require a 30.5mm mounting hole. Ingress protection is to IP66 and they are component-approved in their own right. Switch and lamp modules include three metres of encapsulated cable. Switch modules include a wipe clean action and are rated up to 230Vac/16A (circuit type AC-12). The N/C contact has a positive break action.,The electronic circuitry of each lamp module self configures to allow the lamps to be used over a wide range of ac and dc voltages.,A simple cam arrangement on the modules provides a rapid method for the fitting of the actuators.
