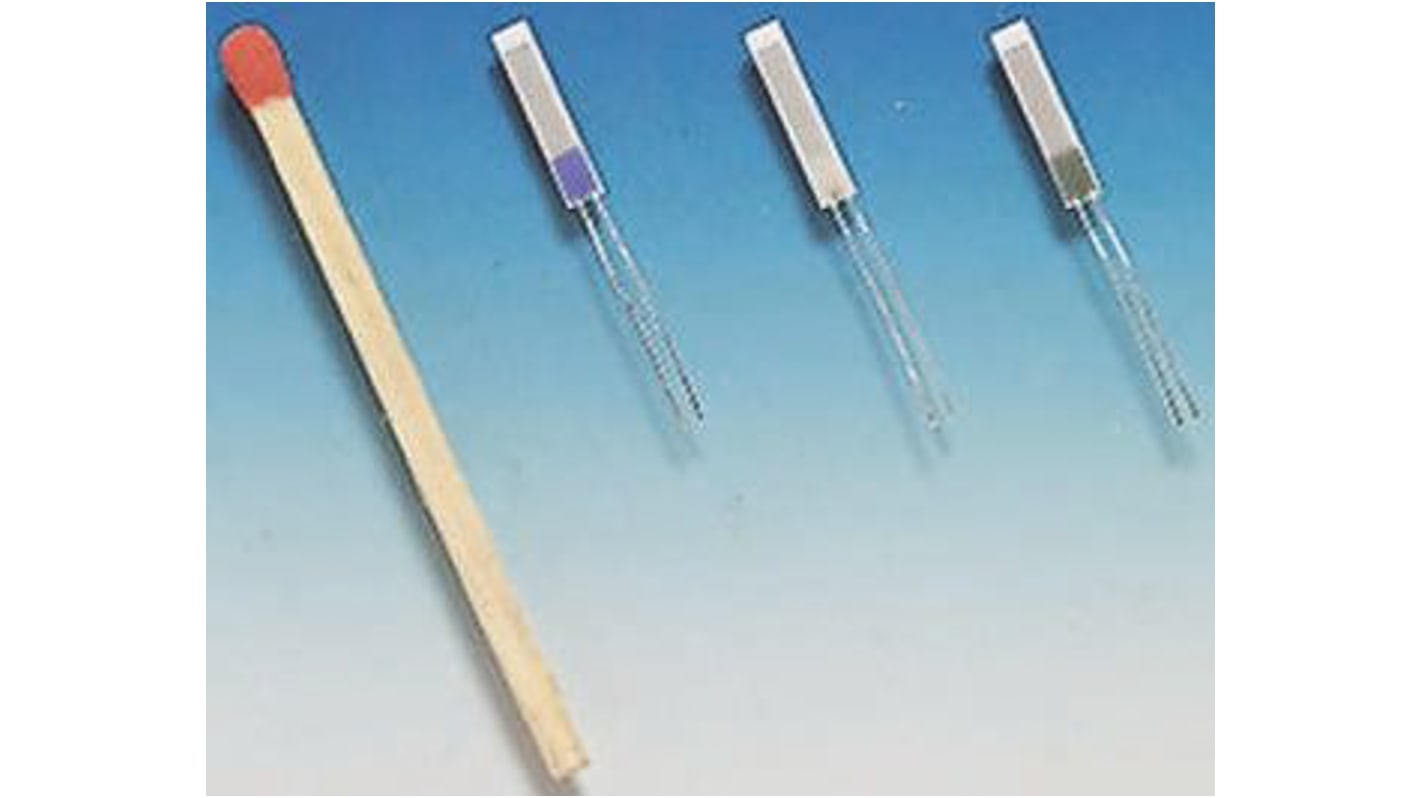

Jumo PT1000 RTD Sensor, 1.5mm Dia, 3.1mm Long, Chip, Class B +150°C Max

View all RTD Sensors
Unavailable
RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
TE Connectivity PT1000 RTD Sensor, 2mm Dia, 2.3mm Long, Chip, 0.15 % +300°C Max
RS Stock No.
893-7161

Each

£3.40

(exc. VAT)

£4.08

(inc. VAT)

RS Stock No.:
386-8786
Mfr. Part No.:
PCS_1.1503.10_00_F 0,3
Brand:
Jumo
Find similar products by selecting one or more attributes.
Select all

Brand

Jumo

Sensor Type

PT1000

Probe Length

3.1mm

Probe Diameter

1.5mm

Minimum Temperature Sensed

-50°C

Maximum Temperature Sensed

+150°C

Termination Type

Solder

Process Connection

Chip

Accuracy

Class B

Response Time

0.02 s (Water), 0.15 s (Air)

RoHS Status: Exempt

COO (Country of Origin):
DE

SMD chip sensor


For temperatures between -50 °C and +150 °C
Standardised nominal value of 100 Ω / 500 Ω / 1000 Ω
Wrap-around contact with diffusion barrier
Supplied in tape packaging with 5 pcs

The SMD temperature sensor has solder connections at both ends. Size 1206 and its zinc-plated all-round contact capability enable mounting-friendly use on electronic PCBs. Compared with connection-wire versions, the SMD temperature sensor is especially robust and ideal for automatic mounting in mass production. Its impressive characteristics (recognisable in the platinum temperature sensors) such as a standardised nominal value in accordance with DIN, a high level of long-term stability, replacement without readjustment and good reproducibility of electrical characteristics make it suitable for universal applications. Its field of use includes taking surface and ambient temperature measurements on PCBs and temperature compensation.
