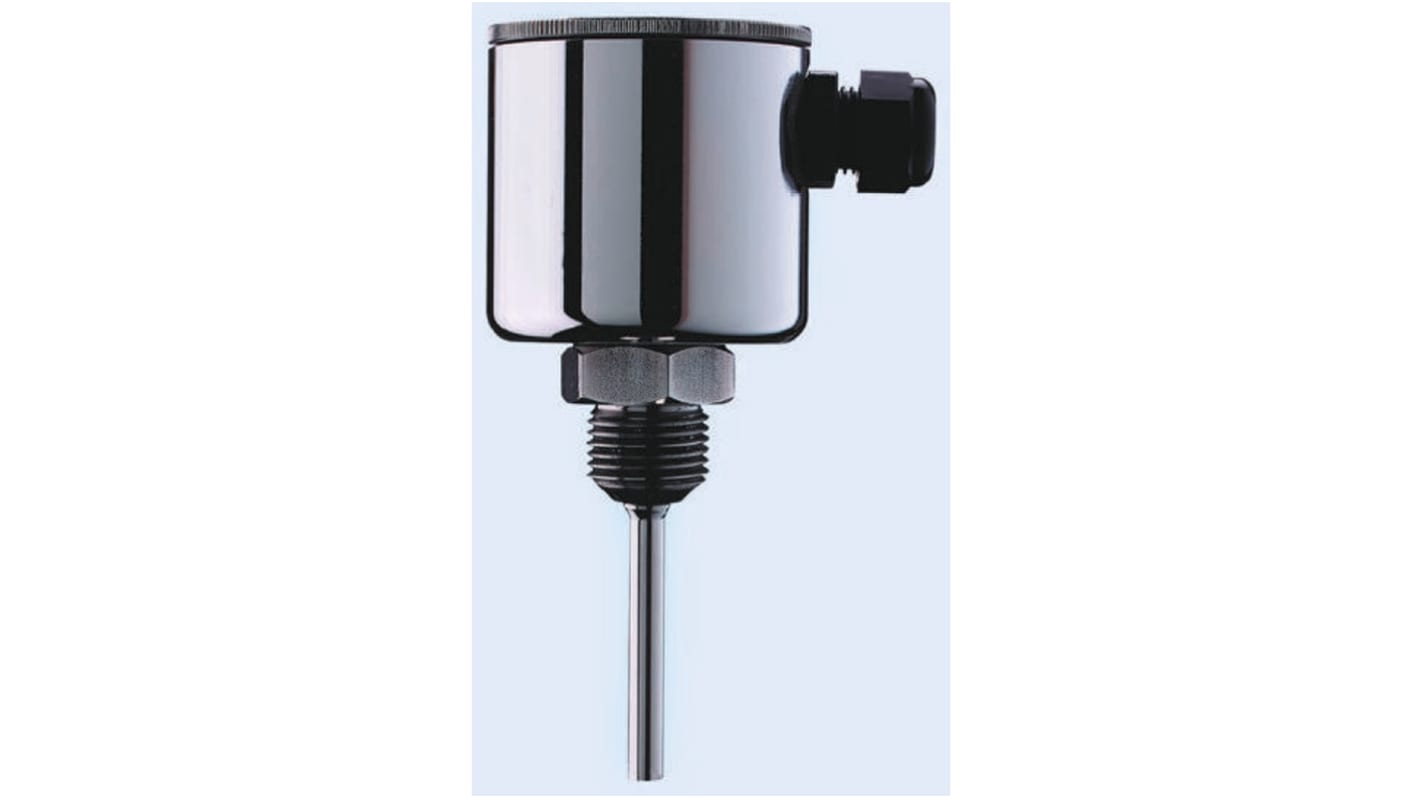

Jumo PT100 RTD Sensor, 6mm Dia, 100mm Long, 3 Wire, G1/2, Class B +250°C Max
- RS Stock No.:
- 386-8758
- Mfr. Part No.:
- 902810/20-1001-2-6-100-104-26/305,
- Brand:
- Jumo
Bulk discount available
Subtotal (1 unit)*
£165.78
(exc. VAT)
£198.94
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 2 | £165.78 |
| 3 + | £161.18 |
*price indicative
- RS Stock No.:
- 386-8758
- Mfr. Part No.:
- 902810/20-1001-2-6-100-104-26/305,
- Brand:
- Jumo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Jumo | |
| Sensor Type | PT100 | |
| Probe Length | 100mm | |
| Probe Diameter | 6mm | |
| Minimum Temperature Sensed | -50°C | |
| Maximum Temperature Sensed | +250°C | |
| Termination Type | Connection Head | |
| Process Connection | G1/2 | |
| Number Of Wires | 3 | |
| Accuracy | Class B | |
| Response Time | 12 s | |
Select all | ||
|---|---|---|
Brand Jumo | ||
Sensor Type PT100 | ||
Probe Length 100mm | ||
Probe Diameter 6mm | ||
Minimum Temperature Sensed -50°C | ||
Maximum Temperature Sensed +250°C | ||
Termination Type Connection Head | ||
Process Connection G1/2 | ||
Number Of Wires 3 | ||
Accuracy Class B | ||
Response Time 12 s | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Resistance thermometer for the foodstuffs/pharmaceutical industry
For temperatures from -50 °C → +250 °C
Stainless steel protective tubes
Optional use of analogue or programmable two-wire transducers for longer transmission distances
Stainless steel protective tubes
Optional use of analogue or programmable two-wire transducers for longer transmission distances
Warning
Reduced ambient temperatures when using transducers.
