Endress+Hauser RTD RTD Sensor, 2 Wire, +150°C Max
- RS Stock No.:
- 316-280
- Mfr. Part No.:
- TST434B-AAB1AABNQ
- Brand:
- Endress+Hauser

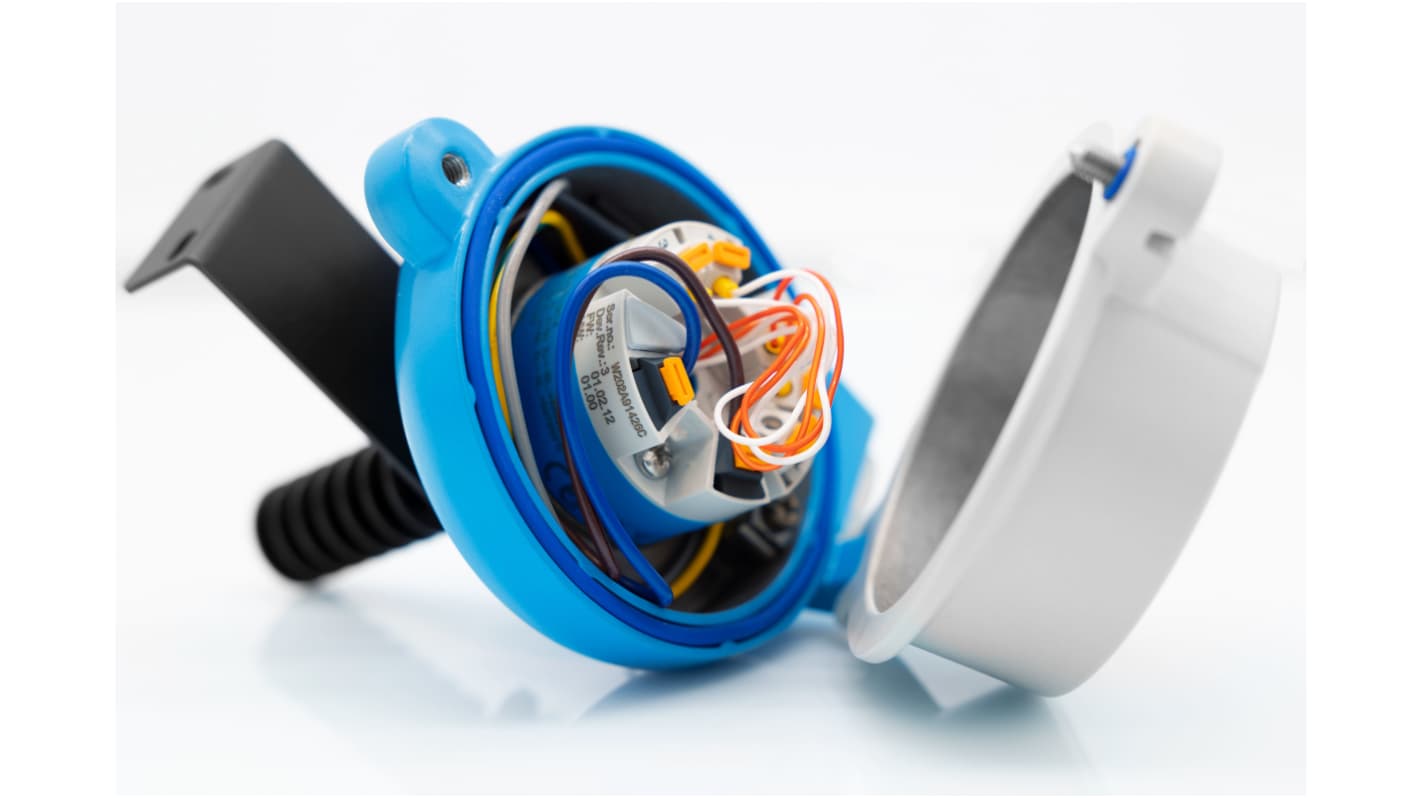

Image representative of range
Subtotal (1 unit)*
£150.11
(exc. VAT)
£180.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £150.11 |
*price indicative
- RS Stock No.:
- 316-280
- Mfr. Part No.:
- TST434B-AAB1AABNQ
- Brand:
- Endress+Hauser
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Endress+Hauser | |
| Sensor Type | RTD | |
| Minimum Temperature Sensed | -50°C | |
| Maximum Temperature Sensed | +150°C | |
| Number Of Wires | 2 | |
Select all | ||
|---|---|---|
Brand Endress+Hauser | ||
Sensor Type RTD | ||
Minimum Temperature Sensed -50°C | ||
Maximum Temperature Sensed +150°C | ||
Number Of Wires 2 | ||
- COO (Country of Origin):
- IT
Endress+Hauser iTHERM ModuLine TST434B
Rugged RTD for accurate outdoor and indoor ambient temperature monitoring
The iTHERM ModuLine TST434B is a weather-proof, modular RTD thermometer designed for ambient temperature monitoring between -50 °C and 150 °C (-58 °F and 302 °F).
It houses state-of-the-art temperature transmitters that provide superior measurement performance compared to directly wired sensors. Compatible Endress+Hauser transmitters offer a wide range of outputs and communication protocols, including 4-20 mA, IO-Link or Ethernet-APL for seamless integration into various control systems.
The device is available in two rugged housing variants (up to IP66/68) for reliable operation even in challenging environments.
Typical applications include ambient temperature monitoring around piping and machinery, in factory and production halls, laboratories, greenhouses, control cabinets, server rooms, drying and cooling rooms.
It houses state-of-the-art temperature transmitters that provide superior measurement performance compared to directly wired sensors. Compatible Endress+Hauser transmitters offer a wide range of outputs and communication protocols, including 4-20 mA, IO-Link or Ethernet-APL for seamless integration into various control systems.
The device is available in two rugged housing variants (up to IP66/68) for reliable operation even in challenging environments.
Typical applications include ambient temperature monitoring around piping and machinery, in factory and production halls, laboratories, greenhouses, control cabinets, server rooms, drying and cooling rooms.
Outdoor or indoor ambient temperature measurement
Simple and fast wall mounting
Simple and fast wall mounting
Features & Benefits
Quick and easy wall mounting
Large choice of temperature transmitters with advanced features for easy system integration
4-20 mA analog and advanced digital outputs and communication protocols
Electronics protected from extreme environmental conditions by rugged terminal heads (IP66/68)
Large choice of temperature transmitters with advanced features for easy system integration
4-20 mA analog and advanced digital outputs and communication protocols
Electronics protected from extreme environmental conditions by rugged terminal heads (IP66/68)
