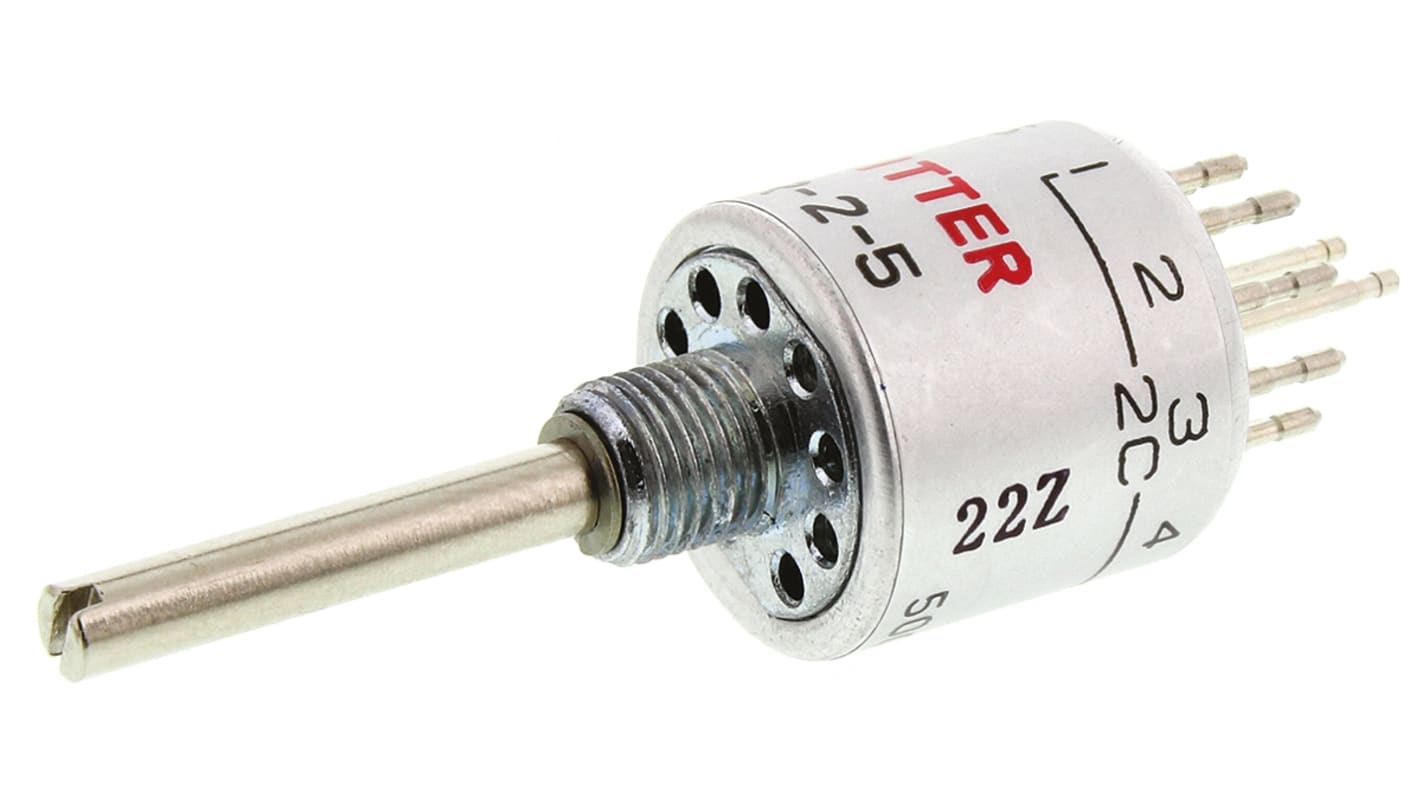

KNITTER-SWITCH, 5 Position DP5T Rotary Switch, 500 mA @ 24 V dc, Solder
- RS Stock No.:
- 711-8397
- Mfr. Part No.:
- MR 2 -5
- Brand:
- KNITTER-SWITCH
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 711-8397
- Mfr. Part No.:
- MR 2 -5
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | DP5T | |
| Contact Current Rating | 500 mA @ 24 V dc | |
| Number of Switch Positions | 5 | |
| Number of Contacts | 2 | |
| Voltage Rating | 125 V ac, 24V dc | |
| Diameter | 6.5mm | |
| Dimensions | 6.5 x 40.8mm | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Application | Test and Instrumentation Switches | |
| Minimum Operating Temperature | -45°C | |
| Case Material | Aluminium | |
| Contact Material | Silver | |
| Height | 40.8mm | |
| Maximum Operating Temperature | +110°C | |
Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration DP5T | ||
Contact Current Rating 500 mA @ 24 V dc | ||
Number of Switch Positions 5 | ||
Number of Contacts 2 | ||
Voltage Rating 125 V ac, 24V dc | ||
Diameter 6.5mm | ||
Dimensions 6.5 x 40.8mm | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
Application Test and Instrumentation Switches | ||
Minimum Operating Temperature -45°C | ||
Case Material Aluminium | ||
Contact Material Silver | ||
Height 40.8mm | ||
Maximum Operating Temperature +110°C | ||
- COO (Country of Origin):
- CN
Knitter Switch Miniature Rotary Switches - MR Series
Panel mount miniature rotary switches
1/4" mounting bush
Nickel plated brass shaft
Silver contacts
Contact resistance <10mΩ
Insulation resistance >100MΩ at 500Vdc
Dielectric strength 1000V 50Hz for 1 minute
Non-shorting contact
1/4" mounting bush
Nickel plated brass shaft
Silver contacts
Contact resistance <10mΩ
Insulation resistance >100MΩ at 500Vdc
Dielectric strength 1000V 50Hz for 1 minute
Non-shorting contact
