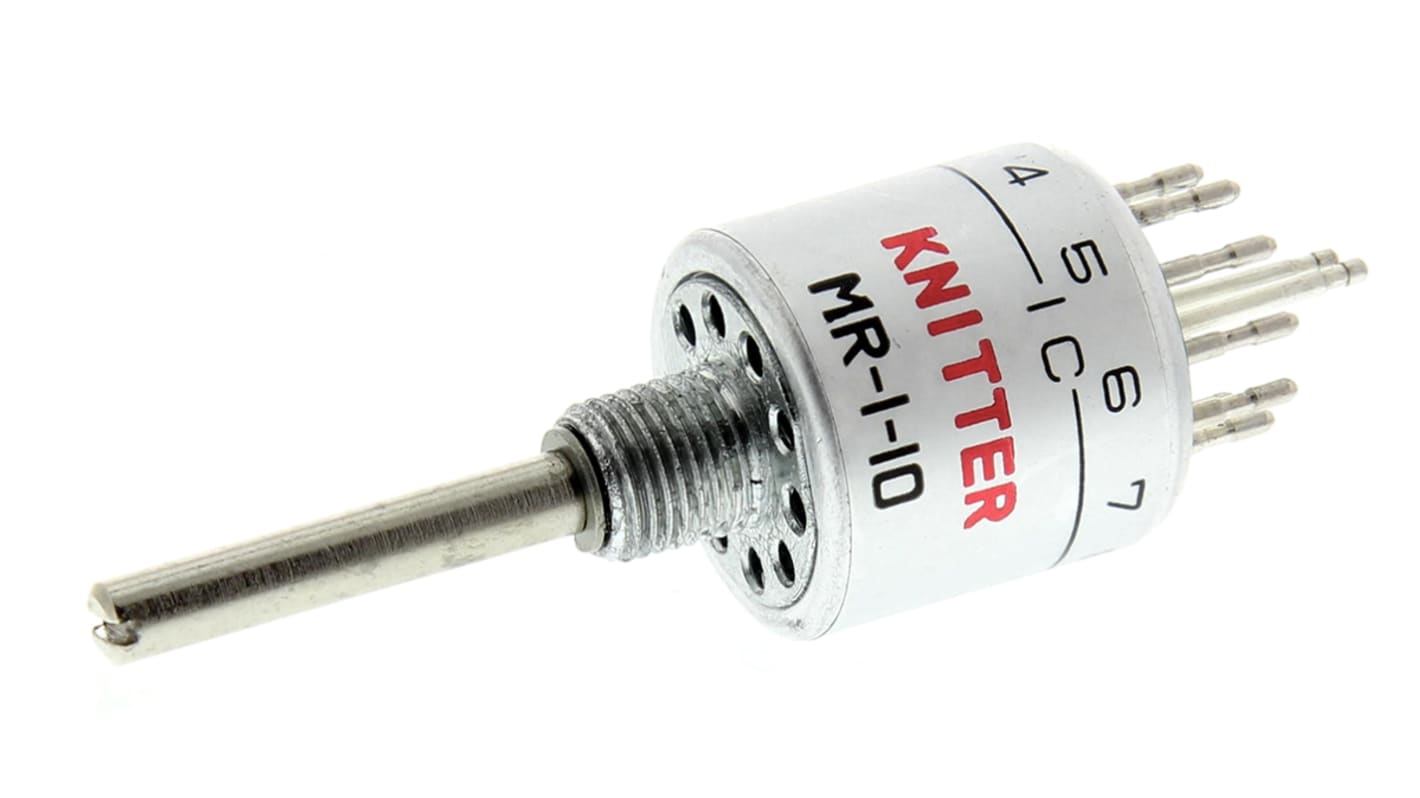

KNITTER-SWITCH, 10 Position SP10T Rotary Switch, 500 mA @ 24 V dc, Solder
- RS Stock No.:
- 711-8394
- Mfr. Part No.:
- MR 1-10
- Brand:
- KNITTER-SWITCH
2 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£18.63
(exc. VAT)
£22.36
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £18.63 |
| 10 - 49 | £14.18 |
| 50 + | £13.80 |
- RS Stock No.:
- 711-8394
- Mfr. Part No.:
- MR 1-10
- Brand:
- KNITTER-SWITCH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Knitter Switch Miniature Rotary Switches - MR Series
Panel mount miniature rotary switches
1/4" mounting bush
Nickel plated brass shaft
Silver contacts
Contact resistance <10mΩ
Insulation resistance >100MΩ at 500Vdc
Dielectric strength 1000V 50Hz for 1 minute
Non-shorting contact
1/4" mounting bush
Nickel plated brass shaft
Silver contacts
Contact resistance <10mΩ
Insulation resistance >100MΩ at 500Vdc
Dielectric strength 1000V 50Hz for 1 minute
Non-shorting contact
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SP10T |
| Contact Current Rating | 500 mA @ 24 V dc |
| Number of Switch Positions | 10 |
| Number of Contacts | 1 |
| Voltage Rating | 125 V ac, 24V dc |
| Diameter | 6.5mm |
| Dimensions | 6.5 x 40.8mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Application | Test and Instrumentation Switches |
| Minimum Operating Temperature | -45°C |
| Case Material | Aluminium |
| Maximum Operating Temperature | +110°C |
| Height | 40.8mm |
| Contact Material | Silver |
