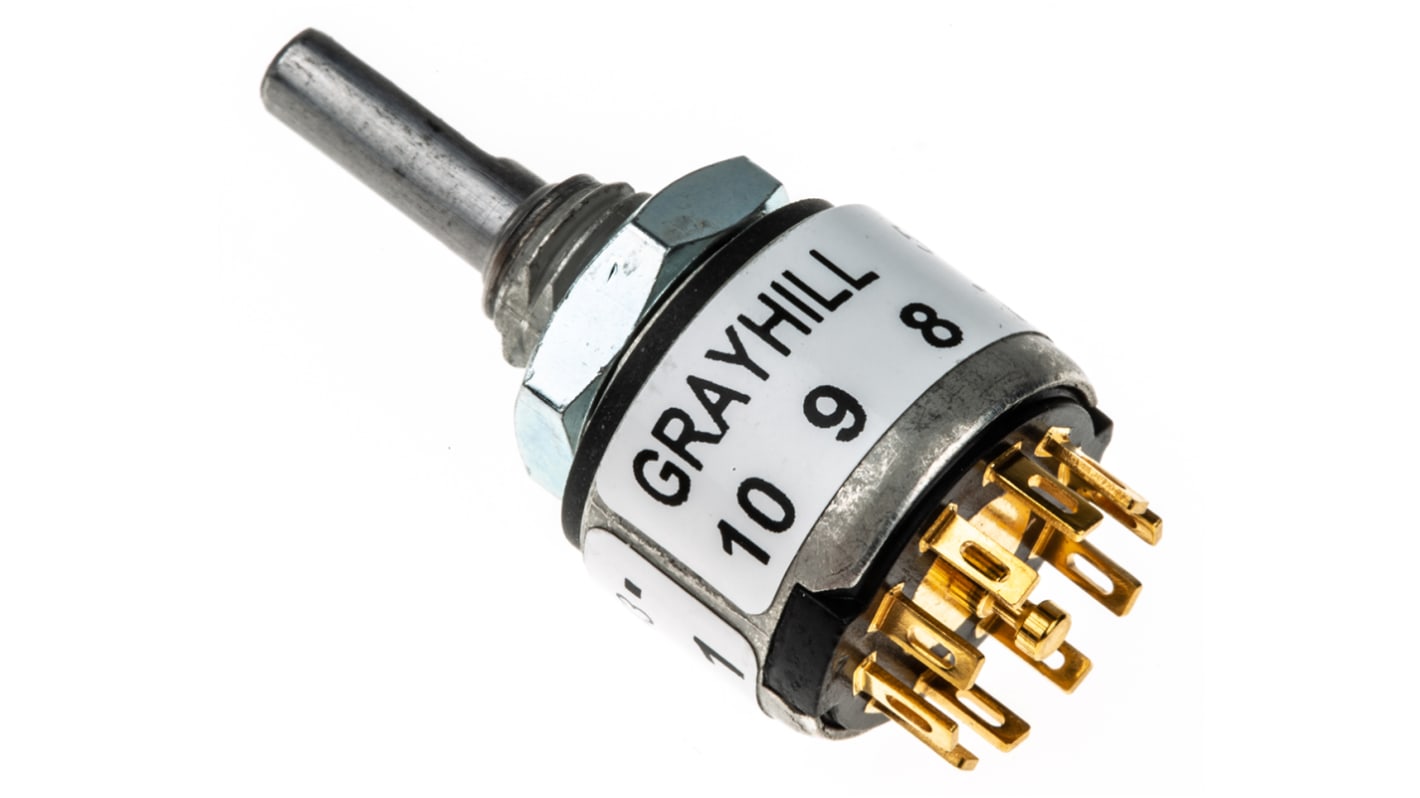

Grayhill, 10 Position SP10T Rotary Switch, 200 mA @ 30 V dc, Solder
- RS Stock No.:
- 440-7691
- Mfr. Part No.:
- 56SD36-01-1-AJN
- Brand:
- Grayhill
Discontinued
- RS Stock No.:
- 440-7691
- Mfr. Part No.:
- 56SD36-01-1-AJN
- Brand:
- Grayhill
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Grayhill | |
| Contact Configuration | SP10T | |
| Contact Current Rating | 200 mA @ 30 V dc | |
| Number of Switch Positions | 10 | |
| Number of Contacts | 1 | |
| Voltage Rating | 600V ac | |
| Diameter | 12.7mm | |
| Dimensions | 12.7 x 28.07mm | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Height | 28.07mm | |
| Contact Material | Silver Over Nickel Plated Brass | |
| Case Material | Tin Zinc Plated Die Cast Zinc | |
| Mechanical Life | 10000Operations | |
| Select all | ||
|---|---|---|
Brand Grayhill | ||
Contact Configuration SP10T | ||
Contact Current Rating 200 mA @ 30 V dc | ||
Number of Switch Positions 10 | ||
Number of Contacts 1 | ||
Voltage Rating 600V ac | ||
Diameter 12.7mm | ||
Dimensions 12.7 x 28.07mm | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Height 28.07mm | ||
Contact Material Silver Over Nickel Plated Brass | ||
Case Material Tin Zinc Plated Die Cast Zinc | ||
Mechanical Life 10000Operations | ||
- COO (Country of Origin):
- US
56 Series Single Deck Rotary Switches
The 56 Series of single deck rotary switches from Grayhill are rugged in design to ensure switch operation for the lifetime of your equipment. The Grayhill 56 series of rotary switch have a variety of circuit options available.
Features:
Requires Minimum Distance Behind the Panel
Shorting and Non-shorting Contacts Available
Available with Solder Lug or PC Mount Terminals
Capable of Switching 200mA
1 to 4 Pole Versions Available
Requires Minimum Distance Behind the Panel
Shorting and Non-shorting Contacts Available
Available with Solder Lug or PC Mount Terminals
Capable of Switching 200mA
1 to 4 Pole Versions Available
