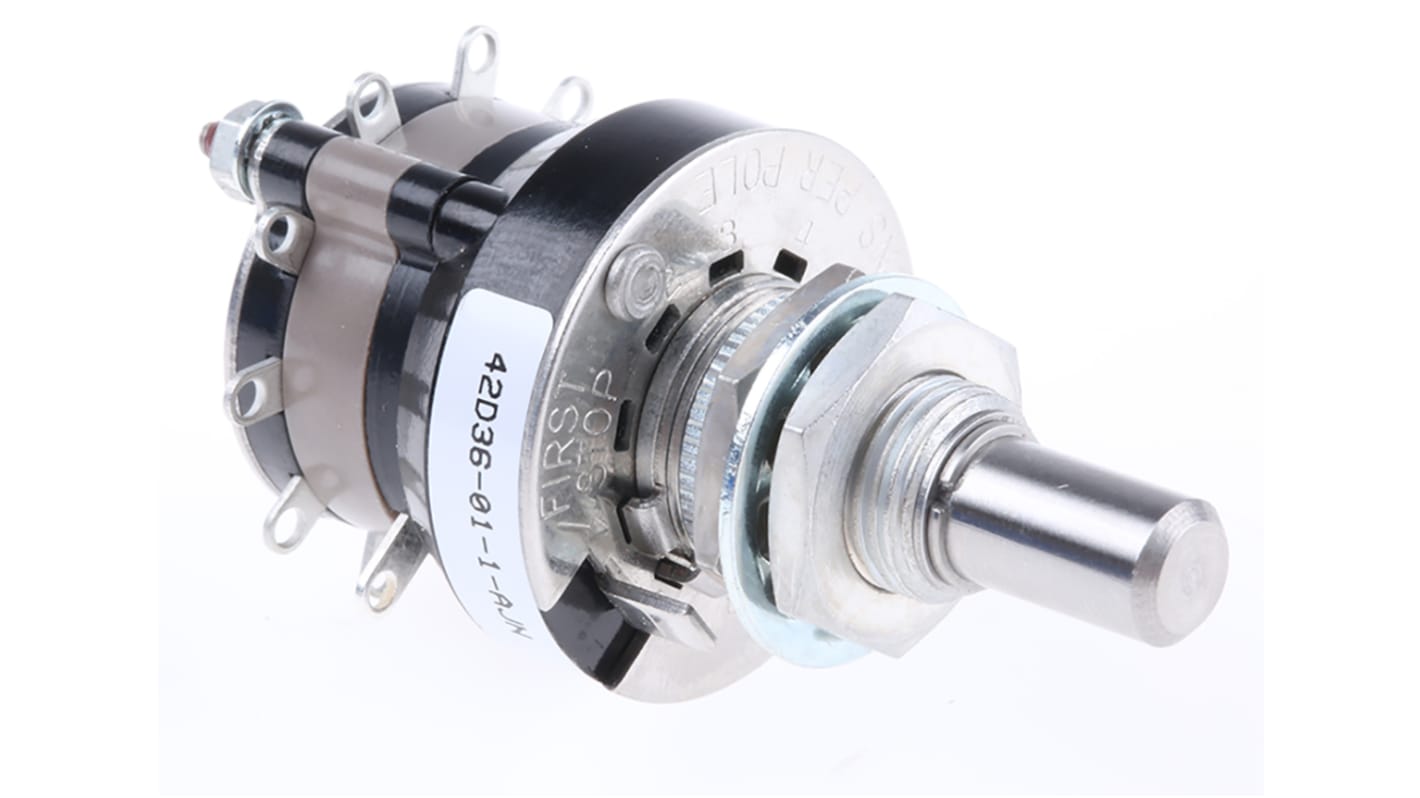

Grayhill, 10 Position SPST Rotary Switch, 1 A @ 24 V dc, Solder
- RS Stock No.:
- 440-7613
- Mfr. Part No.:
- 42D36-01-1-AJN
- Brand:
- Grayhill
Discontinued
- RS Stock No.:
- 440-7613
- Mfr. Part No.:
- 42D36-01-1-AJN
- Brand:
- Grayhill
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Grayhill | |
| Contact Configuration | SPST | |
| Contact Current Rating | 1 A @ 24 V dc | |
| Number of Switch Positions | 10 | |
| Number of Contacts | 1 | |
| Voltage Rating | 115 V ac, 115 V dc | |
| Depth | 26.97mm | |
| Width | 26.97mm | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Contact Material | Silver Alloy | |
| Height | 48.24mm | |
| Mechanical Life | 100000Operations | |
| Angle of Throw | 36° | |
| Select all | ||
|---|---|---|
Brand Grayhill | ||
Contact Configuration SPST | ||
Contact Current Rating 1 A @ 24 V dc | ||
Number of Switch Positions 10 | ||
Number of Contacts 1 | ||
Voltage Rating 115 V ac, 115 V dc | ||
Depth 26.97mm | ||
Width 26.97mm | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
Contact Material Silver Alloy | ||
Height 48.24mm | ||
Mechanical Life 100000Operations | ||
Angle of Throw 36° | ||
- COO (Country of Origin):
- US
42 & 44 Series Adjustable Stop Switches
The 42 & 44 Series of Multi-Deck rotary switches from Grayhill are rugged in design to ensure switch operation for the lifetime of your equipment. The Grayhill 42 & 44 series rotary switches have a variety of circuit options available.
Features:
Enclosed rotary switches with adjustable stops
Capable of switching 1 Amp
1 to 6 poles per deck
1 to 10 Deck Versions Available
The easily inserted stop pins allows selection of positions
Military Qualified Versions Available
Shorting or Non-Shorting Options
Enclosed rotary switches with adjustable stops
Capable of switching 1 Amp
1 to 6 poles per deck
1 to 10 Deck Versions Available
The easily inserted stop pins allows selection of positions
Military Qualified Versions Available
Shorting or Non-Shorting Options
