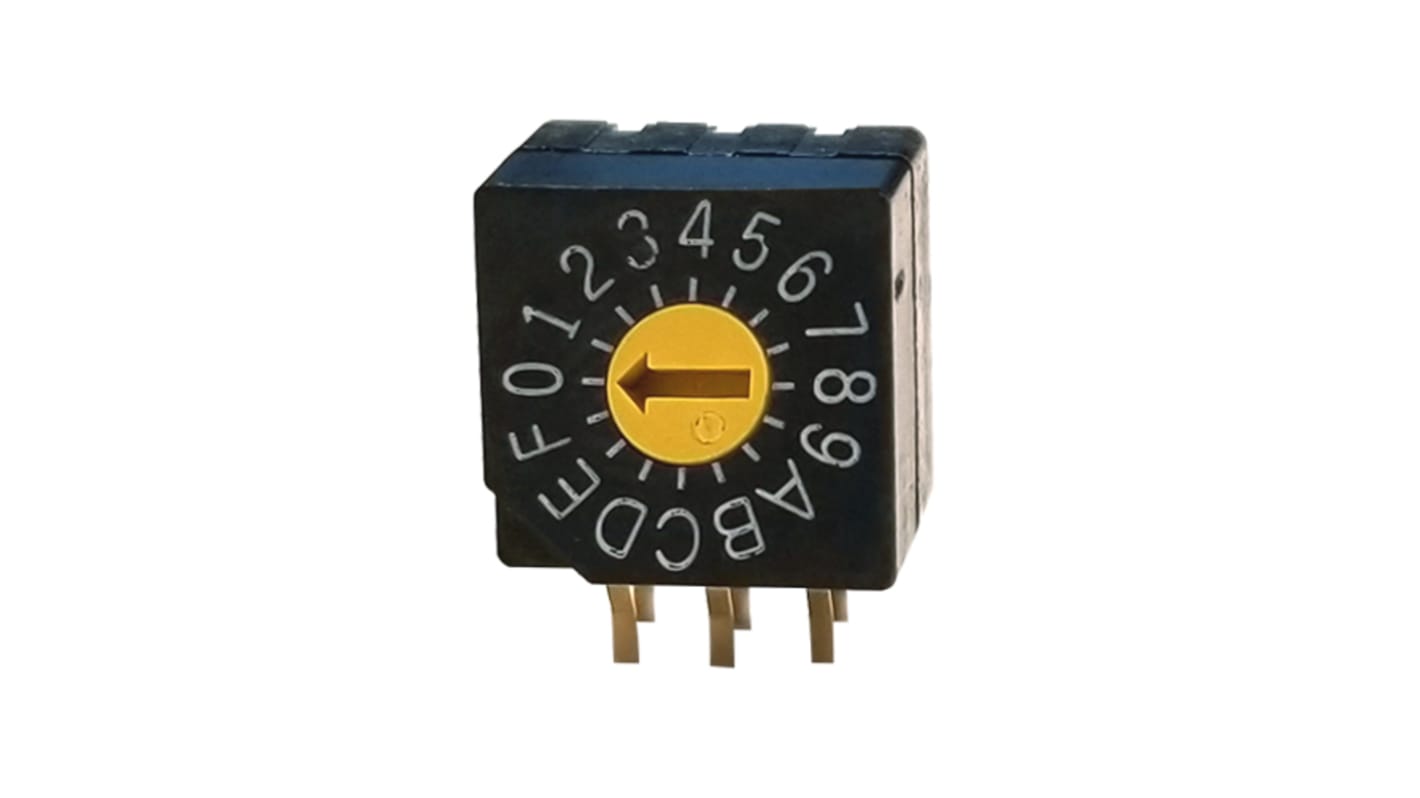

Nidec Components SD-1000, 16 Position, Hexadecimal Rotary Switch, 100 mA, Pin
- RS Stock No.:
- 244-4259
- Mfr. Part No.:
- SD-1011
- Brand:
- Nidec Components
Save 6% when you buy 10 units
Subtotal (1 pack of 2 units)*
£3.55
(exc. VAT)
£4.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 8 | £1.775 | £3.55 |
10 + | £1.665 | £3.33 |
*price indicative
- RS Stock No.:
- 244-4259
- Mfr. Part No.:
- SD-1011
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nidec Components | |
Series | SD-1000 | |
Contact Current Rating | 100 mA | |
Number of Switch Positions | 16 | |
Voltage Rating | 5V dc | |
Output Coding | Hexadecimal | |
Terminal Type | Pin | |
Select all | ||
---|---|---|
Brand Nidec Components | ||
Series SD-1000 | ||
Contact Current Rating 100 mA | ||
Number of Switch Positions 16 | ||
Voltage Rating 5V dc | ||
Output Coding Hexadecimal | ||
Terminal Type Pin | ||
- COO (Country of Origin):
- CN
The NIDEC COPAL ELECTRONICS SD-1000 series rotary coded switch has Low profile of 3.9 mm which makes it perfect for high density board mounting applications.
RoHS compliant
Fine click with metallic spring
Gold plated contact provides excellent reliability
Cross and minus slot are available
Fine click with metallic spring
Gold plated contact provides excellent reliability
Cross and minus slot are available
