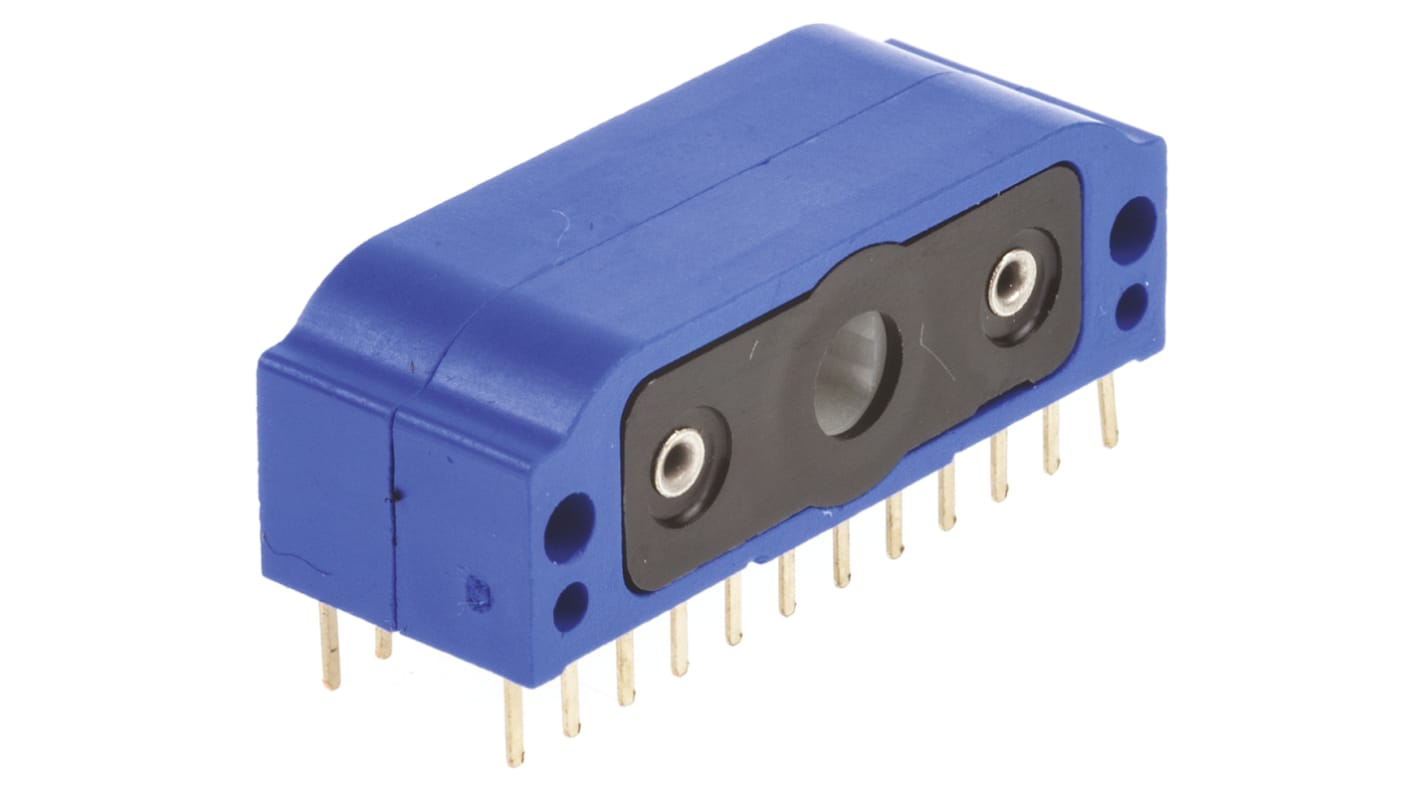

Elektro Bauelemente Gmbh, 6 Position DP6T Rotary Switch, 200 mA @ 115 V, Through Hole
- RS Stock No.:
- 327-709
- Mfr. Part No.:
- 2 POLE 6 WAY PCB STACKABLE WAFER SWITCH
- Brand:
- Elektro Bauelemente Gmbh
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£20.19
(exc. VAT)
£24.23
(inc. VAT)
- RS Stock No.:
- 327-709
- Mfr. Part No.:
- 2 POLE 6 WAY PCB STACKABLE WAFER SWITCH
- Brand:
- Elektro Bauelemente Gmbh
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Elektro Bauelemente Gmbh | |
| Contact Configuration | DP6T | |
| Contact Current Rating | 200 mA @ 115 V | |
| Number of Switch Positions | 6 | |
| Number of Contacts | 2 | |
| Voltage Rating | 115V ac | |
| Depth | 46mm | |
| Width | 30mm | |
| Dimensions | 30 x 46 x 9.8mm | |
| Mounting Type | Panel Mount | |
| Mounting Hole Size | 7.2mm | |
| Terminal Type | Through Hole | |
| Application | Electromechanical | |
| Height | 9.8mm | |
| Minimum Operating Temperature | -40°C | |
| Actuator Colour | Blue | |
| Maximum Operating Temperature | +85°C | |
| Illuminated | No | |
| Mechanical Life | 25000Operations | |
| Contact Material | Gold Plated Copper | |
Select all | ||
|---|---|---|
Brand Elektro Bauelemente Gmbh | ||
Contact Configuration DP6T | ||
Contact Current Rating 200 mA @ 115 V | ||
Number of Switch Positions 6 | ||
Number of Contacts 2 | ||
Voltage Rating 115V ac | ||
Depth 46mm | ||
Width 30mm | ||
Dimensions 30 x 46 x 9.8mm | ||
Mounting Type Panel Mount | ||
Mounting Hole Size 7.2mm | ||
Terminal Type Through Hole | ||
Application Electromechanical | ||
Height 9.8mm | ||
Minimum Operating Temperature -40°C | ||
Actuator Colour Blue | ||
Maximum Operating Temperature +85°C | ||
Illuminated No | ||
Mechanical Life 25000Operations | ||
Contact Material Gold Plated Copper | ||
- COO (Country of Origin):
- DE
PCB Stackable Wafers and Spacers Switches
This selection of flat switches for direct soldering to printed circuit boards are low profile, with a mounting height of less than 10.4mm. The rotary wafer switches and spacers are stackable up to five wafers per switch, and can be used in 24 pin IC sockets.
The 'spacers' contain a selection of items: 10 spacers, 2 front insulators, 1 rear driver shafts, 1 retaining strap, 2 tie rods and 2 push-on fixings.
The 'spacers' contain a selection of items: 10 spacers, 2 front insulators, 1 rear driver shafts, 1 retaining strap, 2 tie rods and 2 push-on fixings.
