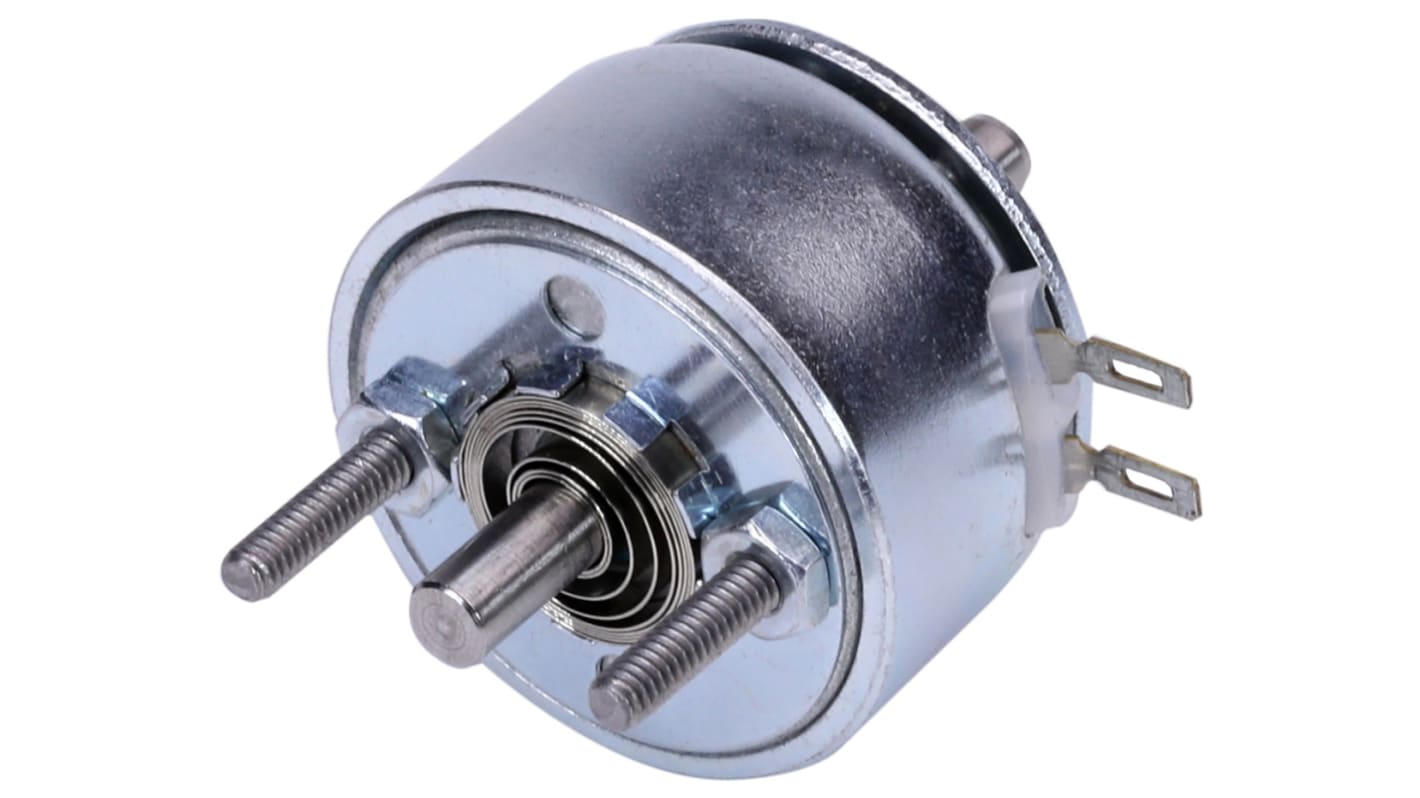

45° Rotary Solenoid, 33.3 mm Diameter, 25%, 40W, 28 V dc
- RS Stock No.:
- 173-6480
- Mfr. Part No.:
- 810-282-330
- Brand:
- Johnson Electric
Discontinued
- RS Stock No.:
- 173-6480
- Mfr. Part No.:
- 810-282-330
- Brand:
- Johnson Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Johnson Electric | |
| Maximum Rotary Stroke | 45° | |
| Action | Rotary | |
| Duty Cycle | 25% | |
| Diameter | 33.3 mm | |
| Length | 47.55mm | |
| Weight | 113.4g | |
| Closed Power Continuous | 40W | |
| Supply Voltage | 28 V dc | |
| Wire Size | 30AWG | |
| Series | 3B | |
| Coil Resistance | 18.4Ω | |
| Select all | ||
|---|---|---|
Brand Johnson Electric | ||
Maximum Rotary Stroke 45° | ||
Action Rotary | ||
Duty Cycle 25% | ||
Diameter 33.3 mm | ||
Length 47.55mm | ||
Weight 113.4g | ||
Closed Power Continuous 40W | ||
Supply Voltage 28 V dc | ||
Wire Size 30AWG | ||
Series 3B | ||
Coil Resistance 18.4Ω | ||
- COO (Country of Origin):
- US
Rotary solenoids are electromechanical devices that convert linear motion to rotary motion by virtue of three ball bearings that travel down inclined raceways. When the coil is energized, the armature assembly is pulled towards the stator and rotated through an arc determined by the coining of the raceways. These extremely high speed actuation devices provide very long life operation for the most challenging applications. With operating life up to fifty million cycles, a wide variety of sizes and custom engineering for life, speed, environmental conditions and torque requirements, the Rotary DC solenoid is ideal for a variety of markets and applications including door lock, vending machines, industrial automation and medical diagnostic equipment.
The most extensive rotary solenoid line in the industry
