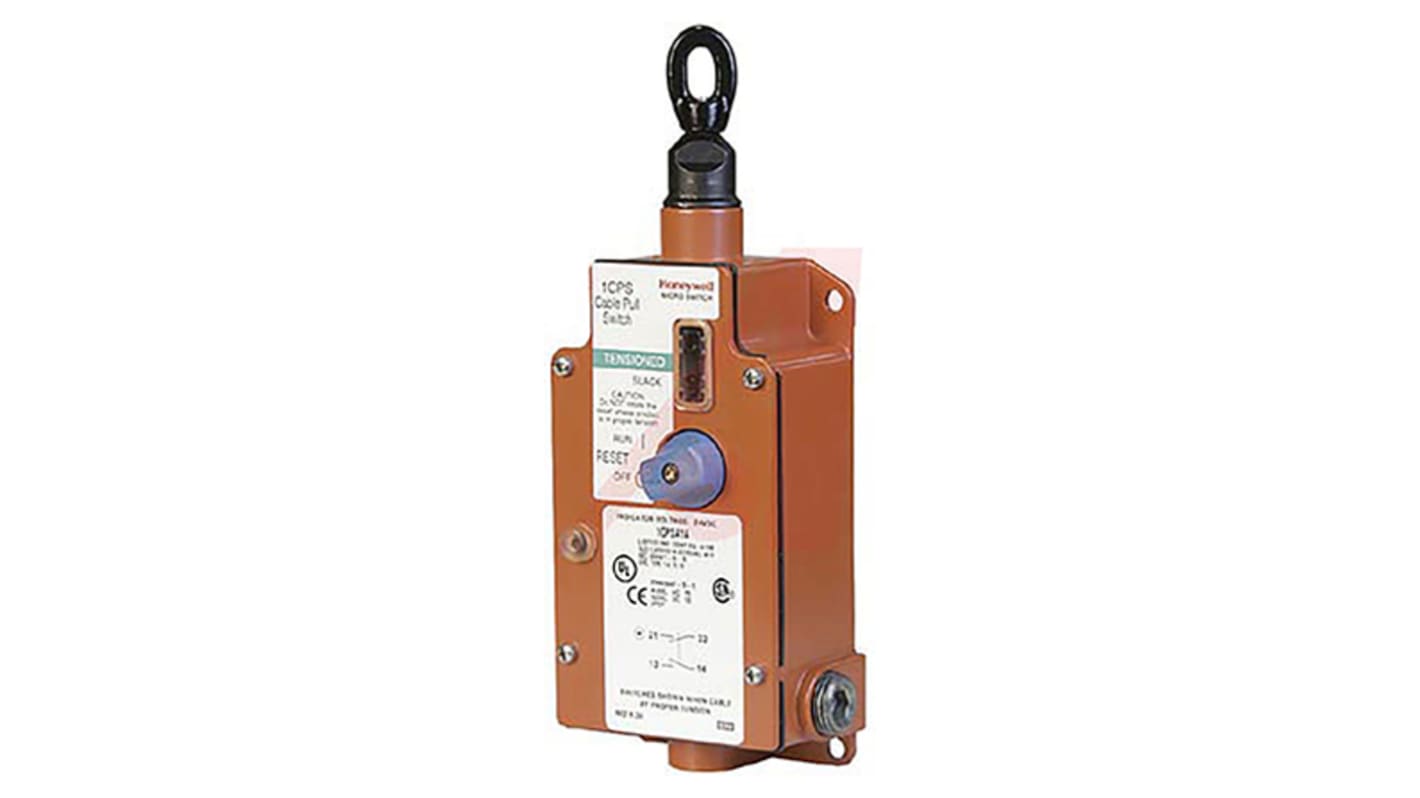

Honeywell 1CPS Rope Pull Switch, 76m, NO/NC, Straight
- RS Stock No.:
- 820-3317
- Mfr. Part No.:
- 1CPSA1
- Brand:
- Honeywell
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£158.54
(exc. VAT)
£190.25
(inc. VAT)
- RS Stock No.:
- 820-3317
- Mfr. Part No.:
- 1CPSA1
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Normal State Configuration | NO/NC | |
| Cable Length | 76m | |
| Mounting Orientation | Straight | |
| IP Rating | IP67 | |
| Series | 1CPS | |
| Length | 172.72mm | |
| Width | 99.06mm | |
| Depth | 62.2mm | |
| Housing Material | Die Cast Zinc | |
| Minimum Operating Temperature | -25°C | |
| Maximum DC Voltage | 250V | |
| Maximum Operating Temperature | +80°C | |
| Conduit Entry | 1/2 in NPT | |
| Maximum Current | 10A | |
| Dimensions | 172.72 x 99.06 x 62.2mm | |
| Maximum AC Voltage | 600V | |
Select all | ||
|---|---|---|
Brand Honeywell | ||
Normal State Configuration NO/NC | ||
Cable Length 76m | ||
Mounting Orientation Straight | ||
IP Rating IP67 | ||
Series 1CPS | ||
Length 172.72mm | ||
Width 99.06mm | ||
Depth 62.2mm | ||
Housing Material Die Cast Zinc | ||
Minimum Operating Temperature -25°C | ||
Maximum DC Voltage 250V | ||
Maximum Operating Temperature +80°C | ||
Conduit Entry 1/2 in NPT | ||
Maximum Current 10A | ||
Dimensions 172.72 x 99.06 x 62.2mm | ||
Maximum AC Voltage 600V | ||
- COO (Country of Origin):
- US
Honeywell 1CPS Cable Pull Safety Switches
The 1CPS cable pull safety switch series is intended for applications such as conveyor runs within a defined system zone with a cable run of up to 76 meters. This means they are more cost effective than using a comparable multiple emergency stop push button system.
The internal mechanism is latched by both a push and pull action. This provides extra protection should the cable become slackened or broken over time. A midpoint cable tension window indicates the correct cable tension making it easy to set up. Once the contacts have been switched they must be reset by resetting the cable to the correct tension level and manually rotating the rest knob.
For extra protection a set of auxiliary contacts are switched when the main contact open allowing for monitoring or signalling equipment to be activated such as a flashing beacon. The auxiliary contacts are electrically isolated form the direct acting switch contacts meaning a closed circuit can be maintained even when the main contacts are in the open position.
The internal mechanism is latched by both a push and pull action. This provides extra protection should the cable become slackened or broken over time. A midpoint cable tension window indicates the correct cable tension making it easy to set up. Once the contacts have been switched they must be reset by resetting the cable to the correct tension level and manually rotating the rest knob.
For extra protection a set of auxiliary contacts are switched when the main contact open allowing for monitoring or signalling equipment to be activated such as a flashing beacon. The auxiliary contacts are electrically isolated form the direct acting switch contacts meaning a closed circuit can be maintained even when the main contacts are in the open position.
Direct opening actions of normally closed contacts
Choice of 1NC/1NO, 2NC/2NO or 3NC/1NO, 4NC contact configurations
Typical 76 meter cable span
Single red high intensity LED status indicator light available (24 Vdc or 120 Vdc)
Die cast zinc housing
Both gold plated or silver plated contacts available
Optional hardware packs available
UL, CE, CSA, SIL 3 capable
Choice of 1NC/1NO, 2NC/2NO or 3NC/1NO, 4NC contact configurations
Typical 76 meter cable span
Single red high intensity LED status indicator light available (24 Vdc or 120 Vdc)
Die cast zinc housing
Both gold plated or silver plated contacts available
Optional hardware packs available
UL, CE, CSA, SIL 3 capable
