Renold 16B-1 Connecting Link Steel Roller Chain Link
- RS Stock No.:
- 146-3773
- Mfr. Part No.:
- SD16B1S26I
- Brand:
- Renold
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Bag of 5
£15.32
(exc. VAT)
£18.38
(inc. VAT)
- RS Stock No.:
- 146-3773
- Mfr. Part No.:
- SD16B1S26I
- Brand:
- Renold
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renold | |
| Chain Type | 16B-1 | |
| Mechanical Link Type | Connecting Link | |
| Material | Steel | |
Select all | ||
|---|---|---|
Brand Renold | ||
Chain Type 16B-1 | ||
Mechanical Link Type Connecting Link | ||
Material Steel | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN

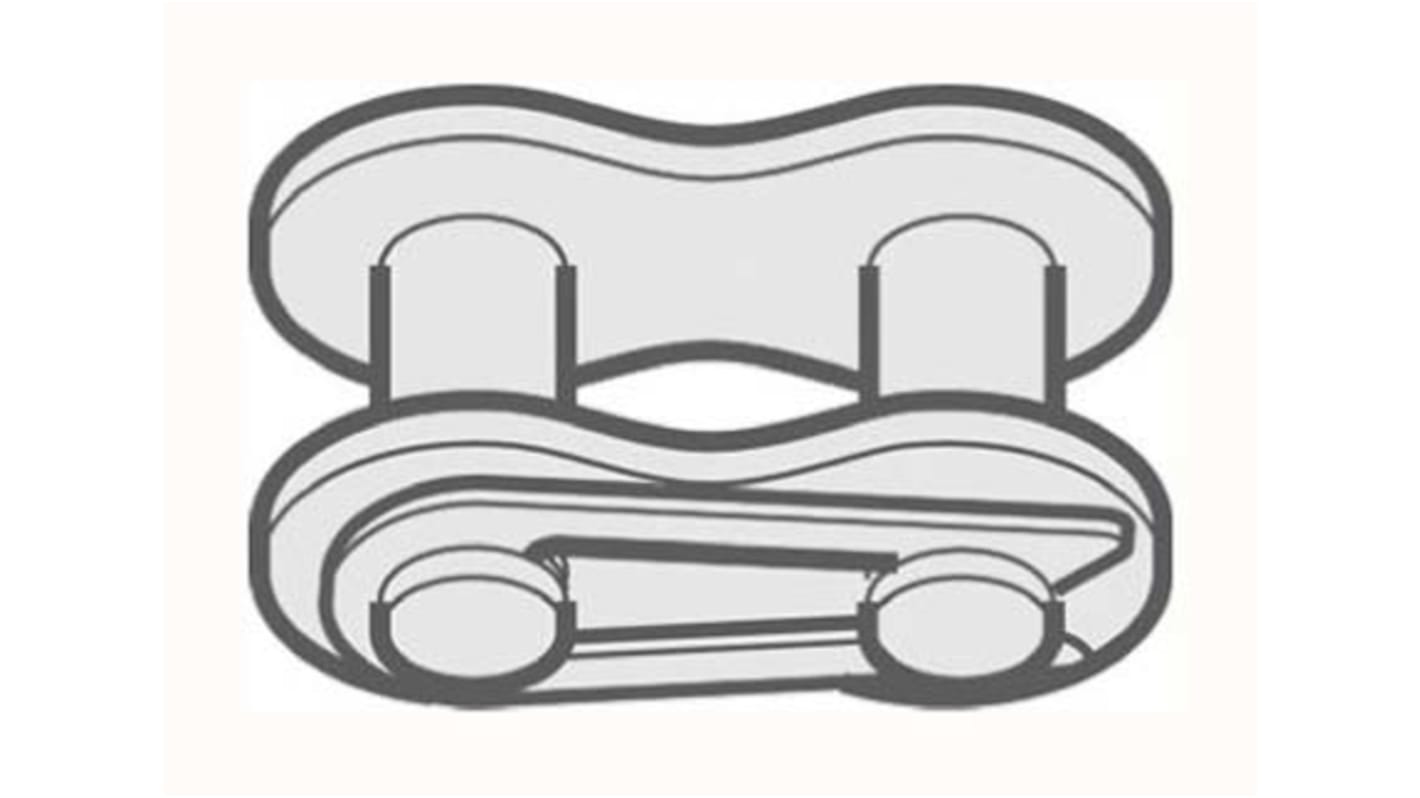

Renold SD Simplex Connecting link (No. 26)
Renold SD Simplex Connecting link (No. 26) supplied with two connecting pins riveted onto an outer plate. The clearance fit connecting plate being secured by a spring clip, which snaps into the grooves of the protruding pins.
Features and Benefits
Great range of sizes
Excellent quality making them wear and fatigue resistant
Product Application Information
These chain links have been designed for machinery which is involved in construction and requires chain that can cope with heavy-duty applications. The products are fail-safe to ensure optimum efficiency and the safety of the machinery’s operators.
Renold designs and manufactures roller chains for all types of construction machinery including dump trucks, excavators, loaders and fork lifts.
Chain Standards
European standard chains are covered by DIN8187 and ISO606 standards. There are 3 versions:
• Simplex
• Duplex
• Triplex
Pitch size varies between 4 mm to 114.3 mm, with the chain links having a large pin diameter. The chains therefore have better wear resistance due to the bearing area being of a greater size.
The ISO standard has a simple numbering system:
• The first two digits are the pitch size and are measured in 1/16 s of an inch, for example 08 = 8/16
• “B” indicates European Standard
• The suffix indicates the number of strands in a chain
