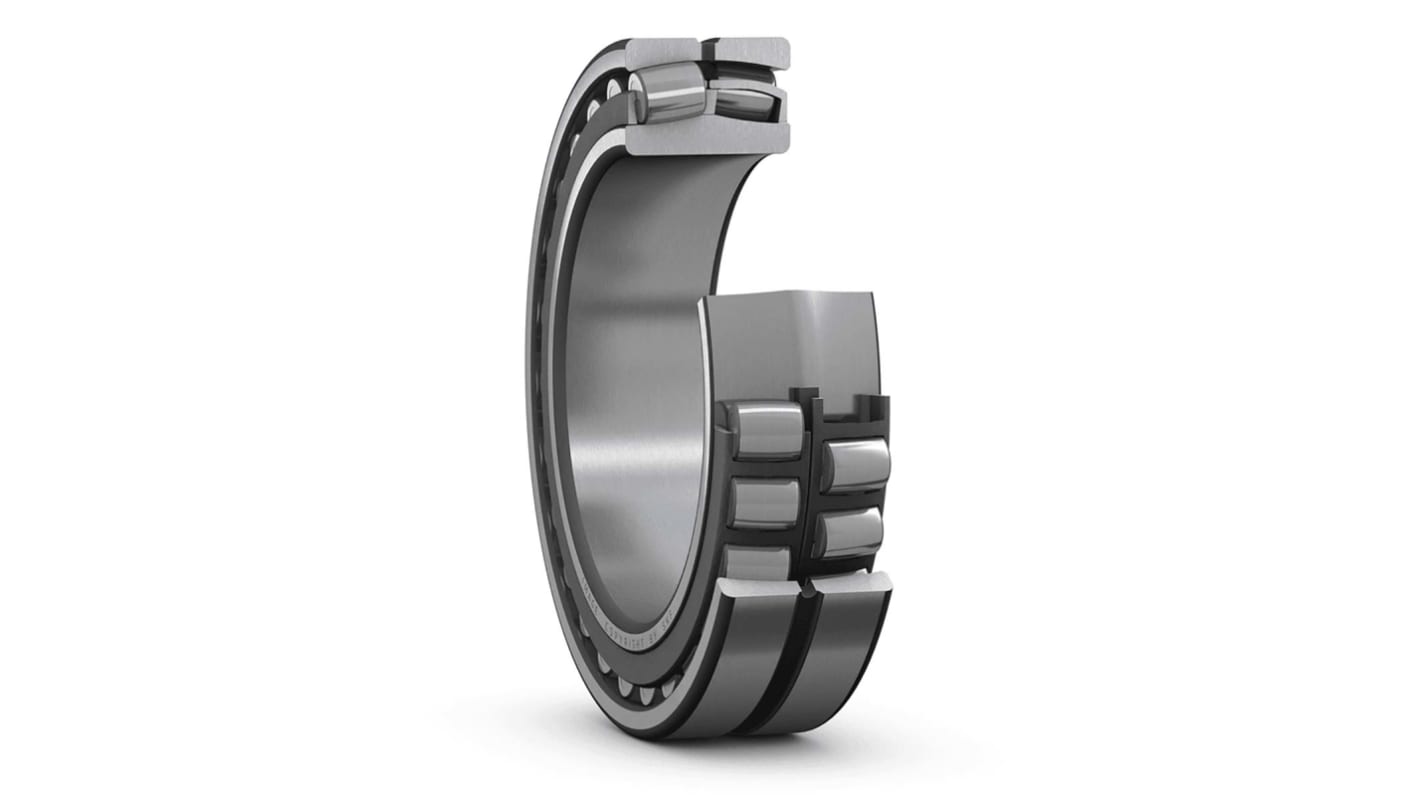

SKF 23940 CC/W33 200mm I.D Spherical Roller Bearing, 280mm O.D
- RS Stock No.:
- 209-4106
- Mfr. Part No.:
- 23940 CC/W33
- Brand:
- SKF
Subtotal (1 unit)*
£1,841.41
(exc. VAT)
£2,209.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,841.41 |
*price indicative
- RS Stock No.:
- 209-4106
- Mfr. Part No.:
- 23940 CC/W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 200mm | |
Outside Diameter | 280mm | |
Roller Bearing Type | Spherical | |
Race Width | 60mm | |
Bore Type | Tapered | |
Material | Steel | |
Static Load Rating | 1040kN | |
Cage Material | Steel | |
Number of Rows | 2 | |
Dynamic Load Rating | 651kN | |
End Type | Open | |
Limiting Speed | 2400rpm | |
Reference Speed | 2200rpm | |
Fatigue Limit Load | 93kN | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 200mm | ||
Outside Diameter 280mm | ||
Roller Bearing Type Spherical | ||
Race Width 60mm | ||
Bore Type Tapered | ||
Material Steel | ||
Static Load Rating 1040kN | ||
Cage Material Steel | ||
Number of Rows 2 | ||
Dynamic Load Rating 651kN | ||
End Type Open | ||
Limiting Speed 2400rpm | ||
Reference Speed 2200rpm | ||
Fatigue Limit Load 93kN | ||
- COO (Country of Origin):
- SE
SKF Spherical Roller Bearing, 200 mm ID, 280 OD - 23940 CC/W33
This SKF spherical roller bearing is designed to support both radial and axial loads. It has two rows of symmetrical rollers and a common sphered outer ring raceway to support radial stress. Two inner-ring raceways are inclined at an angle towards the bearing axis, helping it resist axial shock and misalignment. The bearing is made from stainless steel, so it's strong, durable and resistant to oxidation, ensuring the unit will perform reliably over a long lifespan.
• Twin tapered bore design to manage misalignment and resist axial shock loads
• Spherical roller bearing type can support heavy radial loads
• Steel body material able to tolerate demanding industrial environments
• Spherical roller bearing type can support heavy radial loads
• Steel body material able to tolerate demanding industrial environments
Application Information
• Heavy-duty gearboxes
• Agricultural machinery
• Assembly lines
• Agricultural machinery
• Assembly lines
What safety standards does this product meet?
The bearing was manufactured in conformity with international ANSI/ESD S20.20:2014 and European BS EN 61340-5-1:2007 electrostatic control standards, so it won't interfere with sensitive electronic equipment. It also has a RoHS (restriction of hazardous substances) certification, indicating that it contains only minimal amounts of any potentially harmful materials.
What happens if I align the bearing improperly?
The bearing is designed to accommodate some initial misalignment and will align itself over time. This reduces your installation time and maintenance requirements.
