SKF K 25X30X20 25mm I.D Needle Roller Bearing, 30mm O.D
- RS Stock No.:
- 209-2236
- Mfr. Part No.:
- K 25X30X20
- Brand:
- SKF
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 209-2236
- Mfr. Part No.:
- K 25X30X20
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 25mm | |
| Outside Diameter | 30mm | |
| Roller Bearing Type | Needle | |
| Race Width | 20mm | |
| Bore Type | Parallel | |
| Static Load Rating | 36.5kN | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 20.9kN | |
| End Type | Open | |
| Reference Speed | 16000rpm | |
| Limiting Speed | 18000rpm | |
| Fatigue Limit Load | 4.4kN | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 30mm | ||
Roller Bearing Type Needle | ||
Race Width 20mm | ||
Bore Type Parallel | ||
Static Load Rating 36.5kN | ||
Number of Rows 1 | ||
Dynamic Load Rating 20.9kN | ||
End Type Open | ||
Reference Speed 16000rpm | ||
Limiting Speed 18000rpm | ||
Fatigue Limit Load 4.4kN | ||

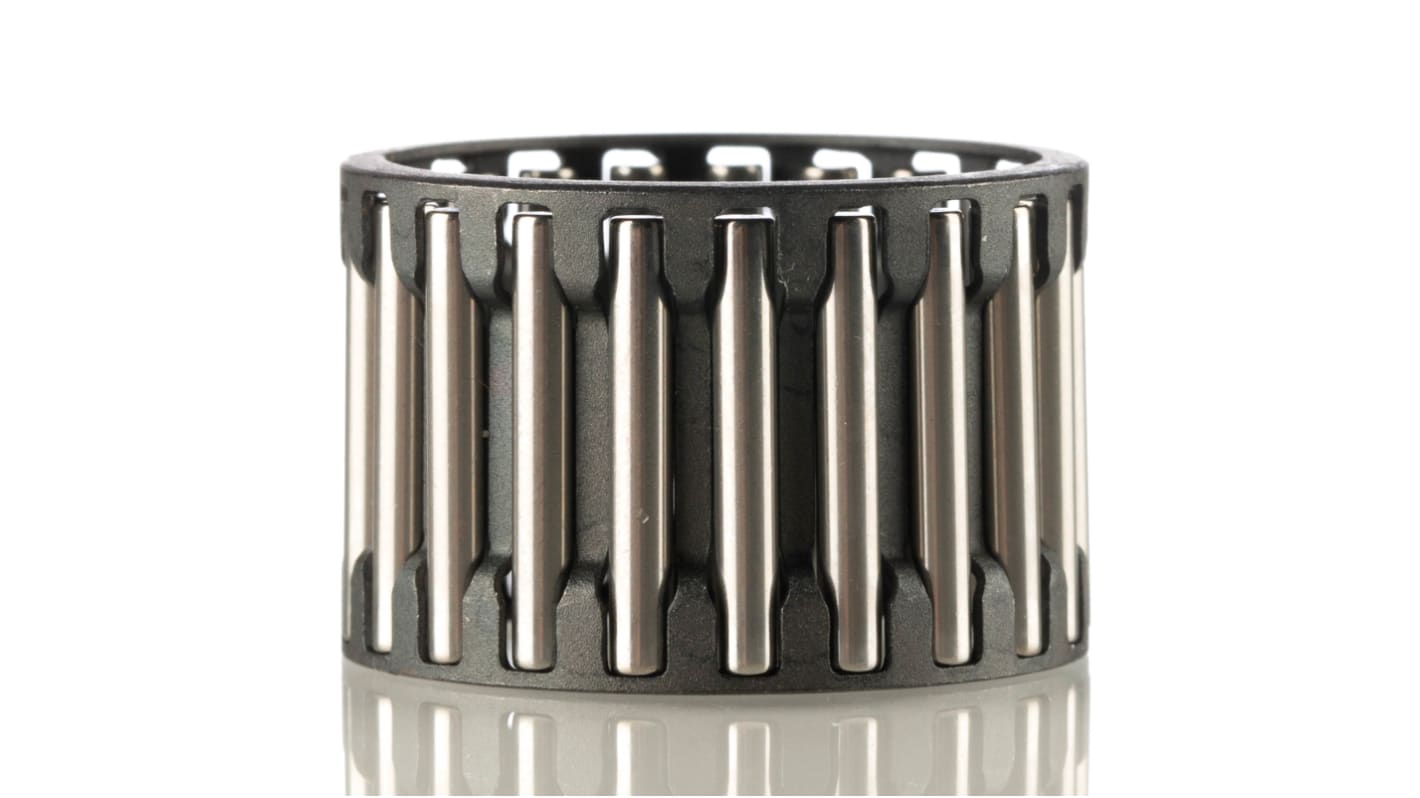

SKF Needle Roller Bearing, 25mm ID, 30mm OD - K 25X30X20
Reduce friction when handling large loads with this needle roller bearing from SKF. Its dynamic load rating of 20.9kN means it can withstand heavy radial loads with minimal friction to keep your system running smoothly. By using the machine shaft itself as a raceway, the bearing occupies minimal space while in use, making it ideal for small-scale applications. At 0.018 kg, it's also lightweight and easy to handle. A reference speed of 16,000r/min means this needle roller bearing is suitable for intensive use.
• Lightweight steel-alloy cage keeps rolling elements evenly spaced to reduce friction, minimising heat generation for operational efficiency
• Stainless steel roller bearings are durable and long-lasting
• Static load rating of 36.5kN for a reliable performance even when subject to sudden loads and forces
• Stainless steel roller bearings are durable and long-lasting
• Static load rating of 36.5kN for a reliable performance even when subject to sudden loads and forces
Applications
• Gas compressors
• Automotive industry
• Power tools
• Piston-based machinery
• Automotive industry
• Power tools
• Piston-based machinery
What's the difference between static and dynamic loads?
In static loads, the force of the load remains constant over time. The force of dynamic loads constantly changes due to an external factor such as movement. Handling dynamic loads poses a greater challenge to bearings, so the dynamic load rating of a bearing is usually lower than its static load rating.
