SKF K 20X24X10 20mm I.D Needle Roller Bearing, 24mm O.D
- RS Stock No.:
- 209-2234
- Mfr. Part No.:
- K 20X24X10
- Brand:
- SKF
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 209-2234
- Mfr. Part No.:
- K 20X24X10
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 20mm | |
| Outside Diameter | 24mm | |
| Roller Bearing Type | Needle | |
| Race Width | 10mm | |
| Material | Steel | |
| Static Load Rating | 12.9kN | |
| Cage Material | Sheet Metal | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 5.58kN | |
| Reference Speed | 20000rpm | |
| Limiting Speed | 22000rpm | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 24mm | ||
Roller Bearing Type Needle | ||
Race Width 10mm | ||
Material Steel | ||
Static Load Rating 12.9kN | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Dynamic Load Rating 5.58kN | ||
Reference Speed 20000rpm | ||
Limiting Speed 22000rpm | ||

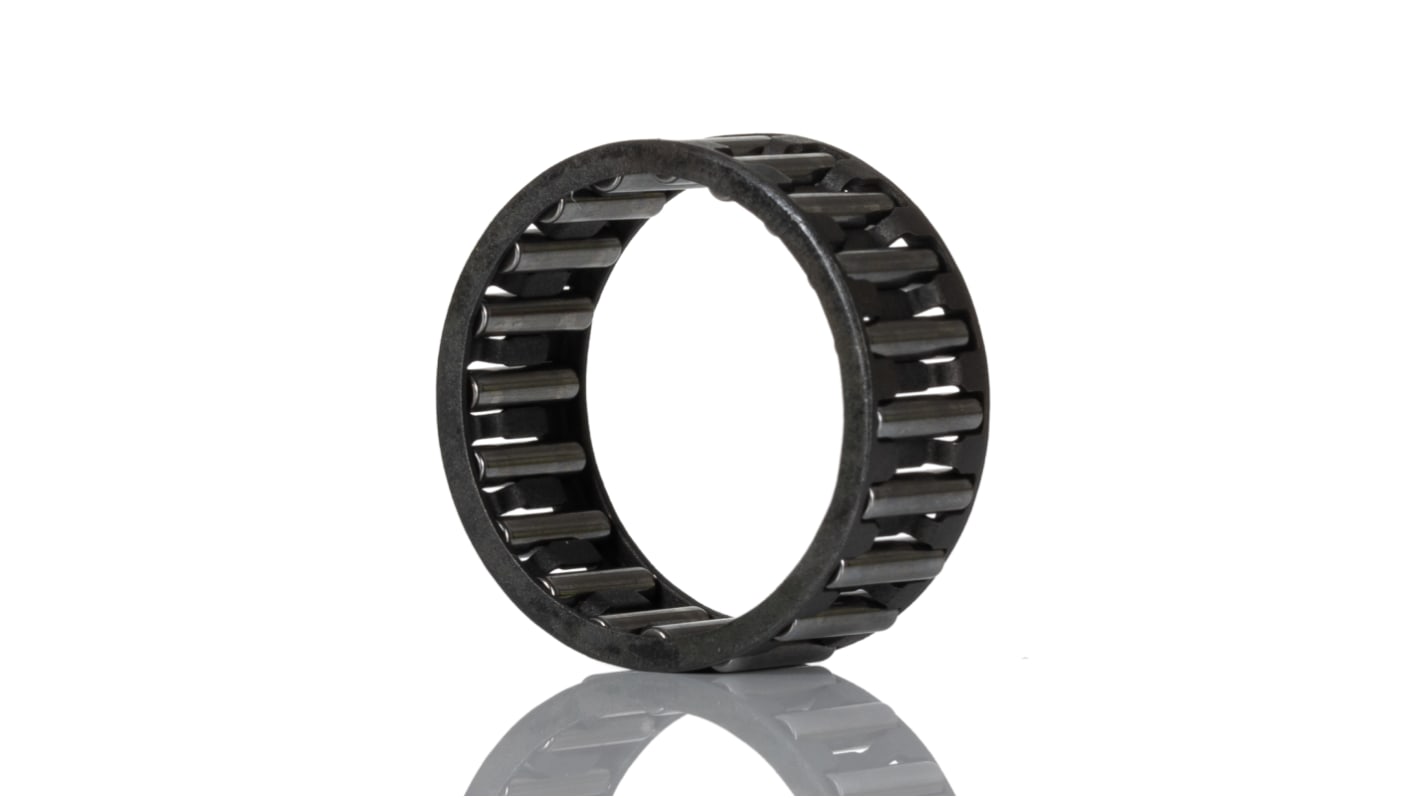

SKF Roller Bearing, Needle Bearing Type, 20mm ID, 24mm OD, Sheet Steel Cage - K 20X24X10
On the lookout for a bearing that can cope with high turning speeds? This single-row roller bearing from SKF will do the trick. It fits neatly onto a 20mm shaft and allows it to turn at rates up to 22,000r/min. Its slim ringless design uses the housing and axle as raceways, so it only takes up 24mm of radial space. Heavy loads are no trouble for this unit, which handles up to 8.58kN when moving and 12.9kN in stationary setups. A tough steel body makes certain this product stands the test of time in heavy-duty settings.
Features & Benefits
• Ultra-light weight of 6.5g to avoid putting strain on your setup
• Integrated cage prevents wear by retaining lubricant to ensure long-lasting and reliable performance
• 10mm width for use in compact setups
• Cylindrical rollers for a high contact surface and even load bearing
• Integrated cage prevents wear by retaining lubricant to ensure long-lasting and reliable performance
• 10mm width for use in compact setups
• Cylindrical rollers for a high contact surface and even load bearing
Applications
• Hydroelectric power generation
• Medical equipment
• Petroleum refinement
• Medical equipment
• Petroleum refinement
What's the maximum operating temperature this bearing can handle?
This hardy roller bearing withstands temperatures of up to +140°C, so it beats the heat in harsh work areas.
