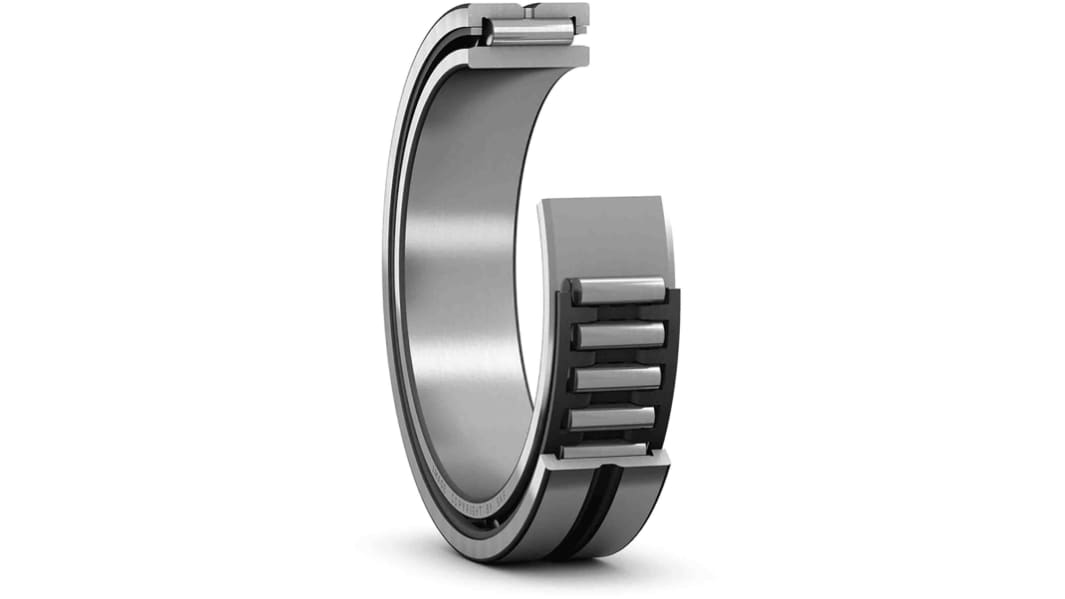

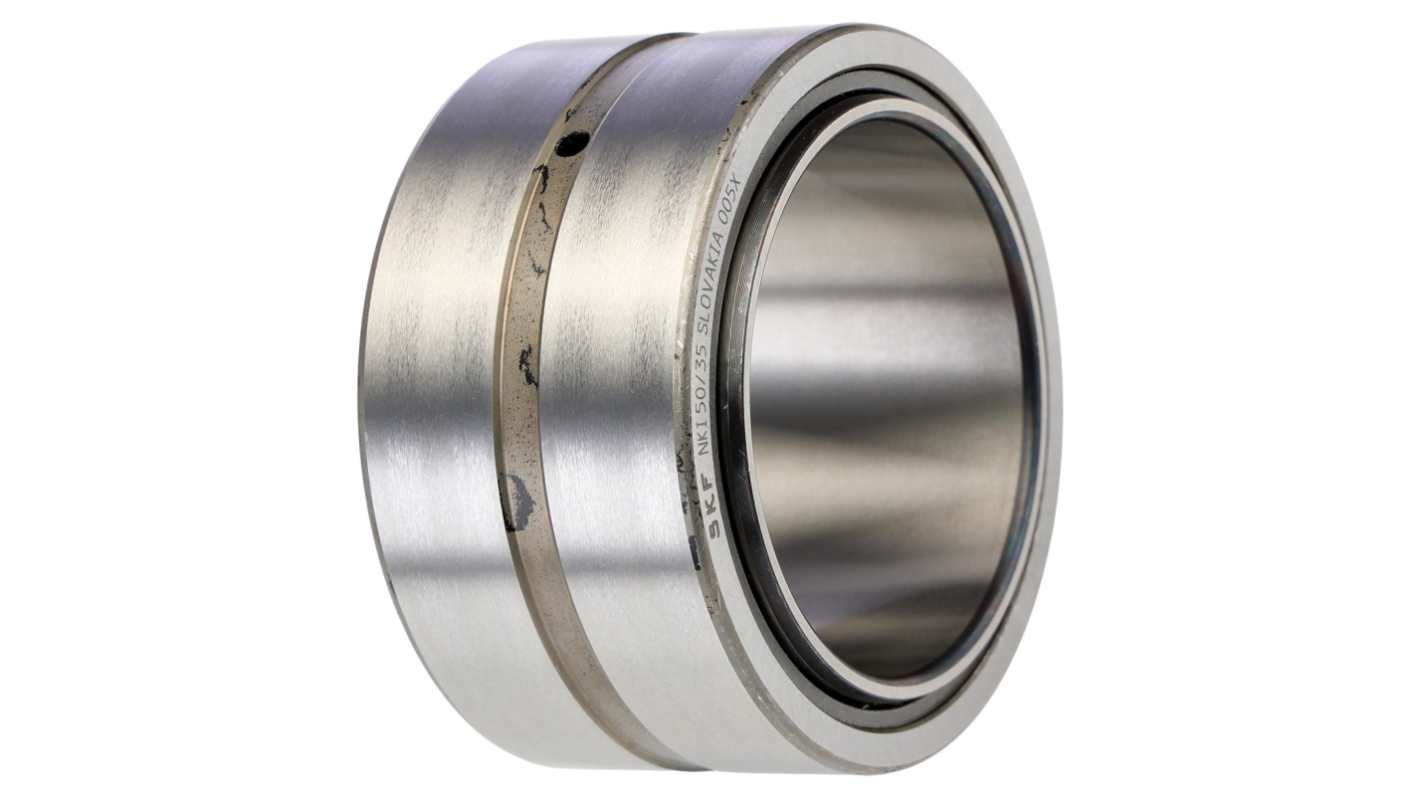

SKF NKI 50/35 50mm I.D Needle Roller Bearing, 68mm O.D
- RS Stock No.:
- 207-8739
- Mfr. Part No.:
- NKI 50/35
- Brand:
- SKF
Subtotal (1 unit)*
£91.97
(exc. VAT)
£110.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £91.97 |
*price indicative
- RS Stock No.:
- 207-8739
- Mfr. Part No.:
- NKI 50/35
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 50mm | |
Outside Diameter | 68mm | |
Roller Bearing Type | Needle | |
Race Width | 35mm | |
Material | Steel | |
Static Load Rating | 122kN | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Dynamic Load Rating | 60kN | |
Limiting Speed | 8500rpm | |
Reference Speed | 7500rpm | |
Fatigue Limit Load | 15.6kN | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 50mm | ||
Outside Diameter 68mm | ||
Roller Bearing Type Needle | ||
Race Width 35mm | ||
Material Steel | ||
Static Load Rating 122kN | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Dynamic Load Rating 60kN | ||
Limiting Speed 8500rpm | ||
Reference Speed 7500rpm | ||
Fatigue Limit Load 15.6kN | ||
SKF Roller Bearing, 50mm Inside Diameter, 35mm Race Width - NKI 50/35
This roller bearing is a high-quality needle roller bearing designed for dependable performance in various applications. It features an inside diameter of 50mm, an outside diameter of 68mm, and a race width of 35mm. Constructed from steel, this product is engineered to provide significant durability and is suitable for high load capacities, making it a reliable choice for both mechanical and electrical systems.
Features & Benefits
• Needle design facilitates high radial load capacity
• Metal cage ensures durability and reliability
• Dynamic load rating of 60kN supports demanding applications
• Operating speeds of up to 8500r/min provide versatility
• Suitable for compact spaces due to narrow profile
• Single-row configuration optimises performance in various environments
• Metal cage ensures durability and reliability
• Dynamic load rating of 60kN supports demanding applications
• Operating speeds of up to 8500r/min provide versatility
• Suitable for compact spaces due to narrow profile
• Single-row configuration optimises performance in various environments
Applications
• Used with automation equipment for precise movement
• Suitable for high-performance printing machinery
• Employed in electric motors for efficient operation
• Ideal for drives and conveyor systems in manufacturing
• Utilised in construction machinery for enhanced load management
• Suitable for high-performance printing machinery
• Employed in electric motors for efficient operation
• Ideal for drives and conveyor systems in manufacturing
• Utilised in construction machinery for enhanced load management
What is the significance of the dynamic load rating?
The dynamic load rating of 60kN indicates the maximum load that the bearing can support while in motion, ensuring reliability in applications with varying operational demands.
How does the needle design impact performance?
The needle design allows for a larger contact area, which enhances load distribution and reduces wear, ultimately extending the bearing's lifespan in demanding settings.
What are the temperature limits for optimal performance?
This bearing is designed to operate effectively within a broad temperature range, ensuring stable performance even under challenging conditions, although specific limits should be reviewed based on application.
Can this bearing be used in high-speed applications?
Yes, with a limiting speed of 8500r/min, it is suitable for high-speed applications, making it versatile for a range of industrial uses.
