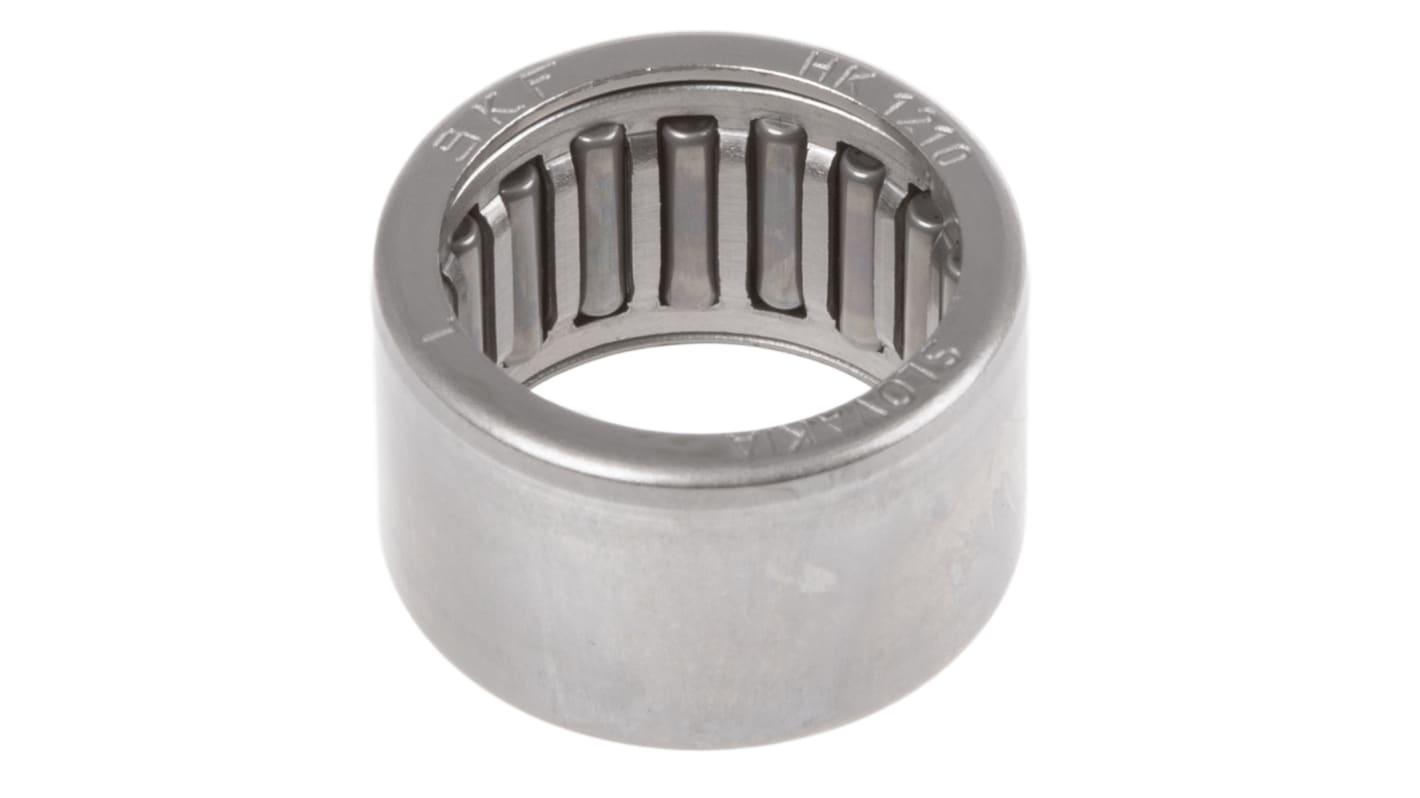

Needle Roller Bearing HK 1210, 12mm I.D, 16mm O.D

  • RS Stock No. 514-164
  • Mfr. Part No. HK 1210
  • Brand SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

SKF Drawn Cup Needle Roller Bearings Series HK

SKF Drawn cup needle roller bearings have a deep drawn, thin-walled outer ring with open ends (indicated by the HK prefix).,They are characterised by very low sectional height and high load carrying capacity.

Generally used directly on the shaft, which is hardened and ground. Can also be combined with an inner ring for shaft that is not hardened
Used when the housing bore cannot be used as a raceway for a needle roller cage assembly, but where a very compact and economic bearing arrangement is required

//media.rs-online.com/t_line/L0514035-01.jpg
//media.rs-online.com/t_line/L0514039-01.gif
Specifications
Attribute Value
Inside Diameter 12mm
Outside Diameter 16mm
Roller Bearing Type Needle
Race Width 10mm
Bore Type Parallel
Material Metal
Static Load Rating 6.4kN
Cage Material Sheet Steel
Number of Rows 1
Dynamic Load Rating 4.84kN
End Type Open
Maximum Speed - Oil 20000rpm
Maximum Speed - Grease 14000rpm
Fatigue Limit Load 710N
49 in stock for FREE next working day delivery
154 available from Europe for delivery within 1 working day(s).
Price Each
£ 3.21
(exc. VAT)
£ 3.85
(inc. VAT)
Units
Per unit
1 - 4
£3.21
5 - 9
£3.09
10 - 24
£3.01
25 +
£2.95
