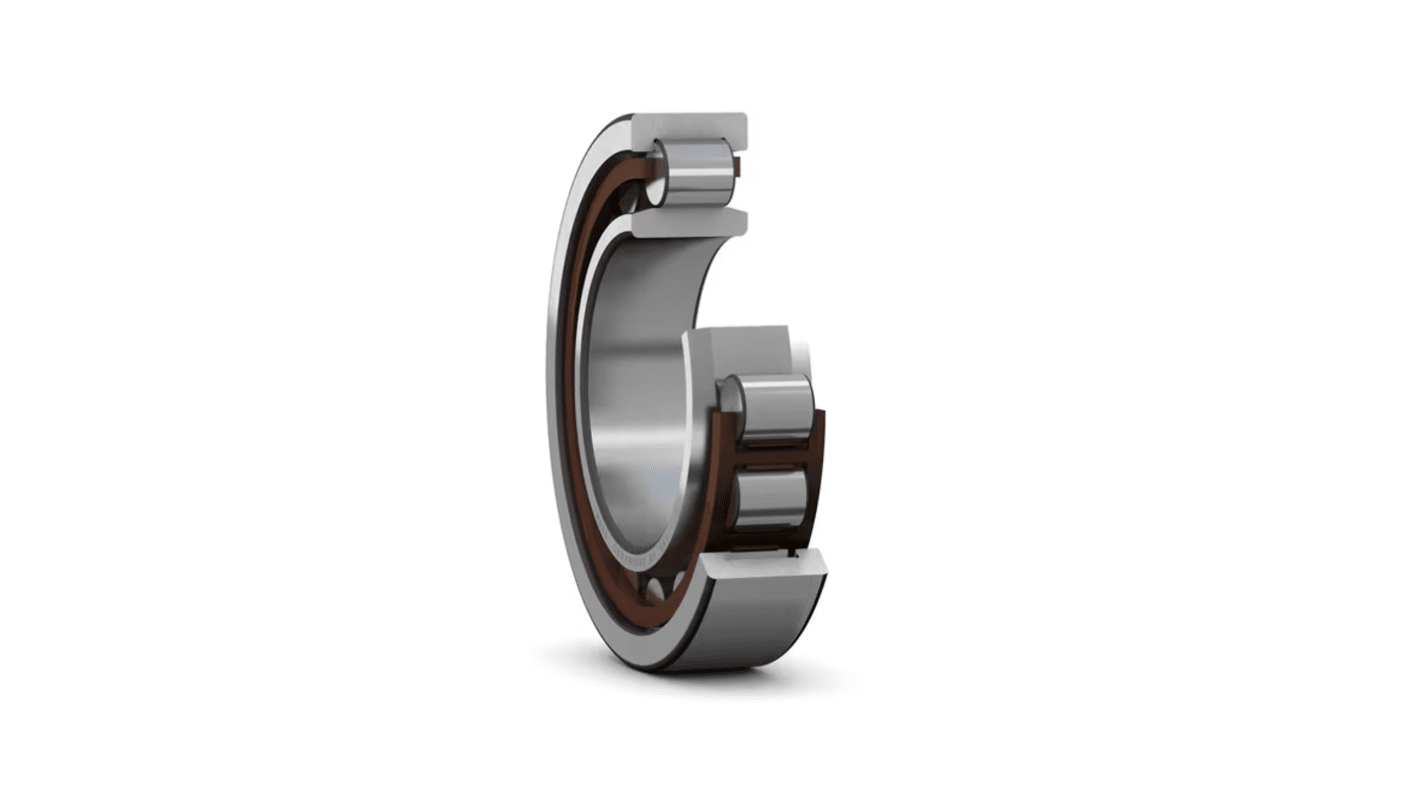

SKF Cylindrical Roller Bearing, 30mm Inside Diameter, 72mm Outside Diameter - NU306ECP

This cylindrical roller bearing is designed for high-speed applications, featuring an inside diameter of 30mm and an outside diameter of 72mm. With a race width of 19mm, it is suitable for various industrial applications where reliability and performance are critical.

Features & Benefits

• Designed for effective operation at reference speeds of 11,000 rpm
• Crafted with a non-metallic cage for reduced friction and noise
• Open type design enables easy installation and maintenance
• One-row configuration optimises space efficiency in machinery

Applications

• Used for high-speed in automation systems
• Suitable for machinery in the mechanical and electrical industries
• Ideal for environments requiring the benefits of a non-metallic cage
• Effective in equipment needing dependable dynamic load capabilities

What load limits should be considered when incorporating this bearing into equipment?

The bearing exhibits a static load rating of 48kN, allowing for robust performance under stationary loads, while the dynamic load rating of 58.5kN is ideal for operations involving movement, ensuring reliability in demanding conditions.

How does the cage material impact the bearing performance?

The non-metallic cage minimises weight and friction, enhancing rotational efficiency. This design feature contributes to quieter operation and improved overall performance in high-speed applications.

What maintenance practices support optimal performance of this bearing?

Regular inspections for wear and debris accumulation will help maintain functionality. Additionally, ensuring proper lubrication can reduce friction and prolong the bearing’s service life, thereby enhancing reliability in various applications.

Single Row - Cylindrical

Typical applications for roller bearings include gearboxes and gear trains. Bearings supplied with instruction leaflet.

Units	Per unit
1 - 4	£53.70
5 - 9	£51.57
10 - 24	£50.49
25 +	£49.42

Select all	Attribute	Value
	Brand	SKF
	Inside Diameter	30mm
	Outside Diameter	72mm
	Roller Bearing Type	Cylindrical
	Race Width	19mm
	Bore Type	Parallel
	Static Load Rating	48kN
	Cage Material	Non-metallic
	Number of Rows	1
	Dynamic Load Rating	58.5kN
	End Type	Open
	Limiting Speed	12000rpm
	Reference Speed	11000rpm
	Fatigue Limit Load	6.2kN

	Select all
	Brand SKF
	Inside Diameter 30mm
	Outside Diameter 72mm
	Roller Bearing Type Cylindrical
	Race Width 19mm
	Bore Type Parallel
	Static Load Rating 48kN
	Cage Material Non-metallic
	Number of Rows 1
	Dynamic Load Rating 58.5kN
	End Type Open
	Limiting Speed 12000rpm
	Reference Speed 11000rpm
	Fatigue Limit Load 6.2kN

SKF NU306ECP 30mm I.D Cylindrical Cylindrical Roller Bearing, 72mm O.D
