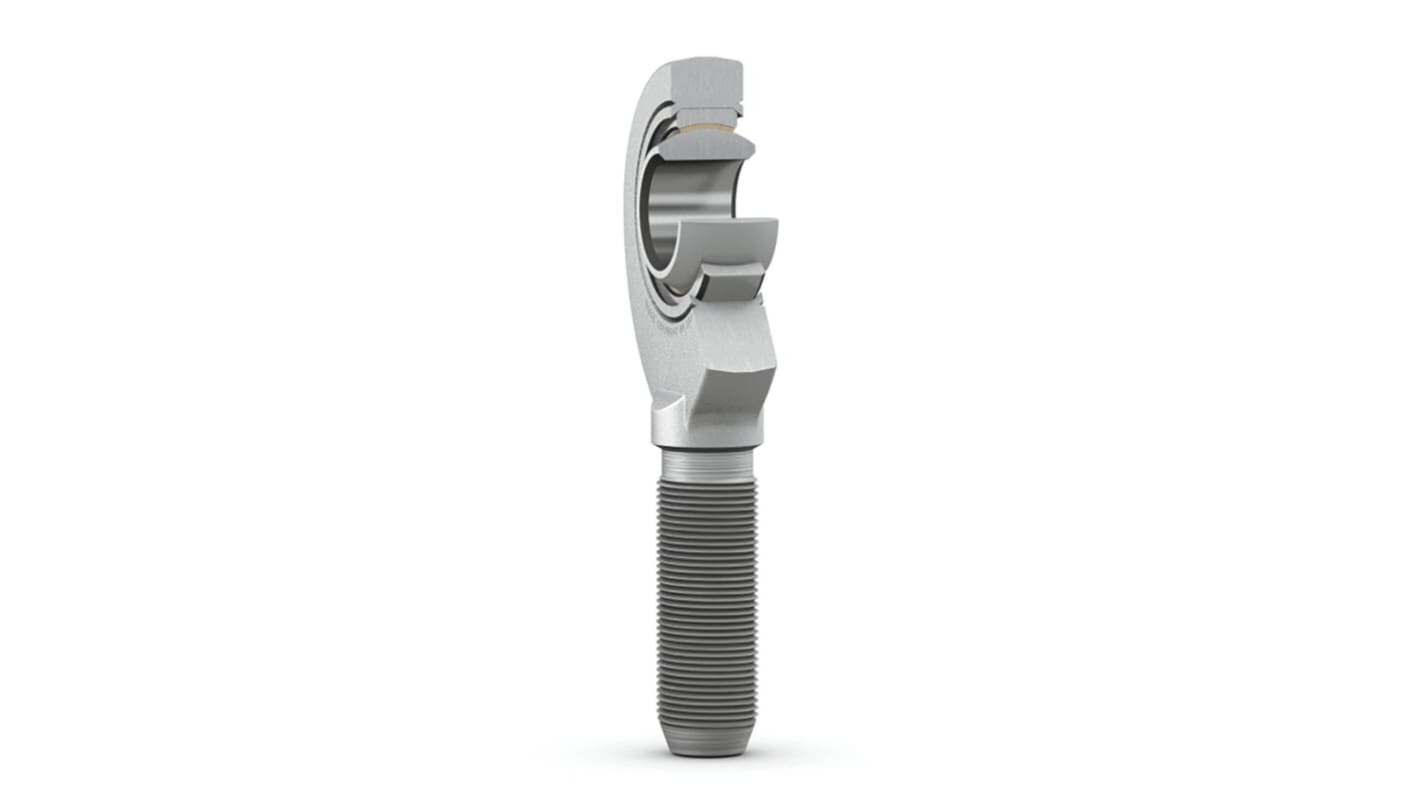

SKF SA M20 x 1.5 Male Steel Rod End, 20mm Bore, 54mm Long, Metric Thread Standard, Male Connection Gender
- RS Stock No.:
- 232-2769
- Mfr. Part No.:
- SA 20 C
- Brand:
- SKF
Subtotal (1 unit)*
£65.44
(exc. VAT)
£78.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £65.44 |
*price indicative
- RS Stock No.:
- 232-2769
- Mfr. Part No.:
- SA 20 C
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Connection Size | M20 x 1.5 Male | |
Bore Size | 20mm | |
Rod End Type | Male Rod End | |
Material | Steel | |
Dynamic Load Rating | 31.5kN | |
Static Load Rating | 51kN | |
Overall Length | 54mm | |
Connection Thread Standard | Metric | |
Connection Gender | Male | |
Manufacturer Series | SA | |
Thread Direction | Right Hand | |
Select all | ||
---|---|---|
Brand SKF | ||
Connection Size M20 x 1.5 Male | ||
Bore Size 20mm | ||
Rod End Type Male Rod End | ||
Material Steel | ||
Dynamic Load Rating 31.5kN | ||
Static Load Rating 51kN | ||
Overall Length 54mm | ||
Connection Thread Standard Metric | ||
Connection Gender Male | ||
Manufacturer Series SA | ||
Thread Direction Right Hand | ||
- COO (Country of Origin):
- DE
SKF Series SA Rod End, M20 x 1.5 Male Connection, 20mm Bore size - SA 20 C
This rod end is a versatile component designed for use in various mechanical applications, especially in automation and machinery. Constructed from high-quality steel, this male rod end features a connection size of M20 x 1.5, a bore size of 20mm, and an overall length of 54mm. It is engineered to effectively bear significant loads, making it suitable for dynamic and static uses.
Features & Benefits
• Ideal for applications requiring male rod end bearings
• High dynamic load rating of 31.5 kN ensures durability
• Static load rating of 51 kN supports heavy machinery operations
• Constructed from steel for superior strength and long-term usability
• Right-hand thread direction allows for easy integration with existing systems
• Metric connection standard facilitates compatibility with various connectors
• High dynamic load rating of 31.5 kN ensures durability
• Static load rating of 51 kN supports heavy machinery operations
• Constructed from steel for superior strength and long-term usability
• Right-hand thread direction allows for easy integration with existing systems
• Metric connection standard facilitates compatibility with various connectors
Applications
• Used in industrial machinery for precise movement control
• Ideal for automation systems requiring robust rod end connections
• Suitable for robotics where high-strength rod end joints are essential
• Commonly applied in engineering solutions needing spherical rod end bearings
• Utilised in construction equipment for reliable load-bearing functions
• Ideal for automation systems requiring robust rod end connections
• Suitable for robotics where high-strength rod end joints are essential
• Commonly applied in engineering solutions needing spherical rod end bearings
• Utilised in construction equipment for reliable load-bearing functions
What are the typical use cases for this type of rod end?
This component is primarily used in industrial machinery, automation systems, and robotics where precise movement and load-bearing capabilities are essential for safe operation.
How does the material choice of steel impact performance?
Steel construction provides significant strength and resilience, enabling the rod end to withstand high dynamic and static loads without deforming, thereby ensuring longevity in demanding applications.
What load ratings should be considered for safe operations?
For safe operation, it is crucial to consider the dynamic load rating of 31.5 kN and a static load rating of 51 kN, as exceeding these limits could lead to failure or compromised performance.
How can the right-hand thread direction affect installation?
The right-hand thread direction allows for straightforward installation and adjustments, ensuring a secure and reliable connection in conjunction with mating components.
What thread standards are applicable for compatibility?
The rod end adheres to metric connection standards, enabling seamless integration with various metric rod end connectors used in many mechanical systems.
