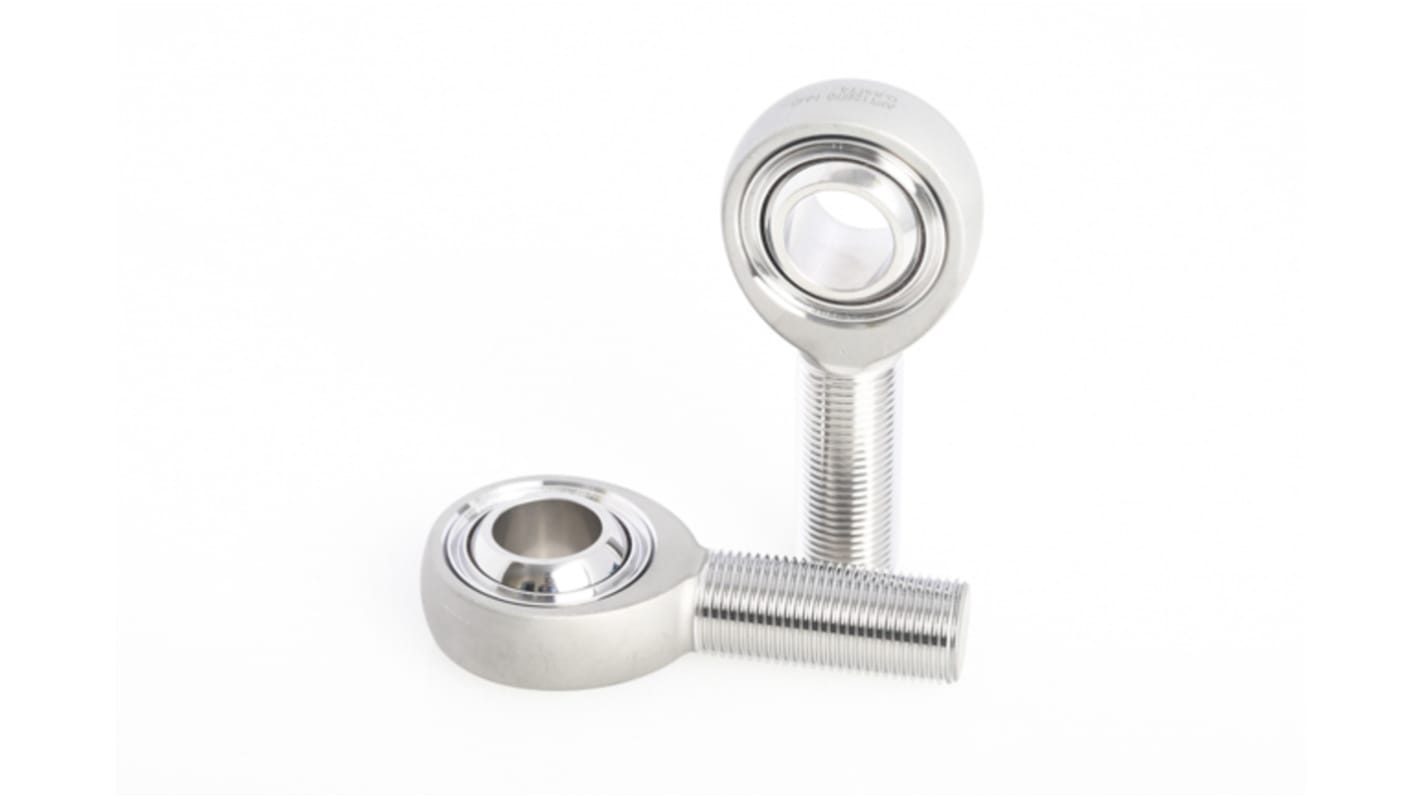

NMB 0.625-18 Male Stainless Steel Rod End, 15.87mm Bore, Male Connection Gender

RS Stock No.:: 185-6506
Mfr. Part No.:: ARTL10E(R)
Brand:: NMB

NMB 0.625-18 Male Stainless Steel Rod End, 15.87mm Bore, Male Connection Gender

View all Rod Ends

Available to back order for despatch 21/05/2024

Added

View Basket

Price Each

£193.71

(exc. VAT)

£232.45

(inc. VAT)

Units	Per unit
1 - 4	£193.71
5 +	£185.96

RS Stock No.:: 185-6506
Mfr. Part No.:: ARTL10E(R)
Brand:: NMB

Technical Reference

Datasheet ARTL10E(R)

Legislation and Compliance

Product Details

NMB ART-E, ART series male rod end bearings self-lubricating 3- piece, Left hand thread. Ideal in extreme conditions.
Materials: Bearing: Stainless steel CRES 440C. Outer cage: Stainless steel CRES 410 with heat treatment. Coating: Teflon. Rod body: 4340 steel with heat treatment and surface coating. Rod end bearings are used on the ends of cylinders, linkages, shafts and rods where an articulating joint is needed, they take up angular misalignments between connecting components. Benefits include long service life, high reliability and low maintenance. Applications are across many industry sectors.

Specifications

Attribute	Value
Connection Size	0.625-18 Male
Bore Size	15.87mm
Material	Stainless Steel
Static Load Rating	10809 (Static) N, 97411 (Ultimate) N
Maximum Operating Temperature	+121°C
Minimum Operating Temperature	-54°C
Connection Gender	Male
