Ruland MCLC-8-8-SS Rigid Shaft Coupling, 24 mm OD, 303 Stainless Steel, 16 Nm
- RS Stock No.:
- 592-044
- Mfr. Part No.:
- MCLC-8-8-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£82.01
(exc. VAT)
£98.41
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £82.01 |
*price indicative
- RS Stock No.:
- 592-044
- Mfr. Part No.:
- MCLC-8-8-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Rigid Shaft Coupling | |
| One/Two Piece | One Piece | |
| Outside Diameter | 24 mm | |
| Bore Size A | 8mm | |
| Length | 35mm | |
| Bore Size B | 8mm | |
| Maximum Speed | 4000rpm | |
| Material | 303 Stainless Steel | |
| Style | Clamp | |
| Keyway | Yes | |
| Torque Rating | 16Nm | |
| Minimum Operating Temperature | -40°F | |
| Maximum Operating Temperature | 350°F | |
| Standards/Approvals | RoHS3, REACH, DIN 912 12.9 | |
| Bore Type | Precision Honed | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Rigid Shaft Coupling | ||
One/Two Piece One Piece | ||
Outside Diameter 24 mm | ||
Bore Size A 8mm | ||
Length 35mm | ||
Bore Size B 8mm | ||
Maximum Speed 4000rpm | ||
Material 303 Stainless Steel | ||
Style Clamp | ||
Keyway Yes | ||
Torque Rating 16Nm | ||
Minimum Operating Temperature -40°F | ||
Maximum Operating Temperature 350°F | ||
Standards/Approvals RoHS3, REACH, DIN 912 12.9 | ||
Bore Type Precision Honed | ||
- COO (Country of Origin):
- US

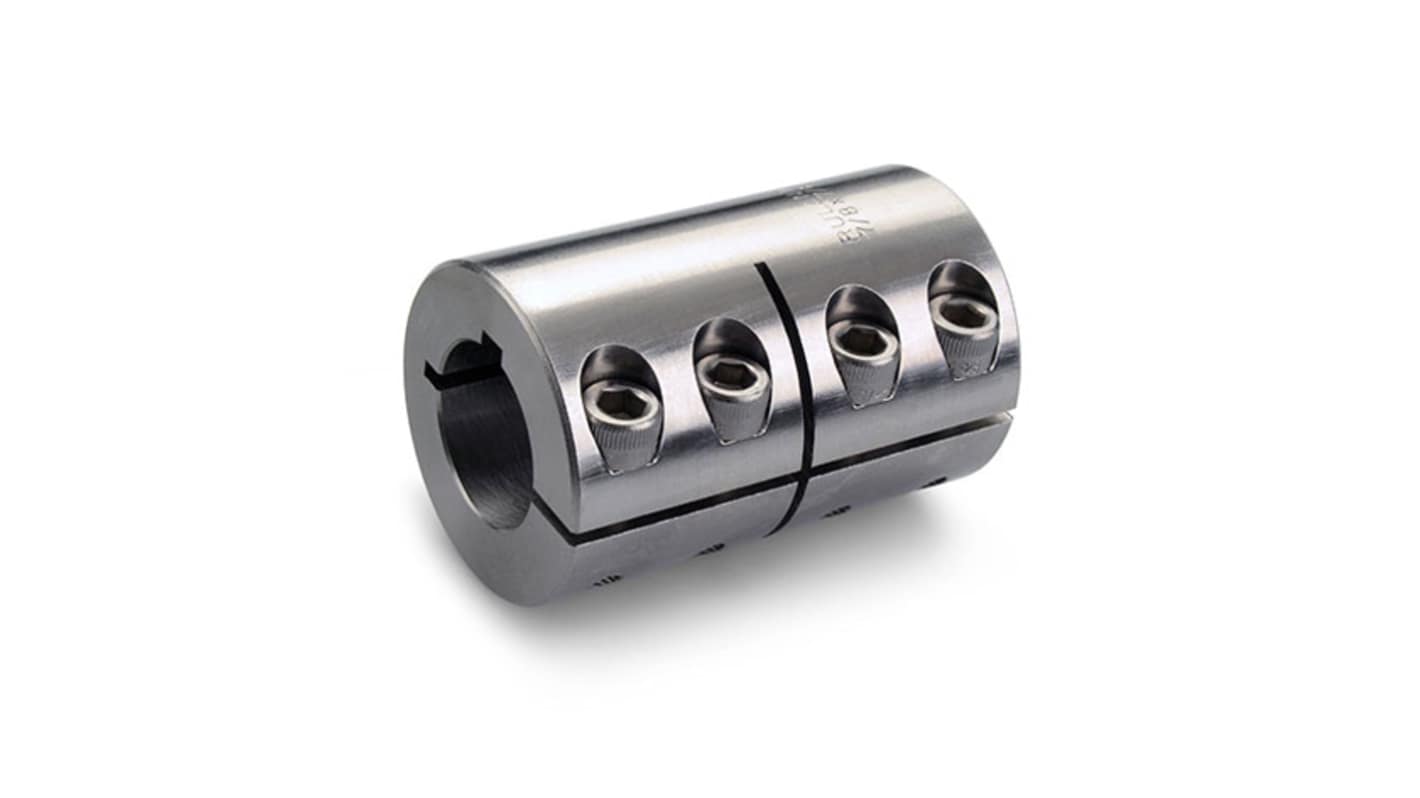

The Ruland One-piece rigid coupling is designed to provide exceptional performance in high precision servo applications. Engineered from 303 stainless steel, it seamlessly connects shafts while ensuring superior alignment and minimal vibration. The coupling boasts precision-honed bores that ensure consistent reliability, making it ideally suited for demanding environments. With its unique Nypatch anti-vibration coating, installations are streamlined, significantly reducing time and enhancing seat stability. This robust coupling is manufactured in the USA, adhering to stringent quality controls and material compliance standards. Whether you are working in robotics, automation, or mechanical engineering, this coupling is built to deliver optimal performance and durability.
Constructed from premium 303 stainless steel for enhanced corrosion resistance
Precision-honed bores prevent misalignment and vibration
Lightweight design with a weight of 0.224200 lbs
Operating temperature ranges from -40°F to 350°F for versatile applications
Zero-backlash feature ensures smooth operation and superior performance
