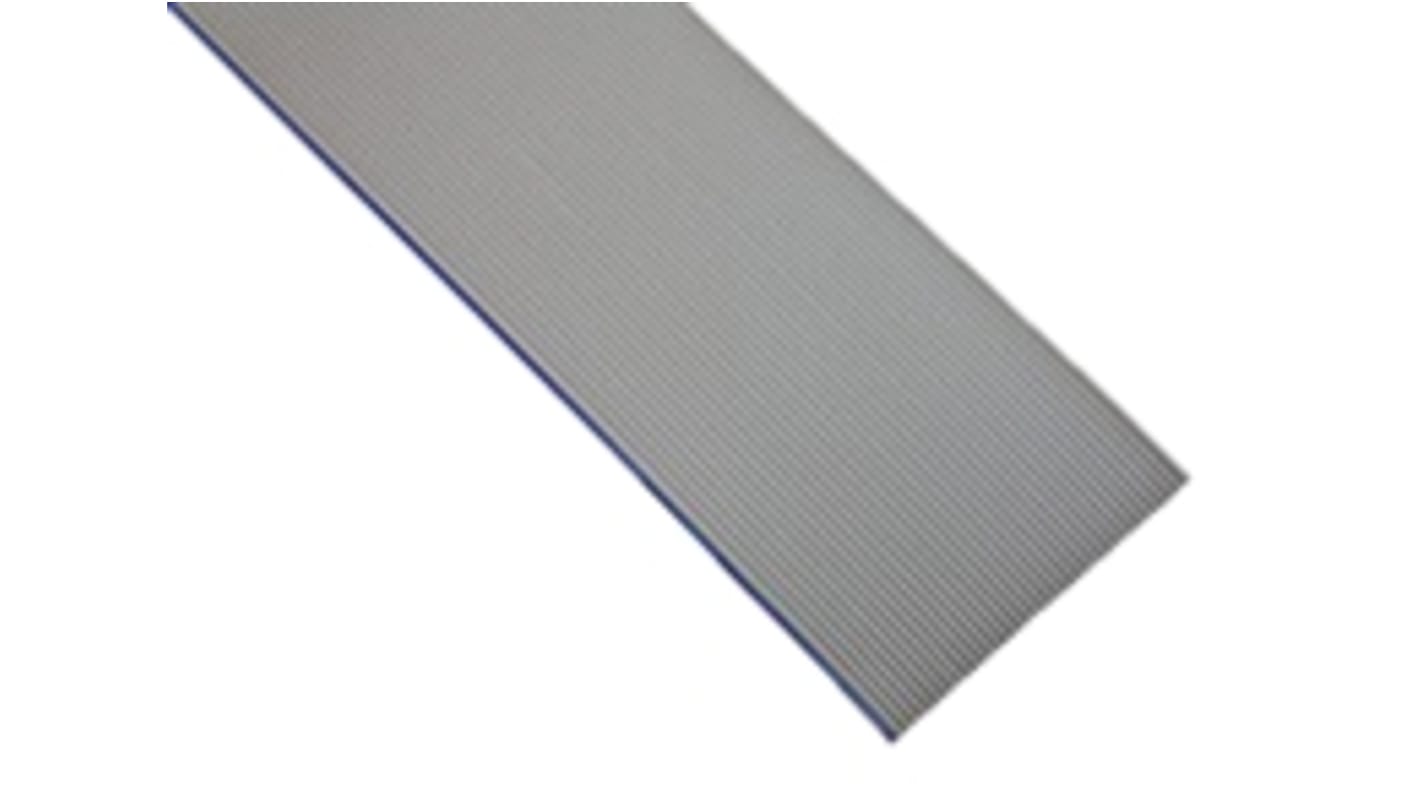

3M HF539 Series Ribbon Cable, 64-Way, 1.27mm Pitch
- RS Stock No.:
- 828-9793
- Mfr. Part No.:
- HF539/64 100FT
- Brand:
- 3M
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 828-9793
- Mfr. Part No.:
- HF539/64 100FT
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Pitch | 1.27mm | |
| Number of Ways | 64 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28 | |
| Series | HF539 | |
| Width | 3.2 in | |
| Number of Strands | 19 | |
| Sheath Colour | Blue | |
| Maximum Operating Temperature | +105°C | |
| Voltage Rating | 300 V | |
| Conductor Strand Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Hi-Flex | Yes | |
| Operating Temperature Range | -40 → +105 °C | |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) | |
| Core Strands | 19/40 | |
| Characteristic Impedance | 100 (Unbalanced) Ω, 168 (Balanced) Ω | |
| Size of Strands | 40 | |
Select all | ||
|---|---|---|
Brand 3M | ||
Pitch 1.27mm | ||
Number of Ways 64 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 | ||
Series HF539 | ||
Width 3.2 in | ||
Number of Strands 19 | ||
Sheath Colour Blue | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 300 V | ||
Conductor Strand Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Hi-Flex Yes | ||
Operating Temperature Range -40 → +105 °C | ||
Fire Behaviour Low Smoke Zero Halogen (LSZH) | ||
Core Strands 19/40 | ||
Characteristic Impedance 100 (Unbalanced) Ω, 168 (Balanced) Ω | ||
Size of Strands 40 | ||
- COO (Country of Origin):
- US
3M HF539 Series Medium Flex Life LSZH Cable
From 3M, the HF539 Series is a medium flex life 28AWG stranded cable. HF359 can be used in applications requiring long term electronic connection between moving parts.
Features and Benefits
• Halogen Free
• Low smoke and low toxicity
• Zippable
• Continual split/bond repeat
• 28 AWG Stranded
• Up to 10 million flex cycle life
• Low smoke and low toxicity
• Zippable
• Continual split/bond repeat
• 28 AWG Stranded
• Up to 10 million flex cycle life
Applications
Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;
• Test and Measure
• Computing
• Robotics
• Test and Measure
• Computing
• Robotics
Why Choose 3M?
3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.
Standards
UL E42769, Style 21682
Medium Flex
