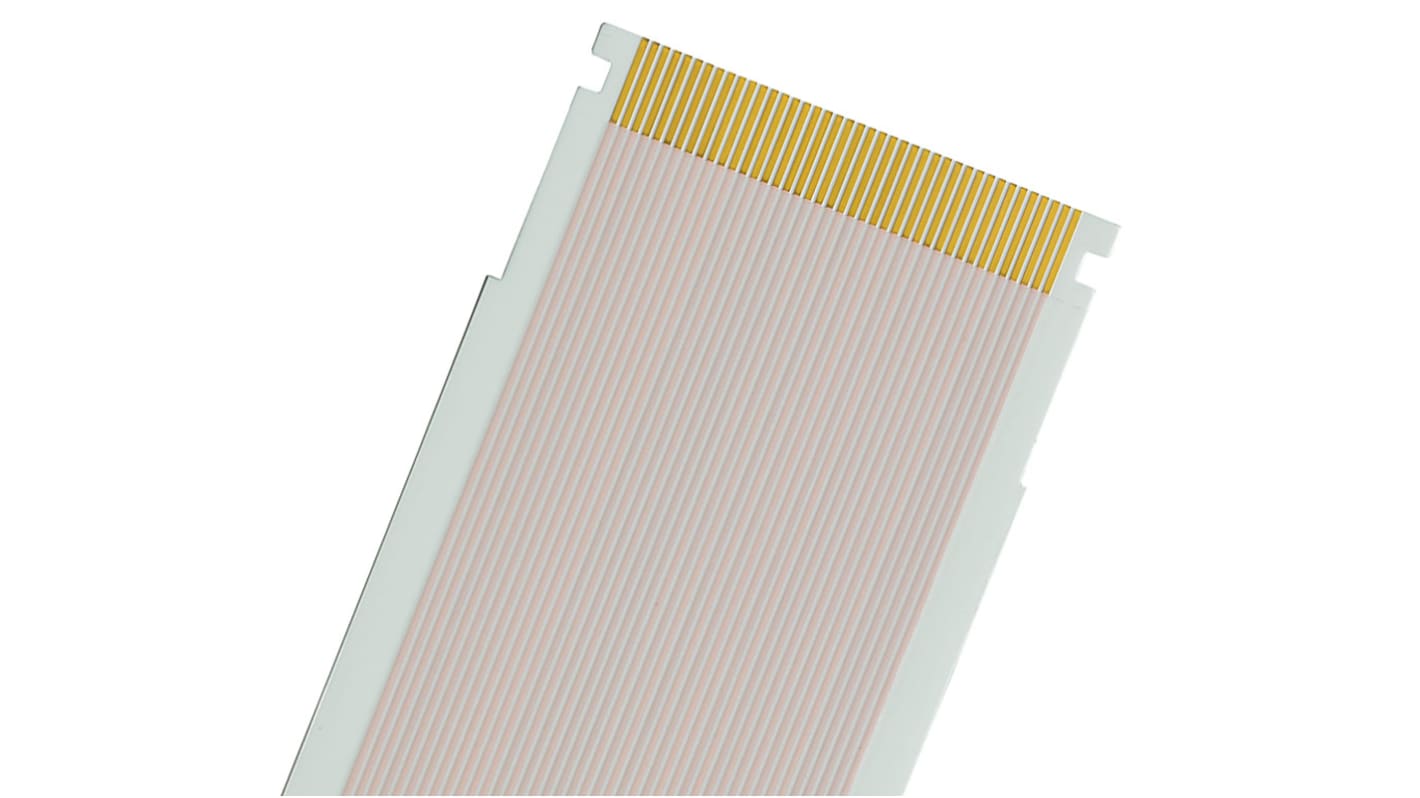

Molex 15023 Series FFC Ribbon Cable, 41-Way, 0.5mm Pitch, 203mm Length
- RS Stock No.:
- 219-3476
- Mfr. Part No.:
- 150230841
- Brand:
- Molex
Discontinued
- RS Stock No.:
- 219-3476
- Mfr. Part No.:
- 150230841
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Ribbon Cable Type | FFC | |
Pitch | 0.5mm | |
Number of Ways | 41 | |
Series | 15023 | |
Length | 203mm | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -40°C | |
Voltage Rating | 30 V ac | |
Current Rating | 500 mA | |
Operating Temperature Range | -40 → +80 °C | |
Select all | ||
---|---|---|
Brand Molex | ||
Ribbon Cable Type FFC | ||
Pitch 0.5mm | ||
Number of Ways 41 | ||
Series 15023 | ||
Length 203mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -40°C | ||
Voltage Rating 30 V ac | ||
Current Rating 500 mA | ||
Operating Temperature Range -40 → +80 °C | ||
- COO (Country of Origin):
- HU
Molex Ribbon Cable, 203mm Length, 0.5A Maximum Current per Contact - 15023 Series - 150230841
For a reliable board-to-board connection where space is limited, turn to this ribbon cable from Molex. It has a flexible and slim design with 41 conductors arranged side by side. This – along with a tight 0.5mm pitch – saves space in your setup. You can use the cable to connect electrical components, including peripherals like hard drives and video cards. It's a good fit for HD displays too, thanks to LVDS technology that supports lightning-fast data transfer speeds.
Features & Benefits
• Maximum voltage rating of 30V AC makes it suitable for low-voltage to medium-voltage applications
• Robust polyester sheath protects the cable circuits from wear for a long service life
• Operating temperature range from -40° to +80°C means it does the job in challenging industrial environments
• Robust polyester sheath protects the cable circuits from wear for a long service life
• Operating temperature range from -40° to +80°C means it does the job in challenging industrial environments
Applications
• Consumer appliances
• Automotive manufacturing
• Computer wiring
• Automotive manufacturing
• Computer wiring
What material are the conductors made from?
The cable's contacts are plated in gold, making them highly conductive.
