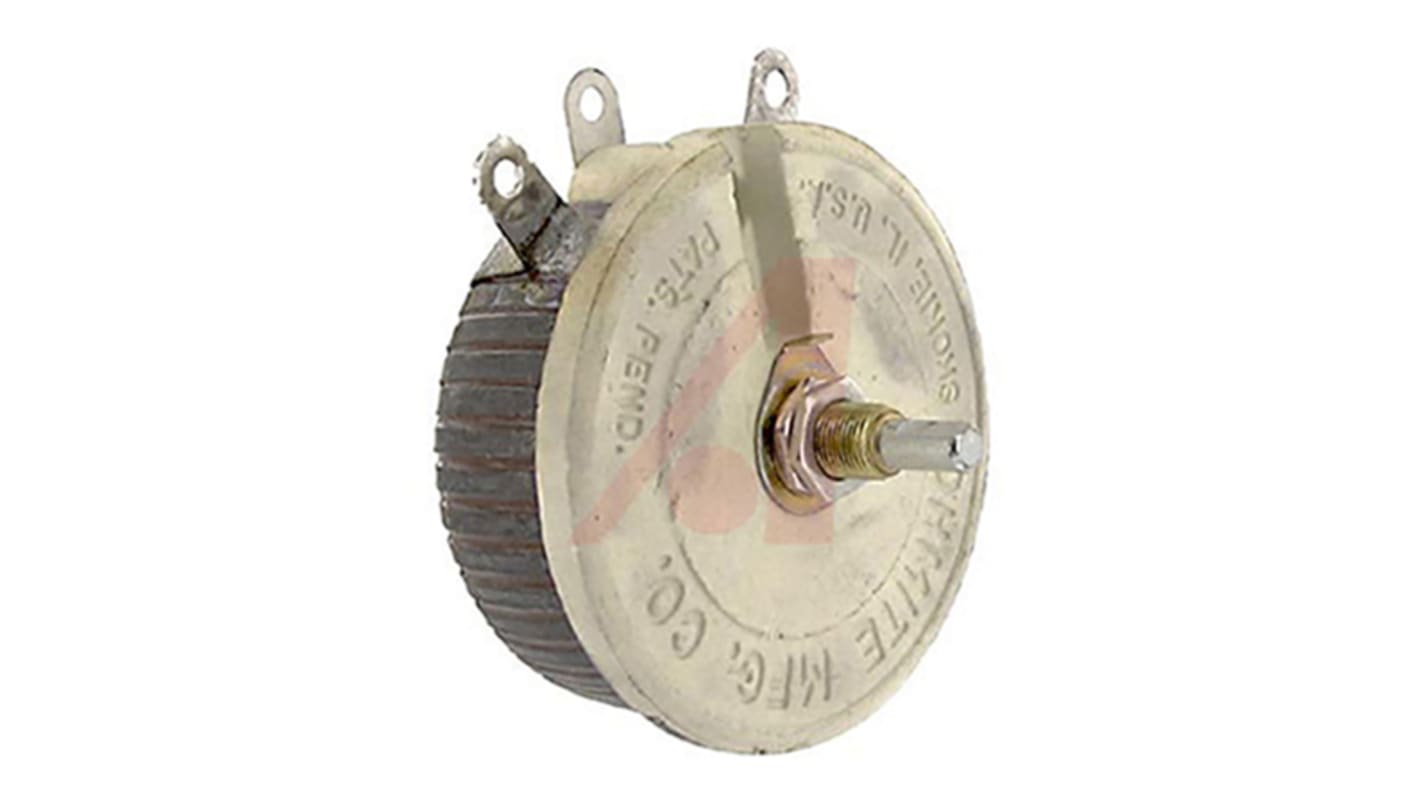

Ohmite 100W 2Ω Rheostat 7.07A, RKS2R0E
- RS Stock No.:
- 891-5559
- Mfr. Part No.:
- RKS2R0E
- Brand:
- Ohmite
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 891-5559
- Mfr. Part No.:
- RKS2R0E
- Brand:
- Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ohmite | |
| Maximum Resistance | 2Ω | |
| Tolerance | ±10% | |
| Power Rating | 100W | |
| Number of Turns | 1 | |
| Mounting Type | Panel Mount | |
| Shaft Diameter | 6.35 mm | |
| Termination Style | Solder Lug | |
| Dimensions | 79.38 x 44.45mm | |
| Maximum Voltage Rating | 1000 Vrms | |
| Length | 44.45mm | |
| Current Rating | 7.07A | |
| Core Type | Open | |
| Actuator Type | Linear Shaft | |
| Shaft Length | 8.73mm | |
| Electrical Taper | Linear | |
Select all | ||
|---|---|---|
Brand Ohmite | ||
Maximum Resistance 2Ω | ||
Tolerance ±10% | ||
Power Rating 100W | ||
Number of Turns 1 | ||
Mounting Type Panel Mount | ||
Shaft Diameter 6.35 mm | ||
Termination Style Solder Lug | ||
Dimensions 79.38 x 44.45mm | ||
Maximum Voltage Rating 1000 Vrms | ||
Length 44.45mm | ||
Current Rating 7.07A | ||
Core Type Open | ||
Actuator Type Linear Shaft | ||
Shaft Length 8.73mm | ||
Electrical Taper Linear | ||
- COO (Country of Origin):
- MX
RK Series 100W Wirewound Potentiometers
Ohmite RK Series wirewound potentiometers are designed and manufactured to operate smoothly and reliably over long periods of use. The RK Series has a ceramic body, high-grade resistance alloy linear taper windings, vitreous enamel coating, metal spring contact arm, metal graphite composition and solder coated terminals. Typical applications for the RK series are motor speed controls, light dimmers and for equipment requiring convenient variable resistance settings.
Tolerance ±10%
100 Watts
100 Watts
