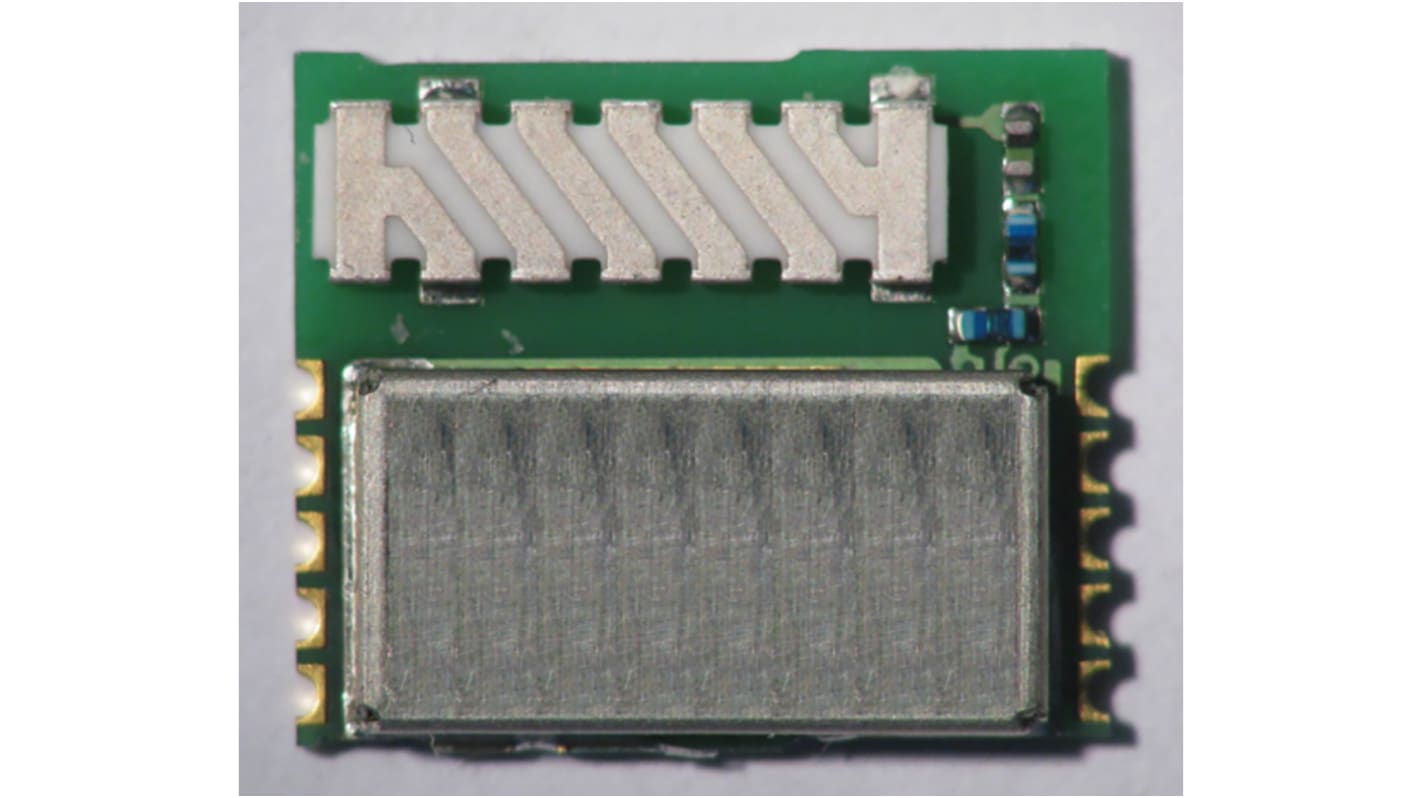

STMicroelectronics SPSGRF-868 RFID Module, -0.3 → 3.9V
- RS Stock No.:
- 196-2001
- Mfr. Part No.:
- SPSGRF-868
- Brand:
- STMicroelectronics
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 196-2001
- Mfr. Part No.:
- SPSGRF-868
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Component Type | Module | |
| Maximum Output Power | 11.6dBm | |
| Receiver Sensitivity | -118dBm | |
| Supported Bus Interfaces | SPI | |
| Supply Voltage | -0.3 → 3.9V | |
| Dimensions | 13.5 x 11.5 x 2mm | |
| Height | 2mm | |
| Length | 13.5mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 11.5mm | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Component Type Module | ||
Maximum Output Power 11.6dBm | ||
Receiver Sensitivity -118dBm | ||
Supported Bus Interfaces SPI | ||
Supply Voltage -0.3 → 3.9V | ||
Dimensions 13.5 x 11.5 x 2mm | ||
Height 2mm | ||
Length 13.5mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 11.5mm | ||
- COO (Country of Origin):
- IT
The SPSGRF-868 and SPSGRF-915 are easy-to-use, low power sub-GHz modules based on the SPIRIT1 RF transceiver, operating respectively in the 868 MHz SRD and 915 MHz ISM bands. The modules provide a complete RF platform in a tiny form factor. The SPSGRF series enables wireless connectivity in electronic devices, requiring no RF experience or expertise for integration into the final product. As an FCC, IC, and CE certified solution, the SPSGRF series optimizes the time-to-market of end applications. The modules are designed for maximum performance in minimal space and include 4 programmable I/O pins and SPI serial interfaces.
