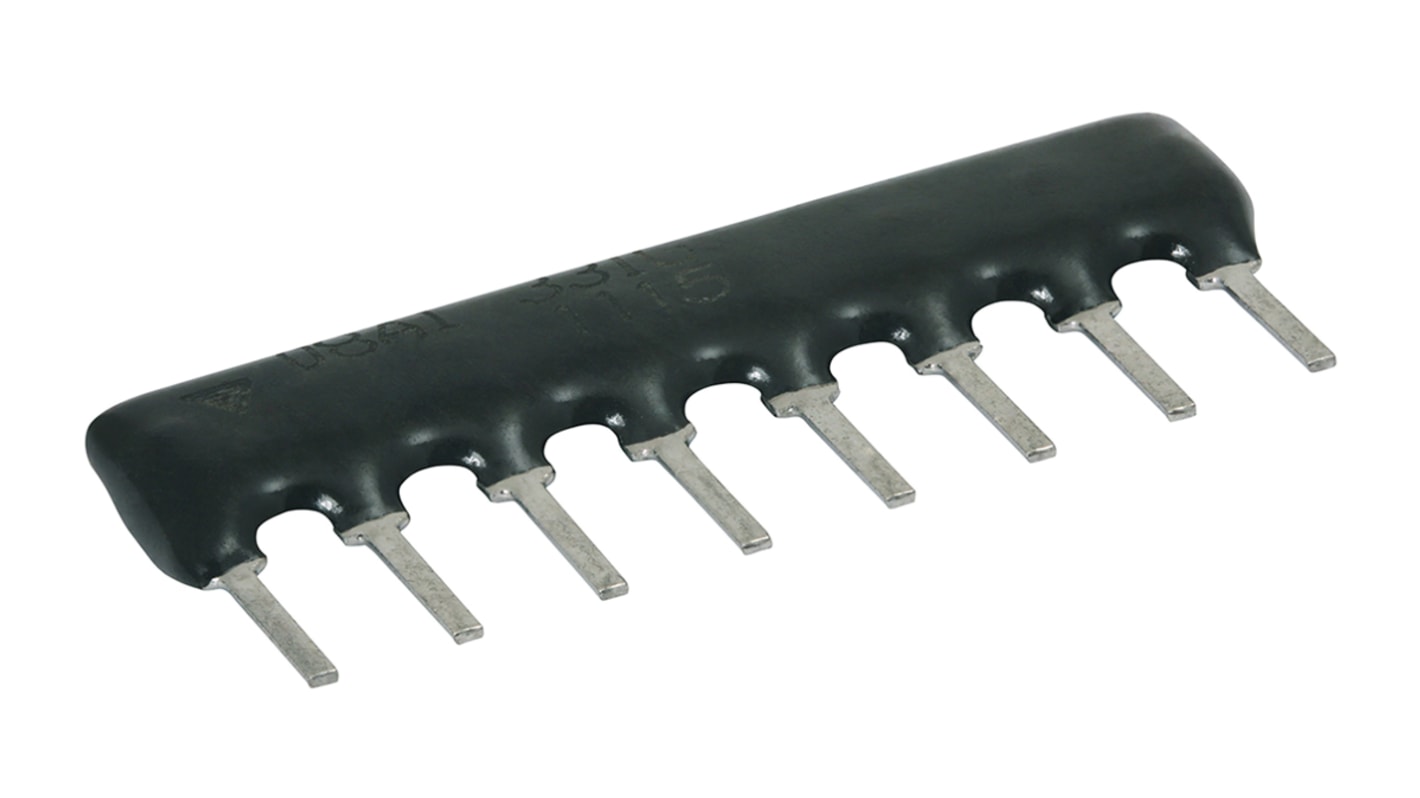

Vishay, CSC 470Ω ±2% Bussed Resistor Array, 7 Resistors, 1W total, SIP, Through Hole
- RS Stock No.:
- 852-4747
- Mfr. Part No.:
- CSC08A01470RGEK
- Brand:
- Vishay
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 852-4747
- Mfr. Part No.:
- CSC08A01470RGEK
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Resistance | 470Ω | |
| Resistor Type | Network | |
| Number of Resistors | 7 | |
| Package/Case | SIP | |
| Power Rating | 1W | |
| Termination Style | Through Hole | |
| Tolerance | ±2% | |
| Case Style | Moulded | |
| Power Rating per Resistor | 0.2W | |
| Circuit Designator | BUS | |
| Length | 20.07mm | |
| Depth | 2.49mm | |
| Height | 4.95mm | |
| Dimensions | 20.07 x 2.49 x 4.95mm | |
| Series | CSC | |
| Number of Terminals | 8 | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Temperature Coefficient | ±100ppm/°C | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Resistance 470Ω | ||
Resistor Type Network | ||
Number of Resistors 7 | ||
Package/Case SIP | ||
Power Rating 1W | ||
Termination Style Through Hole | ||
Tolerance ±2% | ||
Case Style Moulded | ||
Power Rating per Resistor 0.2W | ||
Circuit Designator BUS | ||
Length 20.07mm | ||
Depth 2.49mm | ||
Height 4.95mm | ||
Dimensions 20.07 x 2.49 x 4.95mm | ||
Series CSC | ||
Number of Terminals 8 | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Temperature Coefficient ±100ppm/°C | ||
- COO (Country of Origin):
- CN
CSC Series 0.20W - 0.30W
The CSC Series of Vishay thick film resistor networks. The entire series is highly reliable and are all of excellent quality.
Various ohms available
All models rated from 0.20W - 0.30W
Reduces total assembly costs
“A” profile standard in 4 thru 12 pins
All models rated from 0.20W - 0.30W
Reduces total assembly costs
“A” profile standard in 4 thru 12 pins
