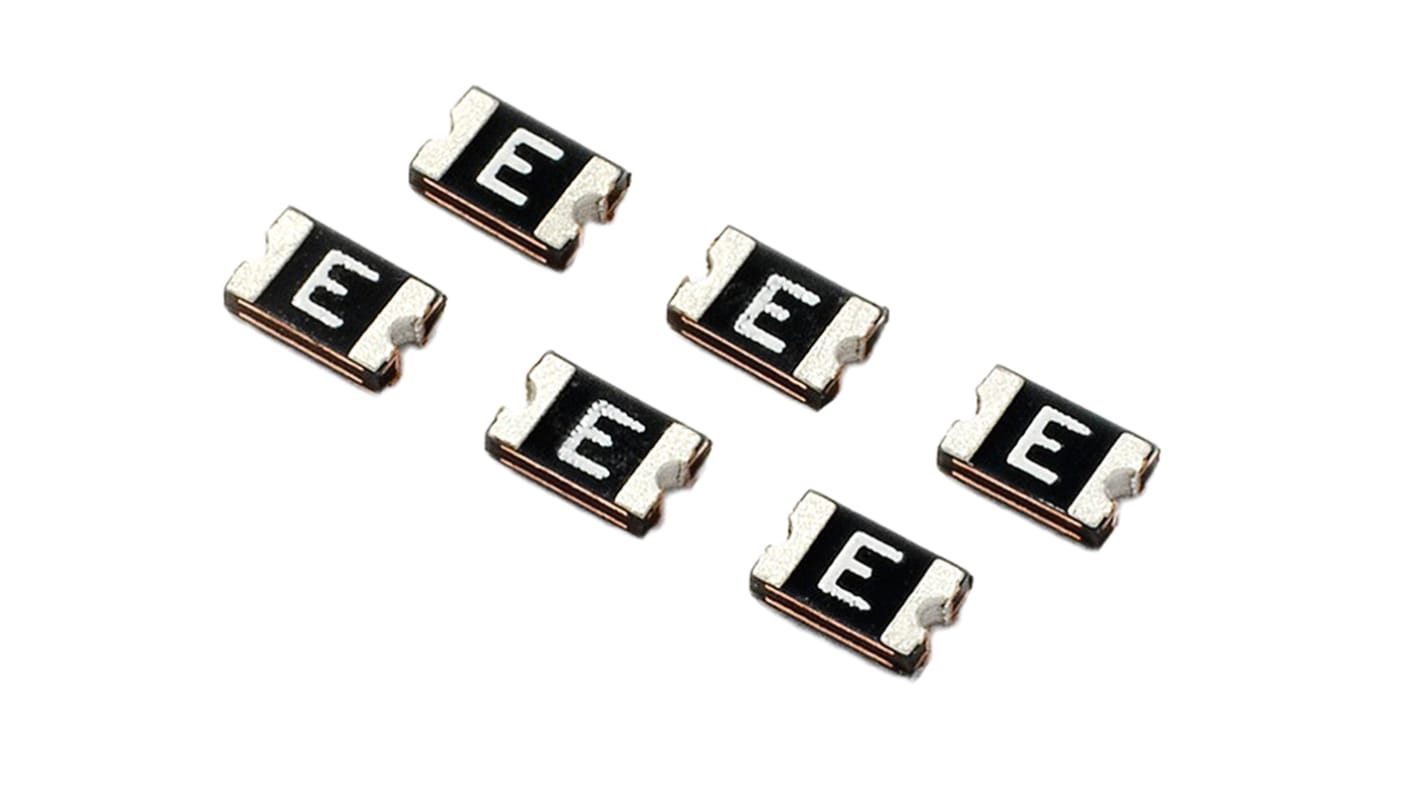

Littelfuse 0.5A Resettable Fuse, 6V dc
- RS Stock No.:
- 895-1616
- Mfr. Part No.:
- 0805L050WR
- Brand:
- Littelfuse
Discontinued
- RS Stock No.:
- 895-1616
- Mfr. Part No.:
- 0805L050WR
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 1A | |
| Voltage Rating | 6V dc | |
| Time to Trip | 0.1s | |
| Hold Current | 0.5A | |
| Maximum Current | 100 A | |
| Length | 2.2mm | |
| Height | 1.25mm | |
| Width | 1.5mm | |
| Terminal Material | Solder Plated Copper | |
| Minimum Resistance | 0.15Ω | |
| Maximum Resistance | 850mΩ | |
| Power Dissipation | 0.5W | |
| Minimum Operating Temperature | -40°C | |
| Package Size | 0805 | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -40 → +85 °C | |
| Series | 0805L | |
| Dimensions | 2.2 x 1.5 x 1.25mm | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 1A | ||
Voltage Rating 6V dc | ||
Time to Trip 0.1s | ||
Hold Current 0.5A | ||
Maximum Current 100 A | ||
Length 2.2mm | ||
Height 1.25mm | ||
Width 1.5mm | ||
Terminal Material Solder Plated Copper | ||
Minimum Resistance 0.15Ω | ||
Maximum Resistance 850mΩ | ||
Power Dissipation 0.5W | ||
Minimum Operating Temperature -40°C | ||
Package Size 0805 | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85 °C | ||
Series 0805L | ||
Dimensions 2.2 x 1.5 x 1.25mm | ||
- COO (Country of Origin):
- CN
Littelfuse 0805L Series
Littelfuse 0805L series is a resettable PTC suface mount fuse. 0805L fuses offer overcurrent protection for applications where space is a premium and a fast reponse to fault currents are required.
Applications:
USB peripherals.
Plug and play protection for motherboards.
Mobile phones-battery and port protection.
Digital cameras.
Game console protection.
USB peripherals.
Plug and play protection for motherboards.
Mobile phones-battery and port protection.
Digital cameras.
Game console protection.
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
