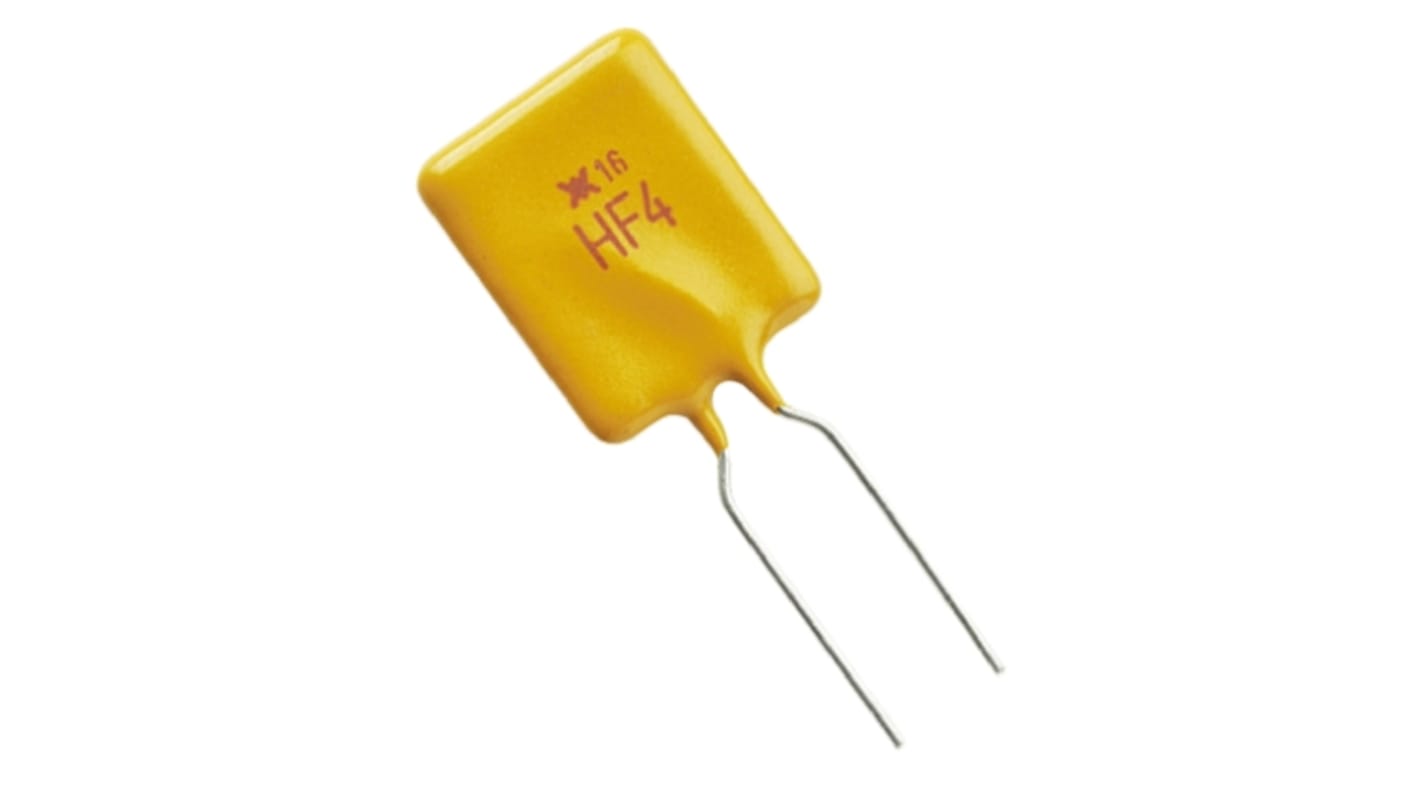

Littelfuse 4A Resettable Fuse, 16V
- RS Stock No.:
- 782-6449
- Mfr. Part No.:
- RHEF400
- Brand:
- Littelfuse
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 782-6449
- Mfr. Part No.:
- RHEF400
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 7.5A | |
| Voltage Rating | 16V | |
| Time to Trip | 5s | |
| Hold Current | 4A | |
| Maximum Current | 100 A | |
| Length | 10mm | |
| Height | 15mm | |
| Width | 3mm | |
| Terminal Material | Tin Plated Copper | |
| Minimum Resistance | 0.024Ω | |
| Maximum Resistance | 0.04Ω | |
| Power Dissipation | 3.3W | |
| Maximum Operating Temperature | +125°C | |
| Body Material | Epoxy Polymer | |
| Dimensions | 10 x 15 x 3mm | |
| Series | RHEF | |
| Lead Orientation | Radial | |
Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 7.5A | ||
Voltage Rating 16V | ||
Time to Trip 5s | ||
Hold Current 4A | ||
Maximum Current 100 A | ||
Length 10mm | ||
Height 15mm | ||
Width 3mm | ||
Terminal Material Tin Plated Copper | ||
Minimum Resistance 0.024Ω | ||
Maximum Resistance 0.04Ω | ||
Power Dissipation 3.3W | ||
Maximum Operating Temperature +125°C | ||
Body Material Epoxy Polymer | ||
Dimensions 10 x 15 x 3mm | ||
Series RHEF | ||
Lead Orientation Radial | ||
- COO (Country of Origin):
- US
PolySwitch™ PTC Devices RHEF Series
Approvals
UL, CSA, TUV
PCB Wire Ended
All are UL, CSA, TUV approved
Protection of electrical and electronic circuits against excessive currents
Rapid switch from low resistance state to very high resistance with electrical overload or short circuit
Quick and automatic reset and return to low resistance state when fault condition corrected and power removed
Protection of electrical and electronic circuits against excessive currents
Rapid switch from low resistance state to very high resistance with electrical overload or short circuit
Quick and automatic reset and return to low resistance state when fault condition corrected and power removed
Features:
Automatically resets itself thousands of times
Maintenance free
Small size and no fuseholder required
Maintenance free
Small size and no fuseholder required
Main applications:
Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
