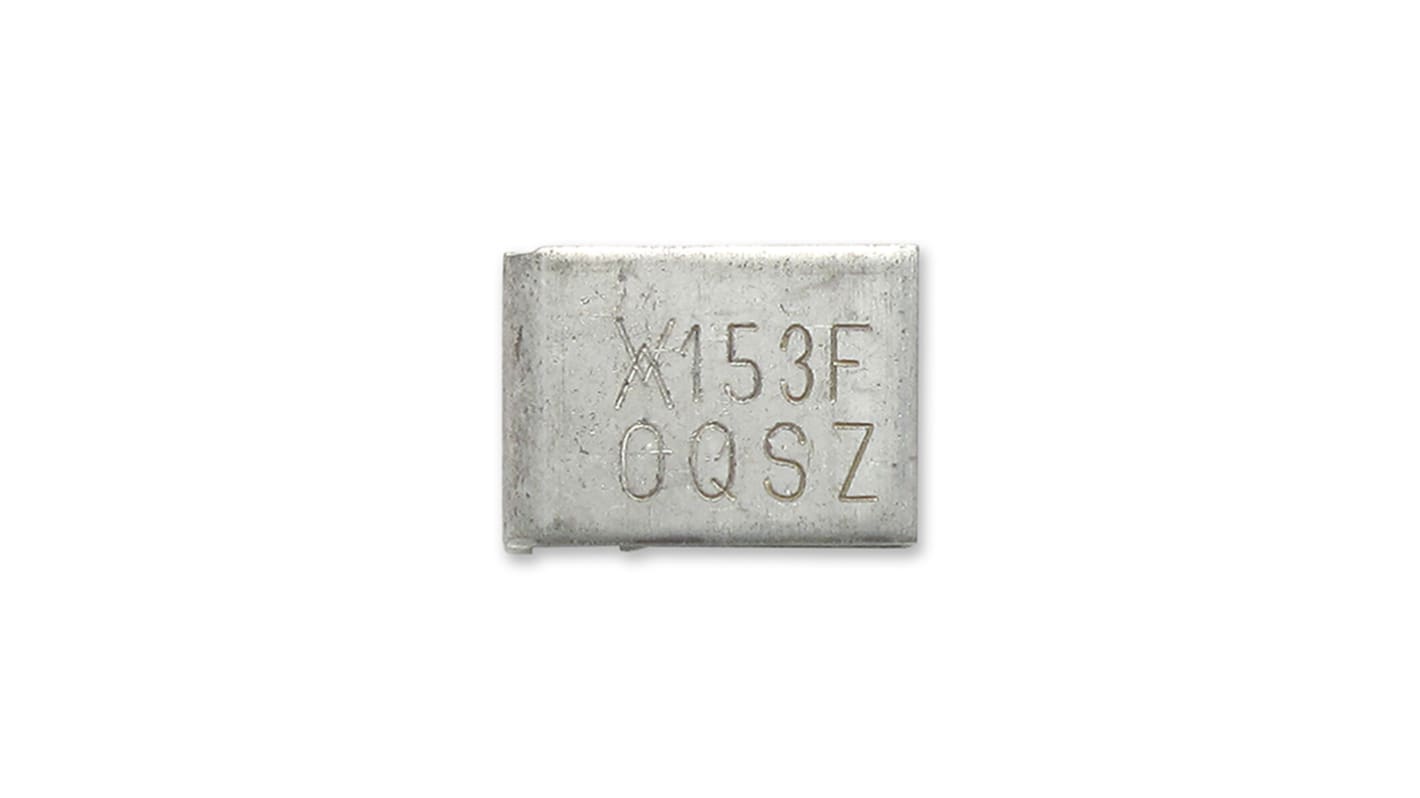

Wickmann 1.5A Resettable Fuse, 33V dc
- RS Stock No.:
- 174-0882
- Mfr. Part No.:
- RF0311-000
- Brand:
- Wickmann
30 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 10)
£0.19
(exc. VAT)
£0.23
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 + | £0.19 | £1.90 |
| *price indicative | ||
- RS Stock No.:
- 174-0882
- Mfr. Part No.:
- RF0311-000
- Brand:
- Wickmann
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Wide range of automotive surface-mount PPTC
The SMD series provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Features:
Low resistance
Benefits:
Compact Design and New HV Ratings
Smaller size helps reduce board space and cost
Many product choices optimizes design flexibility
Compatible with high-volume electronics assembly
Higher voltage ratings allow use in new applications
Applications:
Mobile Electronics and Batteries
Computer
Portable electronics
Multimedia
Game machines
Telephone and broadband
Automotive
Industrial controls
Battery
Low resistance
Benefits:
Compact Design and New HV Ratings
Smaller size helps reduce board space and cost
Many product choices optimizes design flexibility
Compatible with high-volume electronics assembly
Higher voltage ratings allow use in new applications
Applications:
Mobile Electronics and Batteries
Computer
Portable electronics
Multimedia
Game machines
Telephone and broadband
Automotive
Industrial controls
Battery
Specifications
Attribute | Value |
|---|---|
| Trip Current | 3A |
| Voltage Rating | 33V dc |
| Time to Trip | 5s |
| Hold Current | 1.5A |
| Maximum Current | 40 A |
| Length | 9.4mm |
| Height | 3mm |
| Width | 6.71mm |
| Minimum Resistance | 0.08Ω |
| Maximum Resistance | 230mΩ |
| Power Dissipation | 1.9W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Package Size | 3425 |
| Fuse Speed | F |
| Body Material | Poly |
| Operating Temperature Range | -40 → +85 °C |
| Series | SMD2 |
| Dimensions | 9.4 x 6.71 x 3mm |
