RF Solutions Remote Control Base Module SQUIDBOARD-868, Transmitter, 868MHz
- RS Stock No.:
- 125-8186
- Mfr. Part No.:
- SQUIDBOARD-868
- Brand:
- RF Solutions
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 125-8186
- Mfr. Part No.:
- SQUIDBOARD-868
- Brand:
- RF Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RF Solutions | |
| Type | Transmitter | |
| Frequency | 868MHz | |
| Number of Channels | 2 | |
| Nominal Supply Voltage | 3V dc | |
| Depth | 42mm | |
| Maximum Operating Temperature | +70°C | |
| Maximum Supply Voltage | 3.8V dc | |
| Minimum Operating Temperature | -10°C | |
| Minimum Supply Voltage | 2.4V dc | |
| Width | 38mm | |
Select all | ||
|---|---|---|
Brand RF Solutions | ||
Type Transmitter | ||
Frequency 868MHz | ||
Number of Channels 2 | ||
Nominal Supply Voltage 3V dc | ||
Depth 42mm | ||
Maximum Operating Temperature +70°C | ||
Maximum Supply Voltage 3.8V dc | ||
Minimum Operating Temperature -10°C | ||
Minimum Supply Voltage 2.4V dc | ||
Width 38mm | ||
- COO (Country of Origin):
- GB

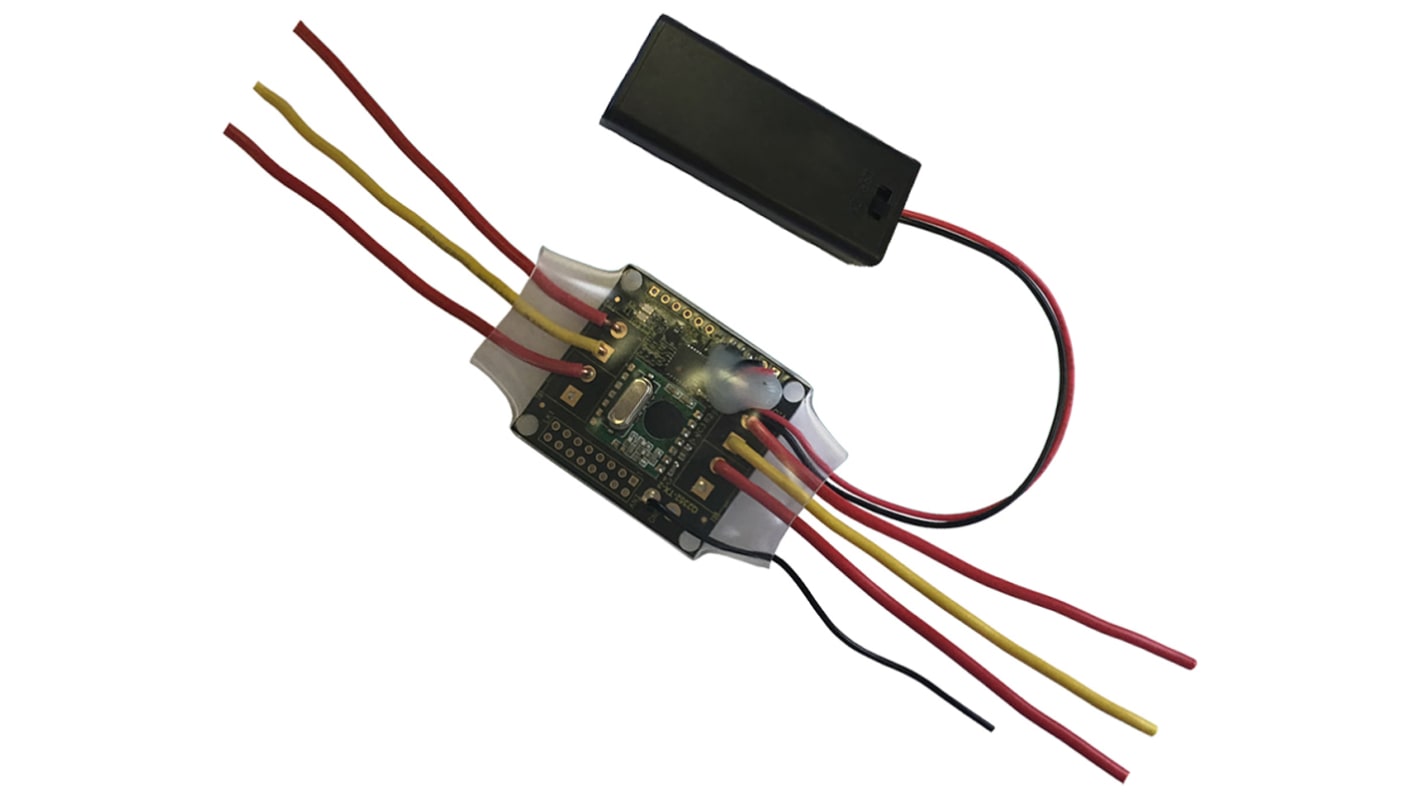

SQUIDBOARD-868 Wireless Remote Control Transmitter
SQUIDBOARD-868 is an easy to use remote transmitter for wireless applications. The tiny board can achieve 100 m range in an open line-of-sight conditions.
Applications
Remote Control
Remote Switching
Remote Light Switch
Single or double gang switch
Remote Control
Remote Switching
Remote Light Switch
Single or double gang switch
Features
Range up to 100 m
2 digital inputs
Ultra low power
Compact - 38 x 42 mm
Shrink-wrap Housing
2 digital inputs
Ultra low power
Compact - 38 x 42 mm
Shrink-wrap Housing
