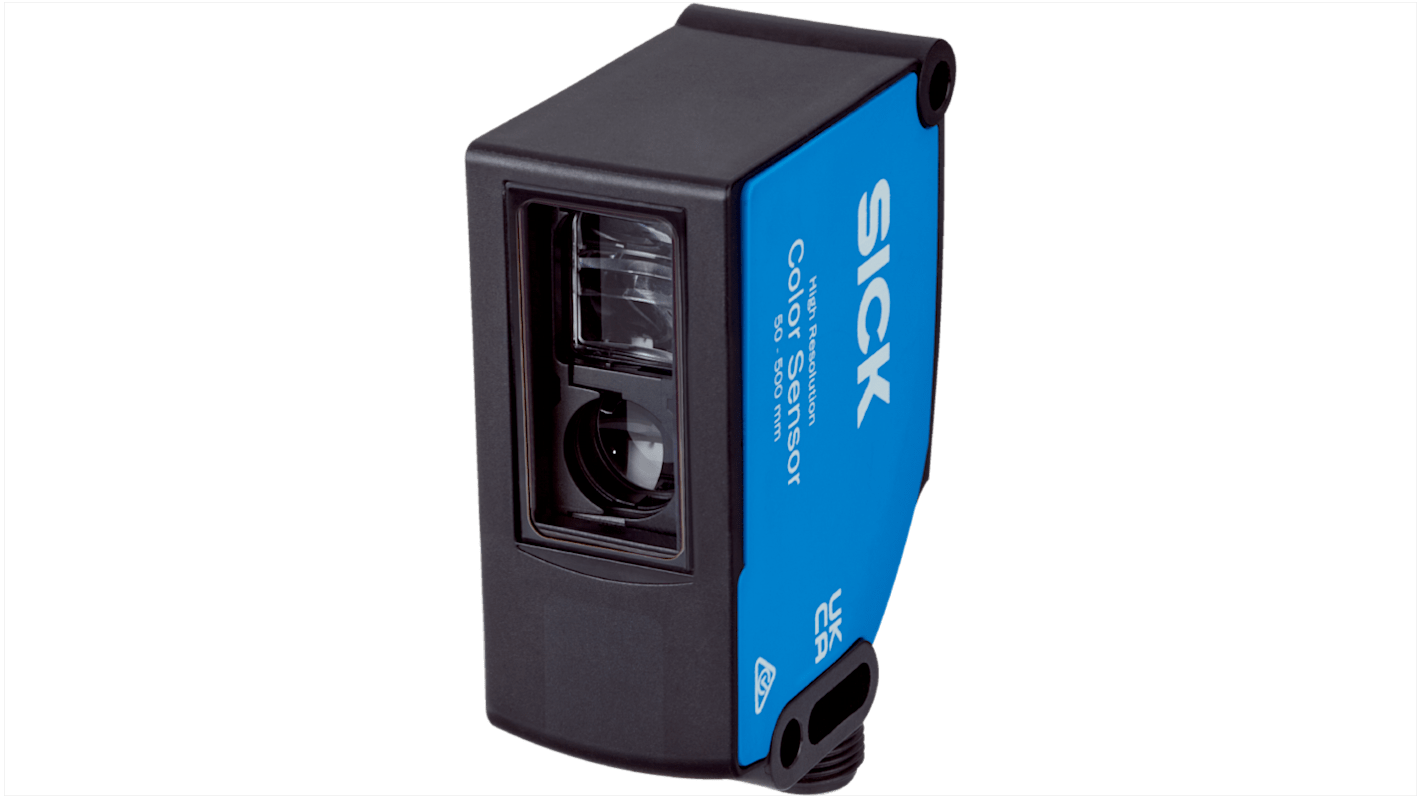

Sick Colour Sensors 50 → 500 mm, LED IO-Link, PNP/NPN, 100 mA, 10.8 → 28.8 V, IP67

The new CSS High Resolution colour sensor can even distinguish between fine colour nuances. It also detects colour gradients and structured materials like wood. Besides sensing distances of up to 500 mm, the CSS High Resolution comes with an automatic sen

Furthermore, the full colour TFT sensor display shows colour values (L*a*b or RGB) as well as the similarity of a detected colour to a taught-in colour. Up to 24 colors per identification task (job) can be transferred via the IO-Link interface and saved e

High colour resolution
Detects colour gradients and structured materials
Sensing distances up to 500 mm
Automatic sensing distance regulation
Output of colour values (L*a*b/RGB) and colour similarity
Up to 24 colors per identification task (job) can be sa

Attractive alternative to expensive colour measurement solutions thanks to the output of colour values and high colour resolution
Saves resources and increases process flexibility because up to 24 colors per identification task (job) can be transferred vi

Quality control: Thorough check of colour tone and structure, for example after printing, dyeing or lacquering
Object sorting and separation: differentiation of objects, for example components by colour
Mark and object positioning: detecting coloured mark

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
