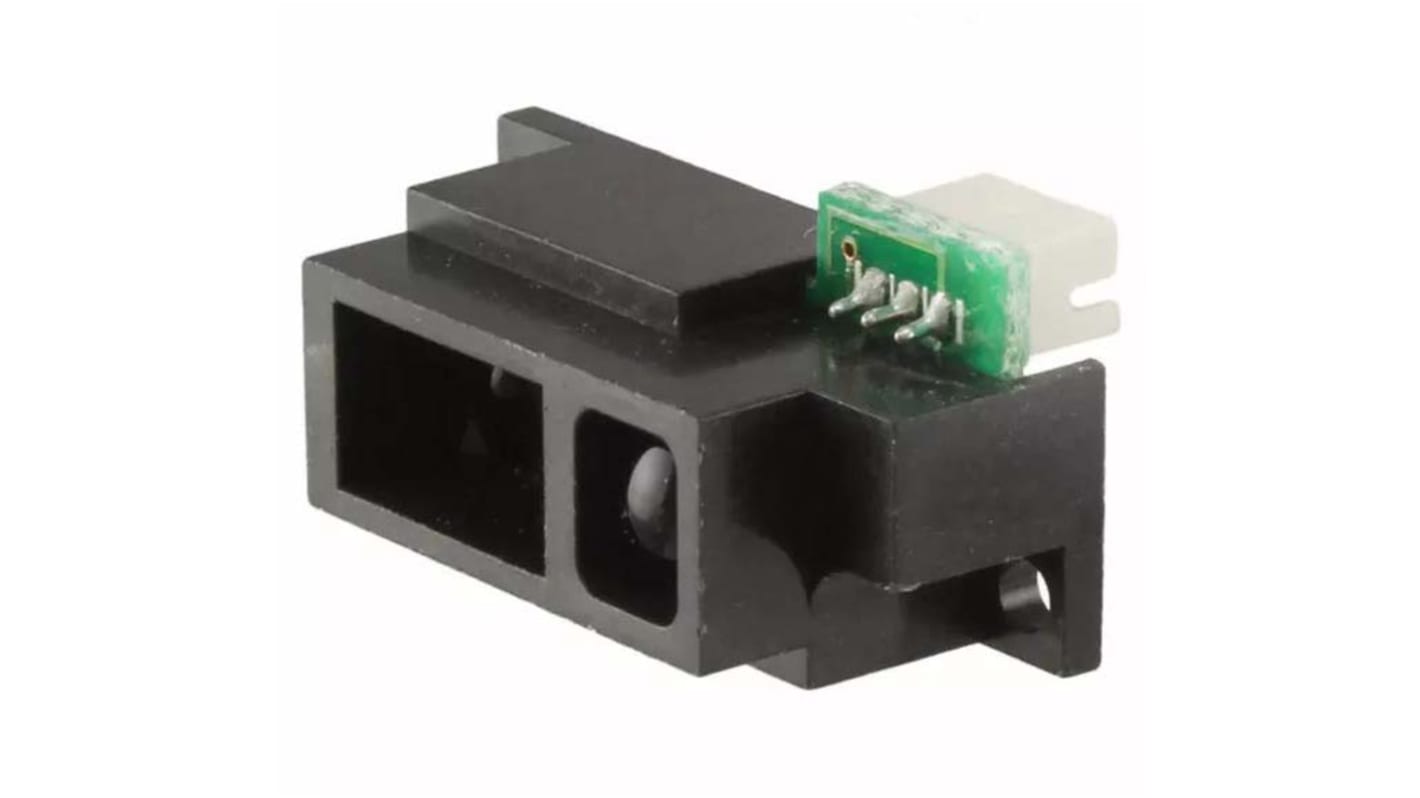

GP2Y0A51SK0F Sharp, SMT Reflective Sensor

View all Reflective Optical Sensors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
146-0786
Mfr. Part No.:
GP2Y0A51SK0F
Brand:
Sharp
Find similar products by selecting one or more attributes.
Select all

Brand

Sharp

Peak Sensor Distance

15cm

Mounting Type

Surface Mount

Dimensions

27 x 13.2 x 12mm

Height

12mm

Length

27mm

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-10°C

Output Signal Type

Analogue

Width

13.2mm

Operating Temperature Range

-10 → +60°C

GP2Y0A51SK0F is a distance measuring sensor unit, composed of an integrated combination of PSD (position sensitive detector) , IR-LED (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor.

Distance measuring sensor is united with PSD, infrared LED and signal processing circuit
Short measuring cycle (16.5ms)
Distance measuring range : 2 to 15 cm
Compact size (27.0 x 10.8 x 12.0mm)
Analog output type
