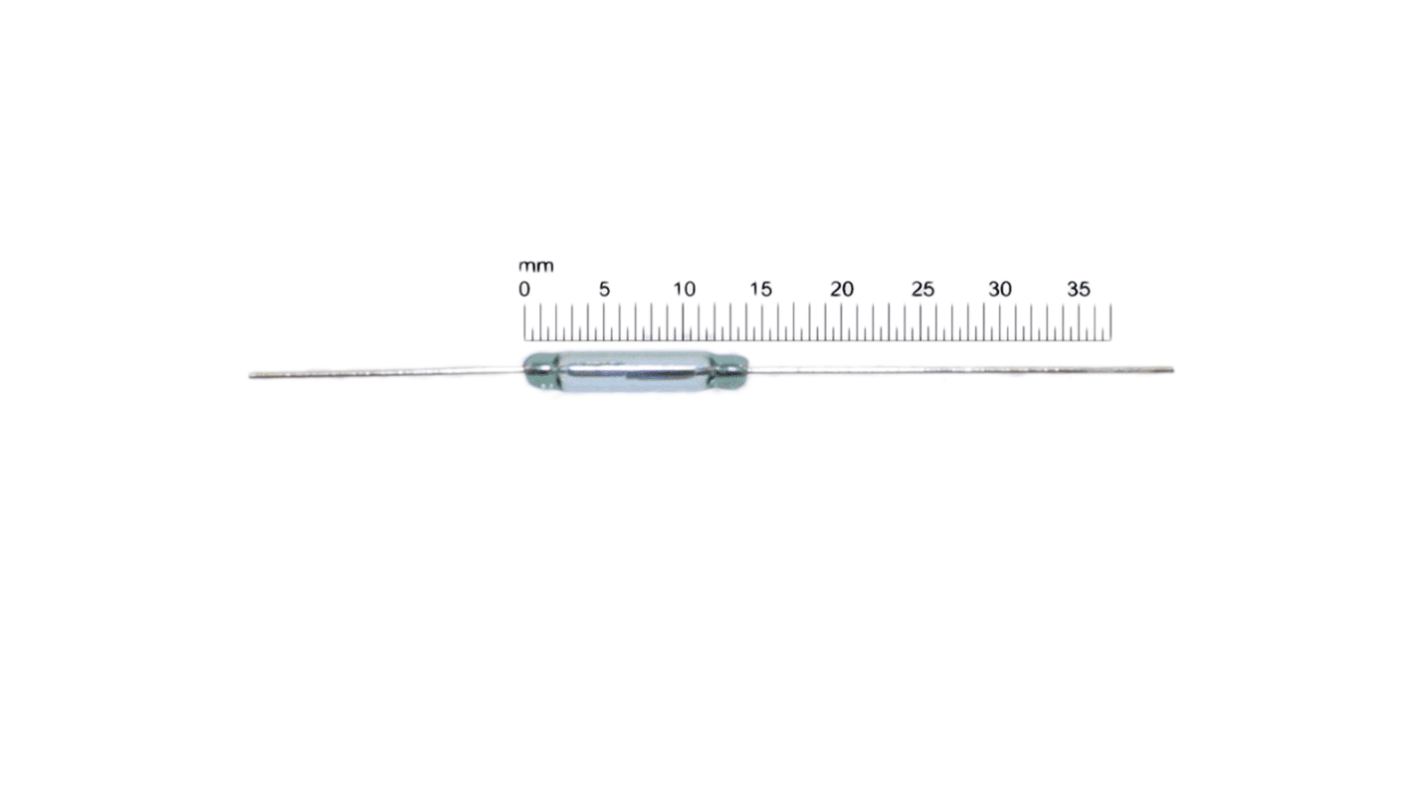

Assemtech SPDT Reed Switch, 400mA
- RS Stock No.:
- 909-2689
- Mfr. Part No.:
- RI-90
- Brand:
- Assemtech
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 909-2689
- Mfr. Part No.:
- RI-90
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Assemtech | |
Contact Configuration | SPDT | |
Maximum Switching Current | 400mA | |
Maximum Switching Power | 5W | |
Contact Resistance | 140mΩ | |
Contact Material | Ruthenium on Gold | |
Maximum Release Time | 1ms | |
Operating Time Including Bounce | 1ms | |
AT Value Range | 10-15AT | |
Width | 2.54 (Dia.)mm | |
Length | 14.3mm | |
Dimensions | 2.54 (Dia.) x 14.3mm | |
Select all | ||
---|---|---|
Brand Assemtech | ||
Contact Configuration SPDT | ||
Maximum Switching Current 400mA | ||
Maximum Switching Power 5W | ||
Contact Resistance 140mΩ | ||
Contact Material Ruthenium on Gold | ||
Maximum Release Time 1ms | ||
Operating Time Including Bounce 1ms | ||
AT Value Range 10-15AT | ||
Width 2.54 (Dia.)mm | ||
Length 14.3mm | ||
Dimensions 2.54 (Dia.) x 14.3mm | ||
- COO (Country of Origin):
- BE
Form A & C Reed Switches
These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Approvals
UL, CSA
