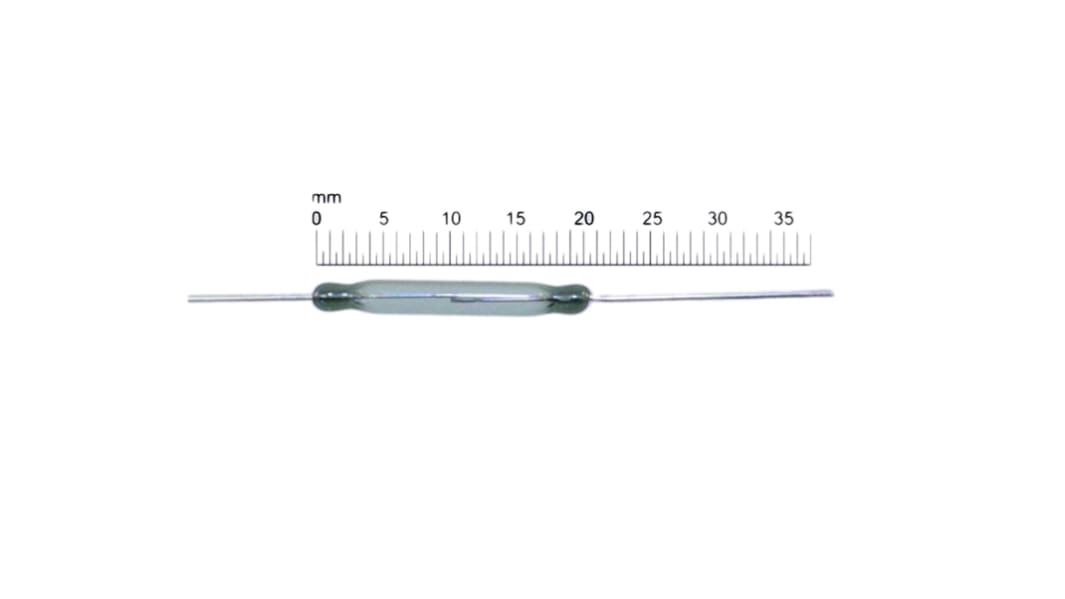

Assemtech SPST-NO PCB Reed Switch 1 A 200 V ac/dc
- RS Stock No.:
- 909-2645
- Mfr. Part No.:
- RI-46C
- Brand:
- Assemtech
Subtotal (1 bag of 10 units)*
£12.79
(exc. VAT)
£15.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 250 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 + | £1.279 | £12.79 |
*price indicative
- RS Stock No.:
- 909-2645
- Mfr. Part No.:
- RI-46C
- Brand:
- Assemtech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Assemtech | |
| Contact Configuration | SPST-NO | |
| Product Type | Reed Switch | |
| Maximum Switching Current | 1A | |
| Maximum Switching Power | 40W | |
| Maximum Switching Voltage | 200V ac/dc | |
| Contact Resistance | 90mΩ | |
| Contact Material | Ruthenium on Gold | |
| Maximum Release Time | 30μs | |
| Operating Time Including Bounce | 0.35ms | |
| Terminal Type | Wire | |
| AT Value Range | 46 to 70 AT | |
| Mount Type | PCB | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 20.5mm | |
| Standards/Approvals | ISO | |
| Series | RI | |
| Select all | ||
|---|---|---|
Brand Assemtech | ||
Contact Configuration SPST-NO | ||
Product Type Reed Switch | ||
Maximum Switching Current 1A | ||
Maximum Switching Power 40W | ||
Maximum Switching Voltage 200V ac/dc | ||
Contact Resistance 90mΩ | ||
Contact Material Ruthenium on Gold | ||
Maximum Release Time 30μs | ||
Operating Time Including Bounce 0.35ms | ||
Terminal Type Wire | ||
AT Value Range 46 to 70 AT | ||
Mount Type PCB | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Length 20.5mm | ||
Standards/Approvals ISO | ||
Series RI | ||
- COO (Country of Origin):
- BE
Form A & C Reed Switches
These dry-reed switches have been hermetically sealed in a gas-filled glass envelope. Actuation is done with an electro-magnet, a permanent magnet or a combination of both. If you prefer, they can be placed alongside a coil and actuated when a current is applied to the coil. They feature single pole, single throw, normally open contacts and have two magnetically actuated reeds.
There is a wide selection to choose from. You can select different lengths and each length has various sensitivity options.
Hermetically sealed
Form A (SPNO) or form C (SPCO) ruthenium or rhodium plated contacts
Mechanical Life 108 Operations
For suitable magnets, see stk. no 362-2401 typically
Approvals
UL, CSA
