SRC Devices Reed Relay, 5V dc Coil, DPST, 200V dc Max, 140 Ω
- RS Stock No.:
- 103-4896
- Mfr. Part No.:
- PRMA 2A05
- Brand:
- SRC Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 103-4896
- Mfr. Part No.:
- PRMA 2A05
- Brand:
- SRC Devices
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SRC Devices | |

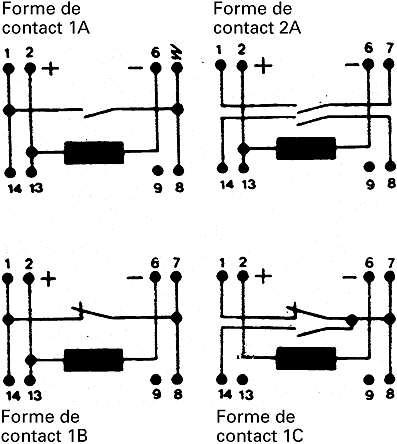

| Contact Configuration | DPST | |
| Coil Voltage | 5V dc | |
| Maximum Switching Voltage AC | 200V ac | |
| Maximum Switching Voltage DC | 200V dc | |
| Coil Resistance | 140 Ω | |
| Length | 19.6mm | |
| Height | 7.33mm | |
| Depth | 8.9mm | |
| Dimensions | 19.6 x 8.9 x 7.33mm | |
| Isolation Coil To Contact | 1.4kV ac/dc | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Ruthenium | |
| Terminal Type | Through Hole | |
| Operating Time Including Bounce | 0.25ms | |
| Maximum Switching Power DC | 10 W | |
| Operating Temperature Range | -40 → +80°C | |
| Maximum Operating Temperature | +80°C | |
| Life | 500 (Electrical) cycles | |
Select all | ||
|---|---|---|
Brand SRC Devices | ||
Contact Configuration DPST | ||
Coil Voltage 5V dc | ||
Maximum Switching Voltage AC 200V ac | ||
Maximum Switching Voltage DC 200V dc | ||
Coil Resistance 140 Ω | ||
Length 19.6mm | ||
Height 7.33mm | ||
Depth 8.9mm | ||
Dimensions 19.6 x 8.9 x 7.33mm | ||
Isolation Coil To Contact 1.4kV ac/dc | ||
Minimum Operating Temperature -40°C | ||
Contact Material Ruthenium | ||
Terminal Type Through Hole | ||
Operating Time Including Bounce 0.25ms | ||
Maximum Switching Power DC 10 W | ||
Operating Temperature Range -40 → +80°C | ||
Maximum Operating Temperature +80°C | ||
Life 500 (Electrical) cycles | ||
