RS PRO 6m, Polyurethane Recoil Hose, with BSPT 1/4" Male connector
- RS Stock No.:
- 917-2359
- Brand:
- RS PRO
29 In stock - FREE next working day delivery available
16 available from Europe for delivery within 1 working day(s).
Added
Price Each
£45.21
(exc. VAT)
£54.25
(inc. VAT)
| Units | Per unit |
| 1 + | £45.21 |
- RS Stock No.:
- 917-2359
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

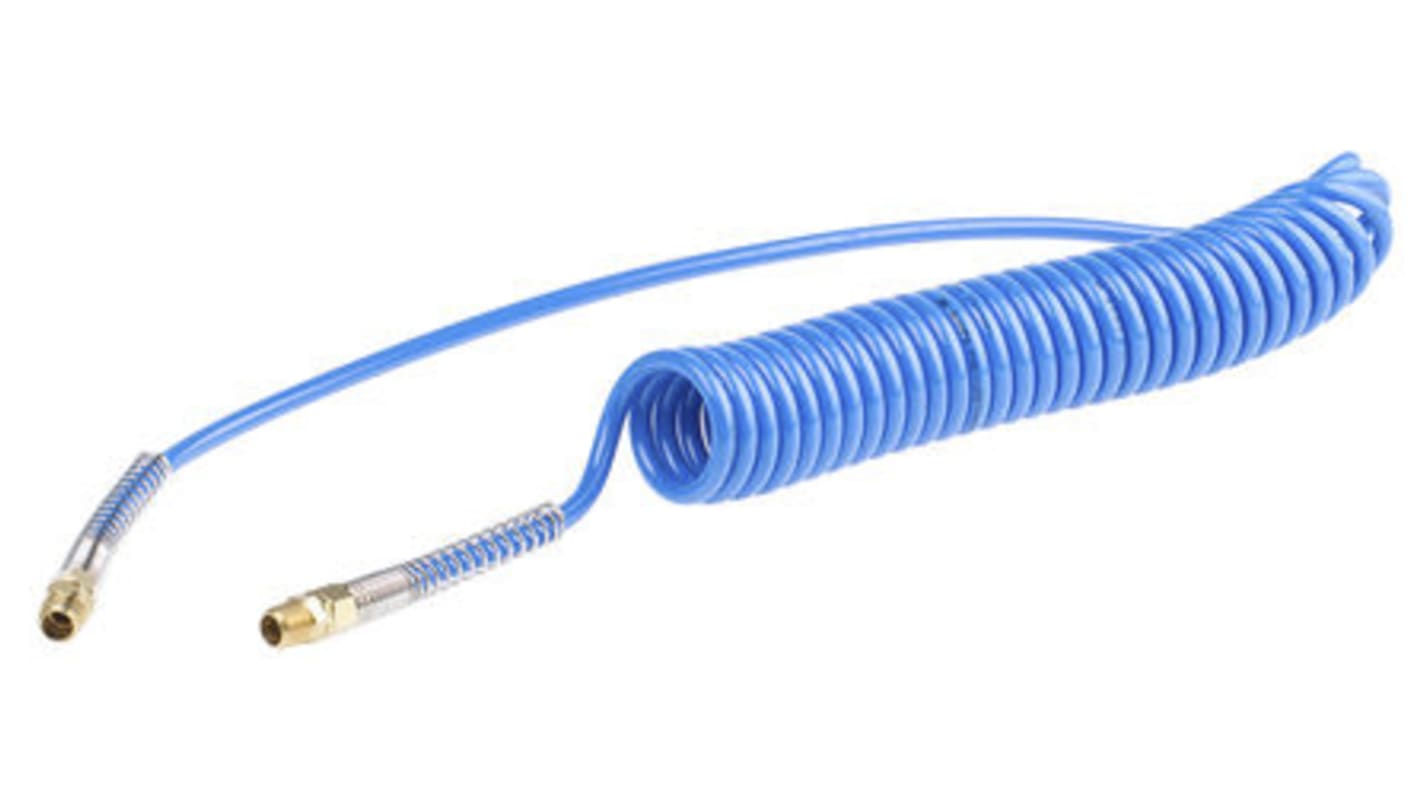

RS PRO 6 m, PUR Recoil Hose with BSPT 1/4" Male Connector
If you need a simple and secure way to connect your pneumatic equipment, turn to this 6 m recoil hose from RS PRO. You can use it to move both air and liquids, including oil and chemicals. This makes it a suitable option for a variety of commercial and residential contexts, such as farmyards and garages.
The PUR (polyurethane material) is highly durable and flexible and offers good resistance to kinks and abrasion. This makes it a long-lasting choice. As the 44 coils take up very little room when compressed and expand quickly when needed, it's an excellent option for tight spaces.
As part of the RS PRO range, this component has undergone testing for quality and reliability. You'll find it used for instrumentation lines, robotics applications and pneumatic control systems.
The PUR (polyurethane material) is highly durable and flexible and offers good resistance to kinks and abrasion. This makes it a long-lasting choice. As the 44 coils take up very little room when compressed and expand quickly when needed, it's an excellent option for tight spaces.
As part of the RS PRO range, this component has undergone testing for quality and reliability. You'll find it used for instrumentation lines, robotics applications and pneumatic control systems.
Features and Benefits
- Blue colour
- Connector is a male BSPT (British Standard Pipe Taper) 1/4 in
- Made from PUR (polyurethane)
- Maximum operating length of 6 m
- Maximum operating pressure of 10 bar
- Operating temperature range of -20°C to +65°C
- 44 windings
- Features excellent resistance to abrasion and very good kink-resistant characteristics
- Inside tube diameter of 6.5 mm
- Outside tube diameter of 10 mm
Specifications
Attribute | Value |
|---|---|
| Maximum Operating Length | 6m |
| Tube Outside Diameter | 10mm |
| Connector | BSPT 1/4" Male |
| Colour | Blue |
| Tube Inside Diameter | 6.5mm |
| Manufacturer Series | CPC |
| Material | Polyurethane |
| Maximum Operating Pressure | 10bar |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +65°C |
| Number of Windings | 44 |
| Special Features | Excellent Resistance to Abrasion, Very Good Kink Resistant Characteristics |
