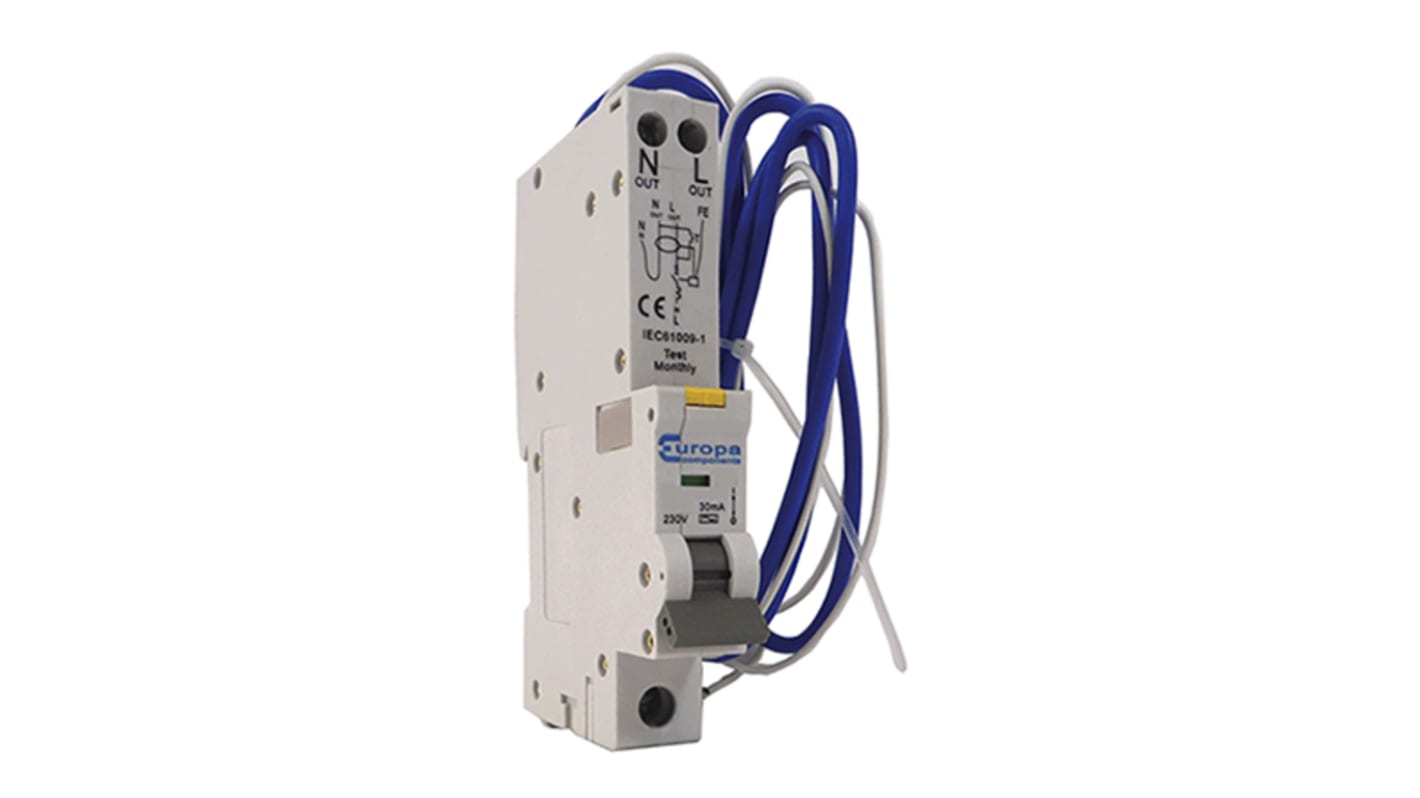

Europa EUC7R 10 A RCBO, 1P Trip Sensitivity 30mA Type C

  • RS Stock No. 916-0265
  • Mfr. Part No. EUC7R.10/1C
  • Brand Europa
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Europacomponents EUC7R Series RCBOs

Europa Components EUC7R range of residual current circuit breakers with overload protection. These RCBOs have the same width as an MCB so they can be retro-fitted in a consumer unit which requires RCD protection. The unit has a rated residual operating current of 30 mA and a rated short circuit capacity of 10 kA. Designed for DIN Rail mounting in consumer units and 3 phase distribution boards.

1 Pole
Curve C
Terminal capacity from 1mm² to 16mm²
Operating temperature: -25°C to 40°C
35mm DIN Rail mounting
IP20

Standards

IEC 61009, EN 61009

Approvals

CE, SEMKO

Europacomponents Circuit Protection Devices

Specifications
Attribute Value
Series EUC7R
Current Rating 10 A
Trip Sensitivity 30mA
Number of Poles 1P
Mounting Style DIN Rail Mount
Application Industrial
Terminal Contact Type Screw
Tripping Characteristics Type C
Overall Width 119mm
Reset Actuator Type Toggle Switch
Priced to Clear Yes
Circuit Breaker Type RCBO
Overall Dimensions 18 x 119 x 78mm
Overall Length 18mm
Overall Depth 78mm
Rated AC Voltage 230 V
1 In stock for FREE next working day delivery
Price Each
£ 25.90
(exc. VAT)
£ 31.08
(inc. VAT)
Units
Per unit
1 +
£25.90
