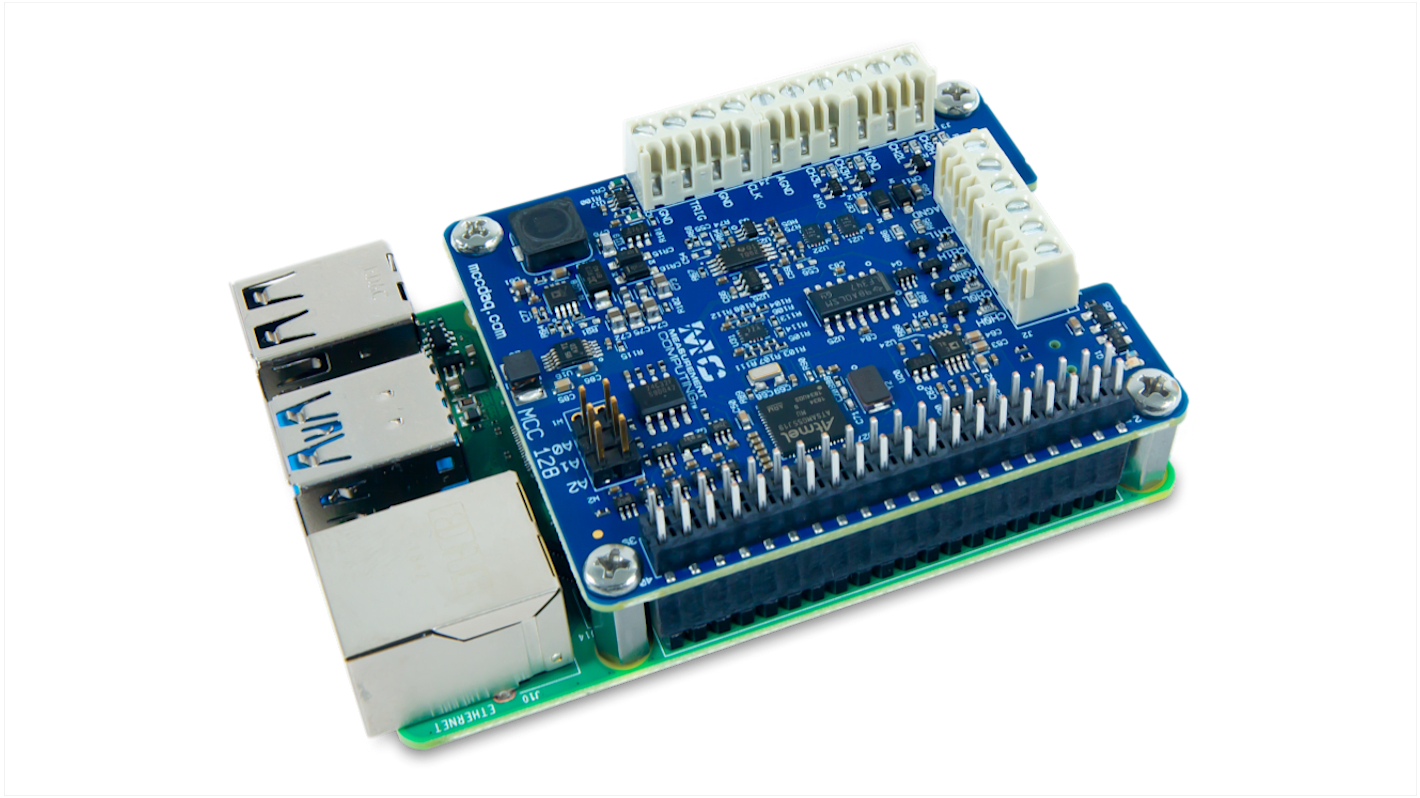

MCC 128 voltage measurement HAT (Hardware Attached on Top) board is designed for use with Raspberry Pi based data acquisition systems. Digilent MCC 128 DAQ HAT delivers multiple input ranges (+/-10 V, +/-5 V, +/-2 V, +/-1 V), includes an external scan clock and external digital trigger input. Complete with 2 x 20 Header connectors and Screw terminal connections.

The board comprises of eight single ended or 4 differential voltage inputs with 16-bit resolution and a sample rate of 100 kS/ or 320 kS/s aggregate for stacked boards where eight boards can deliver up to 64 channels of data. The MCC 128 HAT add-on board sample buffers allow high-speed data acquisition and the 40W GPIO (general purpose input/output) connector conforms to Raspberry Pi HAT specifications.

Software for MCC 128 DAQ HAT includes programming API C/C++® and Python™ examples and an open-source library. Comprehensive API and hardware documentation are also provided, supported Operating Systems such as Linux®/Raspbian.

Note: Raspberry Pi is not included.
