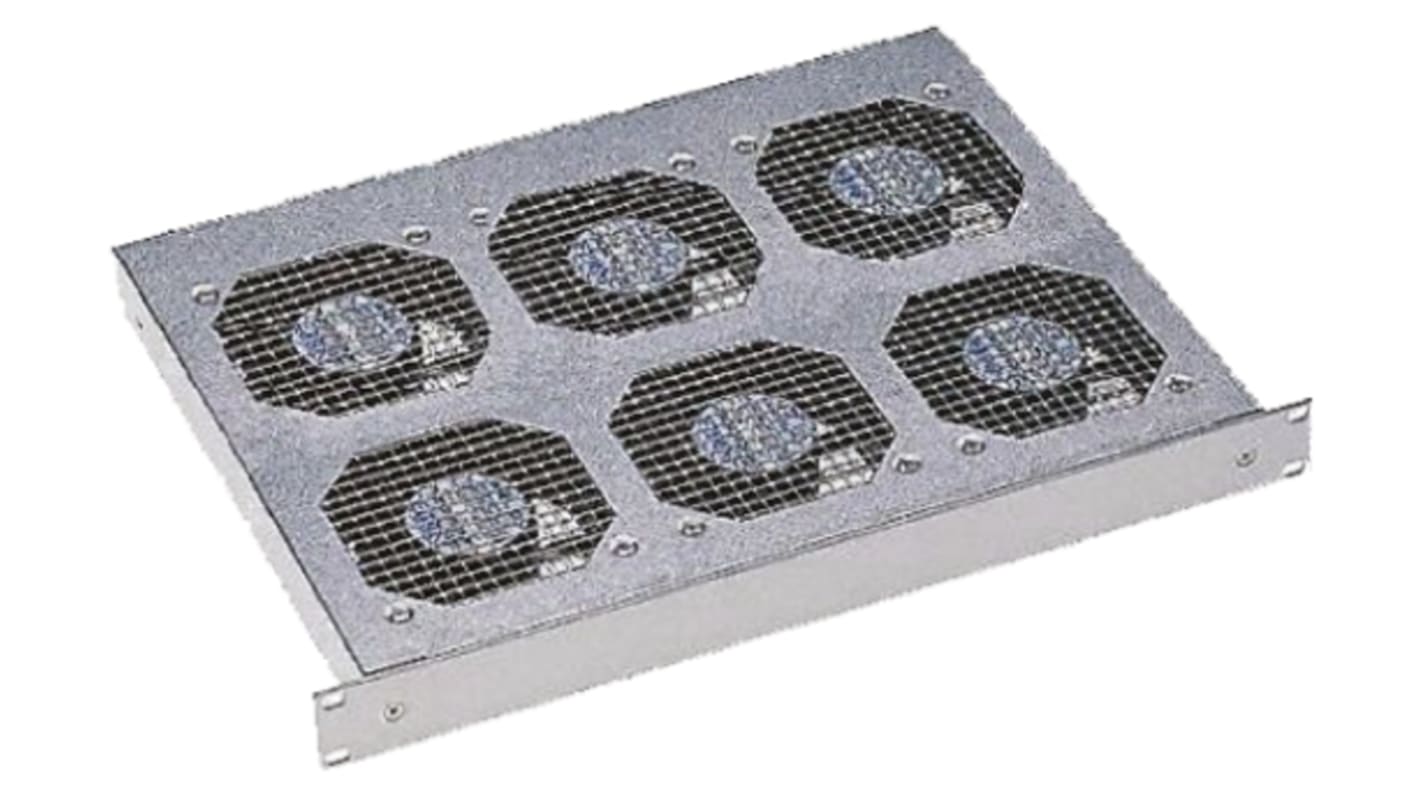

6 Fan Rack Mount Fan Tray, 1U

  • RS Stock No. 291-8701
  • Mfr. Part No. 10713104
  • Brand Schroff
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Fan Tray

Contact protected to EN292, T1 and T2
Can be adapted to sub racks
Mechanical retainer for mains cable
Ambient temperature +70°C maximum
3 fan tray 230Vac 15W @ 50Hz, Air flow 162 m³/hr, Maximum static pressure 73Pa, Noise level (per fan) 37dB(A)

Note

Technical data applies to individual fans

Specifications
Attribute Value
Type Fan Tray
Mounting Rack
Rack Units 1U
Number of Fans 6
Air Flow 162 → 192m³/h
Dimensions 483 x 330 x 43.5mm
Height 43.5mm
Length 483mm
Width 330mm
10 In stock for FREE next working day delivery
Price Each
£ 284.79
(exc. VAT)
£ 341.75
(inc. VAT)
Units
Per unit
1 +
£284.79
