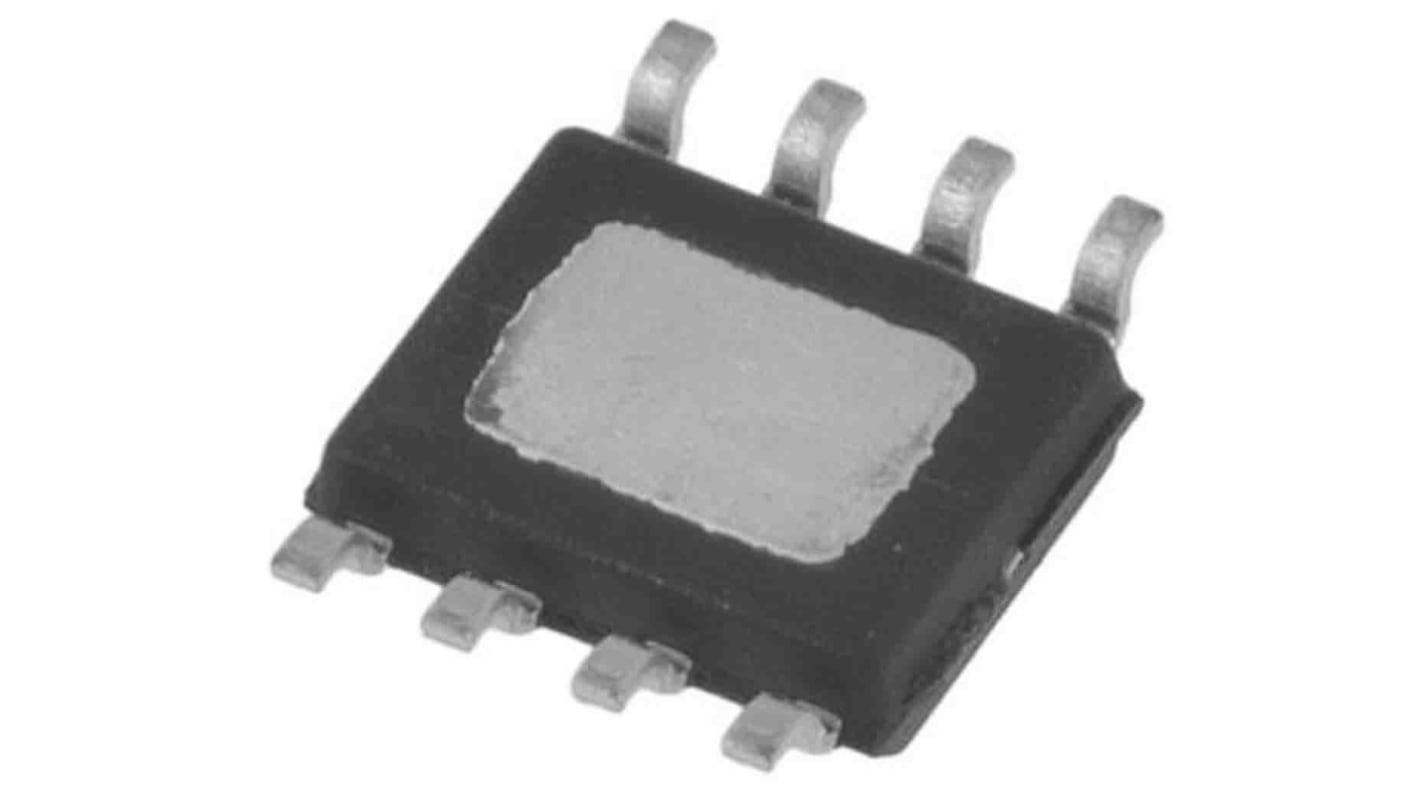

STMicroelectronics A6727TR, PWM Controller, 300 kHz 8-Pin, SO-8
- RS Stock No.:
- 202-5464
- Mfr. Part No.:
- A6727TR
- Brand:
- STMicroelectronics
Available to back order for despatch when stock is available
Price Each (In a Pack of 5)
£1.58
(exc. VAT)
£1.90
(inc. VAT)
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.58 | £7.90 |
| 50 - 95 | £1.342 | £6.71 |
| 100 - 245 | £1.002 | £5.01 |
| 250 - 995 | £0.976 | £4.88 |
| 1000 + | £0.952 | £4.76 |
*price indicative
- RS Stock No.:
- 202-5464
- Mfr. Part No.:
- A6727TR
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
The STMicroelectronics Single-phase PWM controller has complete control logic, protection and reference voltage to realize a general DC-DC converter by using a compact SO-8 package. It provides programmable overcurrent protection as well as over and undervoltage protection.
High-current integrated drivers
Adjustable output voltage
Adjustable output voltage
Specifications
Attribute | Value |
|---|---|
| Maximum Switching Frequency | 300 kHz |
| Start-up Supply Current | 0.5mA |
| Maximum Source Current | 1500mA |
| Maximum Sink Current | 0.065mA |
| Maximum Supply Current | 6 mA |
| Package Type | SO-8 |
| Pin Count | 8 |
