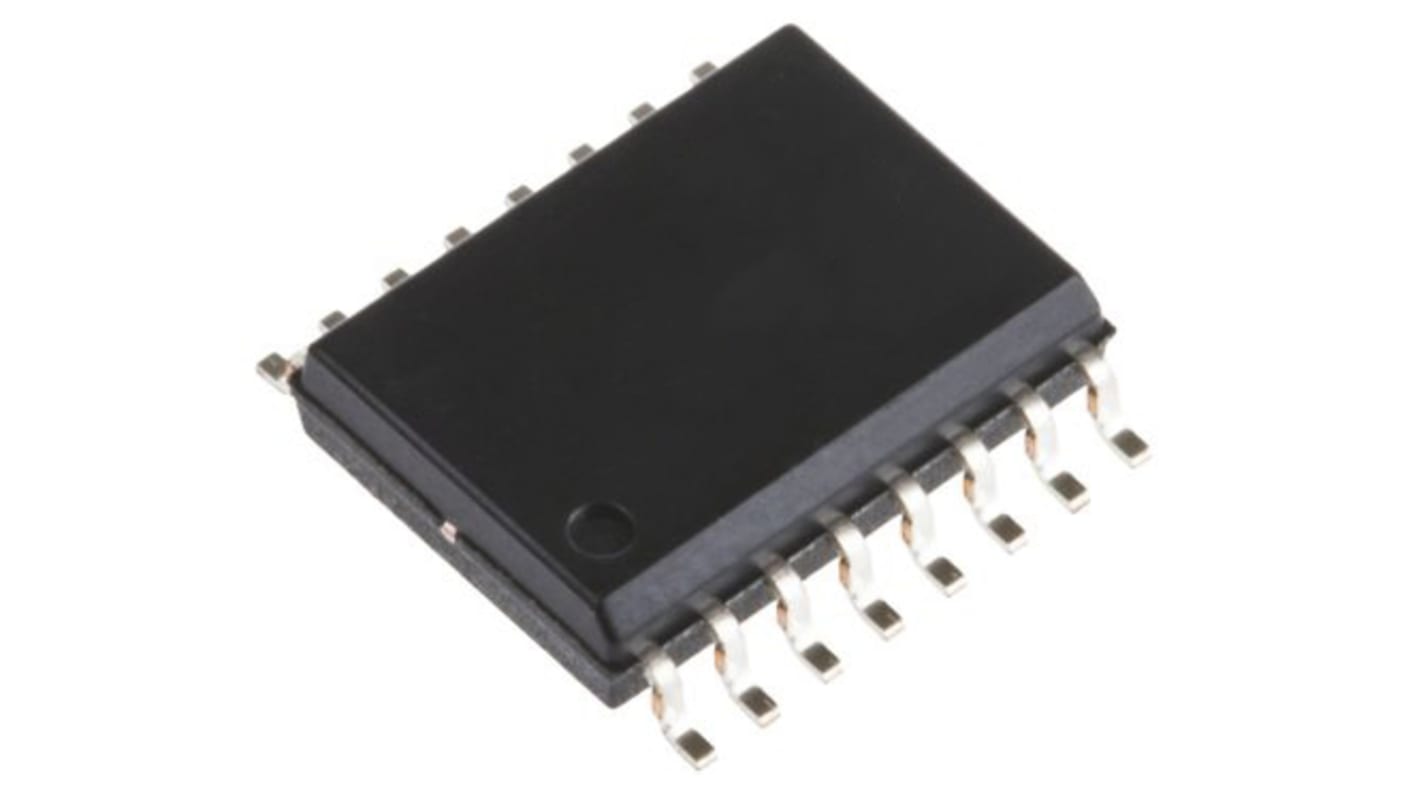

onsemi NCP13992AADR2G, PWM Controller, 20 V, 750 kHz 16-Pin, SOIC
- RS Stock No.:
- 178-4542P
- Mfr. Part No.:
- NCP13992AADR2G
- Brand:
- onsemi
Discontinued
- RS Stock No.:
- 178-4542P
- Mfr. Part No.:
- NCP13992AADR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Switching Frequency | 750 kHz | |
| Output Current | 0.5 A, 1 A | |
| Control Method | Current | |
| Mounting Type | Surface Mount | |
| Fall Time | 50ns | |
| Rise Time | 80ns | |
| Package Type | SOIC | |
| Pin Count | 16 | |
| Topology | Resonant | |
| Maximum Duty Cycle | 50% | |
| Dimensions | 10 x 3.9 x 1.75mm | |
| Length | 10mm | |
| PWM Controller Type | Current Mode | |
| Width | 3.9mm | |
| Height | 1.75mm | |
| Minimum Operating Temperature | -50 °C | |
| Maximum Operating Supply Voltage | 20 V | |
| Maximum Operating Temperature | +150 °C | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Switching Frequency 750 kHz | ||
Output Current 0.5 A, 1 A | ||
Control Method Current | ||
Mounting Type Surface Mount | ||
Fall Time 50ns | ||
Rise Time 80ns | ||
Package Type SOIC | ||
Pin Count 16 | ||
Topology Resonant | ||
Maximum Duty Cycle 50% | ||
Dimensions 10 x 3.9 x 1.75mm | ||
Length 10mm | ||
PWM Controller Type Current Mode | ||
Width 3.9mm | ||
Height 1.75mm | ||
Minimum Operating Temperature -50 °C | ||
Maximum Operating Supply Voltage 20 V | ||
Maximum Operating Temperature +150 °C | ||
- COO (Country of Origin):
- PH
The NCP13992 is a high performance current mode controller for half bridge resonant converters. This controller implements 600 V gate drivers, simplifying layout and reducing external component count. The built−in Brown−Out input function eases implementation of the controller in all applications. In applications where a PFC front stage is needed, the NCP13992 features a dedicated output to drive the PFC controller. This feature together with dedicated quiet skip mode technique further improves light load efficiency of the whole application.
Improves Light Load Efficiency avoiding transformer acoustic noise
Built-in safety protection, improved transient response
Improved efficiency
Built-in safety protection, improved transient response
Improved efficiency
