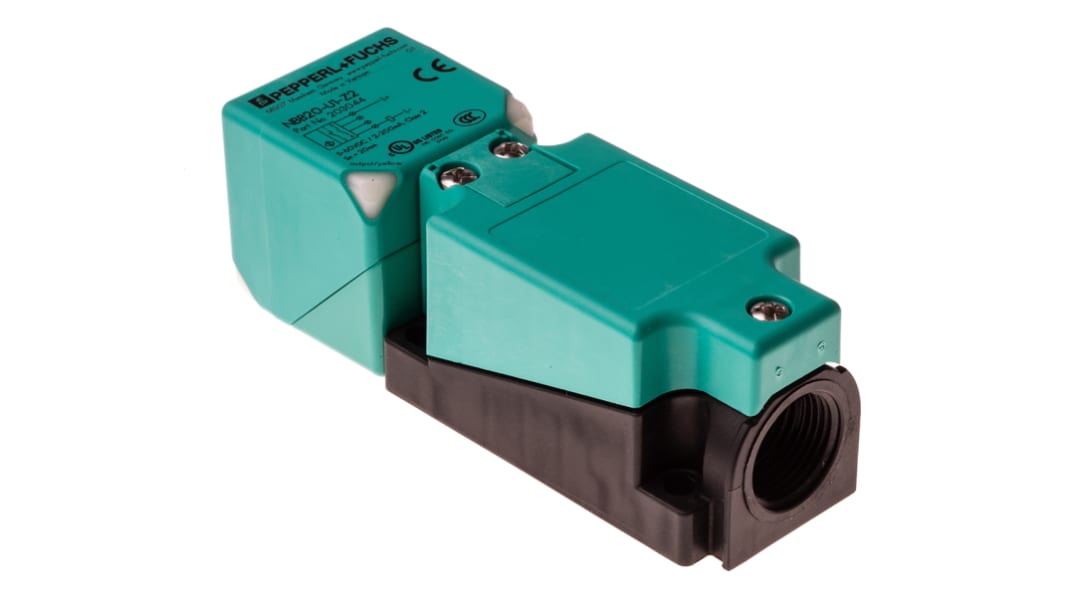

Pepperl + Fuchs Inductive Block Proximity Sensor, 20 mm Detection, 2-Wire NO/NC, 5 → 60 V dc
- RS Stock No.:
- 877-1589
- Distrelec Article No.:
- 301-23-566
- Mfr. Part No.:
- NBB20-U1-Z2
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£94.00
(exc. VAT)
£112.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 24 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £94.00 |
*price indicative
- RS Stock No.:
- 877-1589
- Distrelec Article No.:
- 301-23-566
- Mfr. Part No.:
- NBB20-U1-Z2
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Sensor Technology | Inductive | |
| Detection Range | 20 mm | |
| Body Style | Block | |
| Digital Switching Output Type | 2-Wire | |
| Output Function | NO/NC | |
| Connection Type | Screw Terminal | |
| Supply Voltage | 5 → 60 V dc | |
| Length | 118mm | |
| IP Rating | IP68, IP69K | |
| Mounting Type | Flush | |
| Width | 40mm | |
| Housing Material | Polyamide | |
| Maximum DC Voltage | 60V | |
| Minimum Operating Temperature | -25°C | |
| Short Circuit Overload Protection | Yes | |
| Standards Met | CCC, CSA, EN 60497-5-2: 2007, IEC 60947-5-2: 2007, UL | |
| Maximum Operating Temperature | +85°C | |
| Maximum Switching Frequency | 250Hz | |
| Depth | 40mm | |
| Switching Current | 200 mA | |
| Shielding | Unshielded | |
| Switching Frequency | 250 Hz | |
| Reverse Polarity Protection | Yes | |
Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Sensor Technology Inductive | ||
Detection Range 20 mm | ||
Body Style Block | ||
Digital Switching Output Type 2-Wire | ||
Output Function NO/NC | ||
Connection Type Screw Terminal | ||
Supply Voltage 5 → 60 V dc | ||
Length 118mm | ||
IP Rating IP68, IP69K | ||
Mounting Type Flush | ||
Width 40mm | ||
Housing Material Polyamide | ||
Maximum DC Voltage 60V | ||
Minimum Operating Temperature -25°C | ||
Short Circuit Overload Protection Yes | ||
Standards Met CCC, CSA, EN 60497-5-2: 2007, IEC 60947-5-2: 2007, UL | ||
Maximum Operating Temperature +85°C | ||
Maximum Switching Frequency 250Hz | ||
Depth 40mm | ||
Switching Current 200 mA | ||
Shielding Unshielded | ||
Switching Frequency 250 Hz | ||
Reverse Polarity Protection Yes | ||
- COO (Country of Origin):
- ID
Varikont Inductive Proximity Sensors - Limit Switch Style
These Varikont sensors have an extraordinary reliability and robustness under extreme conditions and their advanced technology guarantees an almost unlimited range of applications. The four-corner power and output status LEDs enable 360º visibility so that the operating and switching states can be monitored from every angle.
Range of sensing distance options to suit the application requirements
Superior EMC intereference immunity
Operating temperature range from -25 ºC to +85 ºC
Easy replacement, no rewiring required
Robust, waterproof and UV resistant
Compact dimensions
Superior EMC intereference immunity
Operating temperature range from -25 ºC to +85 ºC
Easy replacement, no rewiring required
Robust, waterproof and UV resistant
Compact dimensions
Block and Limit Switch Style
All dc switches in this range have reverse polarity and short circuit protection. Embeddable versions can be flush mounted in metal.
