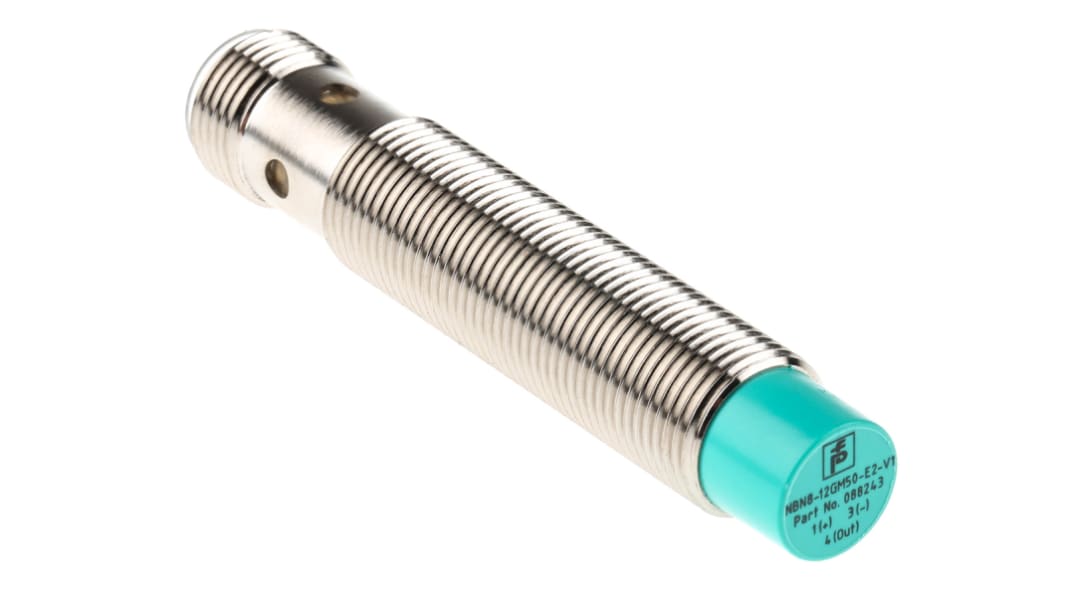

Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, PNP Output, 5 → 36 V dc, IP68

RS Stock No.:: 831-3736
Mfr. Part No.:: NBN8-12GM50-E2-V1
Brand:: Pepperl + Fuchs

Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 8 mm Detection, PNP Output, 5 → 36 V dc, IP68

18 In stock - FREE next working day delivery available

12 available from Europe for delivery within 2 working day(s).

Price Each

£64.95

(exc. VAT)

£77.94

(inc. VAT)

Units	Per unit
1 - 4	£64.95
5 +	£62.31

RS Stock No.:: 831-3736
Mfr. Part No.:: NBN8-12GM50-E2-V1
Brand:: Pepperl + Fuchs

Technical Reference

Legislation and Compliance

COO (Country of Origin):: VN

Product Details

Extended Sensing Range

These Pepperl + Fuchs inductive proximity sensors are cylindrical in design and are available with an extended sensing range of up to 30mm to suit a number of different applications.

Features and benefits

LED indication
Embeddable or flush installation
IP67
Supply voltage 10 to 30Vdc
Short circuit and reverse polarity protection
Pre-wired types have 2m PVC cable
Plug-in types have M12 type V1 connector

Pepperl + Fuchs

Specifications

Attribute	Value
Thread Size	M12 x 1
Sensor Technology	Inductive
Body Style	Barrel
Output Type	PNP
Detection Range	8 mm
Terminal Type	4-Pin M12 Connector
Supply Voltage	5 → 36 V dc
IP Rating	IP68
Length	65mm
Maximum DC Voltage	36V
Mounting Type	Non-Flush
Switching Current	200 mA
Maximum Switching Frequency	1650Hz
Shielding	Partial
Housing Material	Brass, White Bronze Coated
Maximum Operating Temperature	+85°C
Reverse Polarity Protection	Yes
Minimum Operating Temperature	-40°C
Short Circuit Overload Protection	Yes
