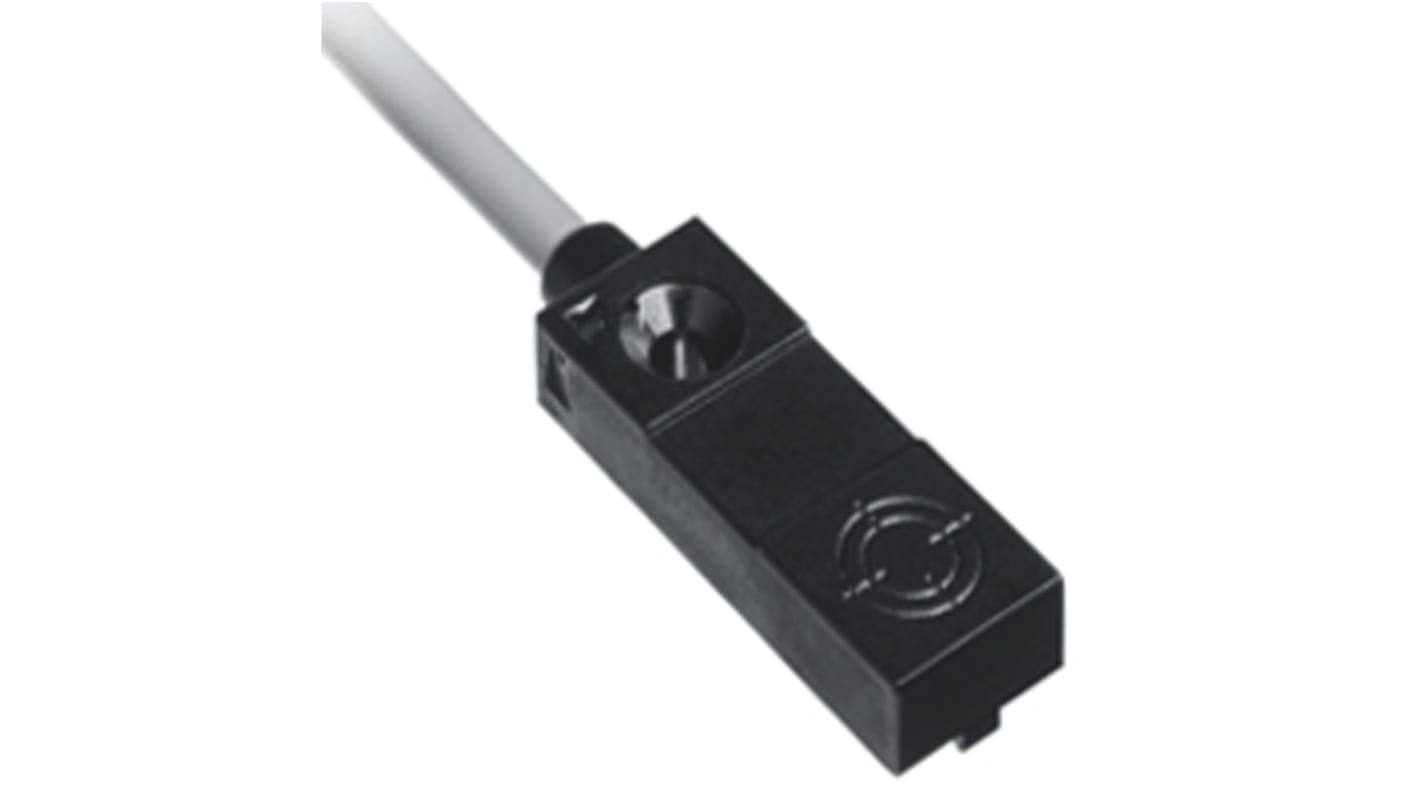

Pepperl + Fuchs Inductive Block-Style Proximity Sensor, 4 mm Detection, NPN Output, 10 → 30 V dc, IP67
- RS Stock No.:
- 831-3723
- Mfr. Part No.:
- NBN4-F29-E0
- Brand:
- Pepperl + Fuchs
Bulk discount available
Subtotal (1 unit)*
£61.16
(exc. VAT)
£73.39
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 3 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 2 | £61.16 |
| 3 + | £58.66 |
*price indicative
- RS Stock No.:
- 831-3723
- Mfr. Part No.:
- NBN4-F29-E0
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Sensor Technology | Inductive | |
| Body Style | Block | |
| Output Type | NPN | |
| Detection Range | 4 mm | |
| Terminal Type | Cable | |
| Supply Voltage | 10 → 30 V dc | |
| IP Rating | IP67 | |
| Length | 27mm | |
| Width | 10mm | |
| Depth | 6mm | |
| Maximum DC Voltage | 30V | |
| Mounting Type | Non-Flush | |
| Switching Current | 100 mA | |
| Shielding | Shielded | |
| Maximum Operating Temperature | +70°C | |
| Maximum Switching Frequency | 1kHz | |
| Housing Material | PPS | |
| Minimum Operating Temperature | -25°C | |
| Reverse Polarity Protection | Yes | |
| Short Circuit Overload Protection | Yes | |
| Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Sensor Technology Inductive | ||
Body Style Block | ||
Output Type NPN | ||
Detection Range 4 mm | ||
Terminal Type Cable | ||
Supply Voltage 10 → 30 V dc | ||
IP Rating IP67 | ||
Length 27mm | ||
Width 10mm | ||
Depth 6mm | ||
Maximum DC Voltage 30V | ||
Mounting Type Non-Flush | ||
Switching Current 100 mA | ||
Shielding Shielded | ||
Maximum Operating Temperature +70°C | ||
Maximum Switching Frequency 1kHz | ||
Housing Material PPS | ||
Minimum Operating Temperature -25°C | ||
Reverse Polarity Protection Yes | ||
Short Circuit Overload Protection Yes | ||
- COO (Country of Origin):
- ID
Pepperl+Fuchs Inductive Sensors
Inductive sensors are available with different sensing and temperature ranges to suit a variety of industrial applications.
Block style
Flush or embeddable installation
LED indication
Flush or embeddable installation
LED indication
