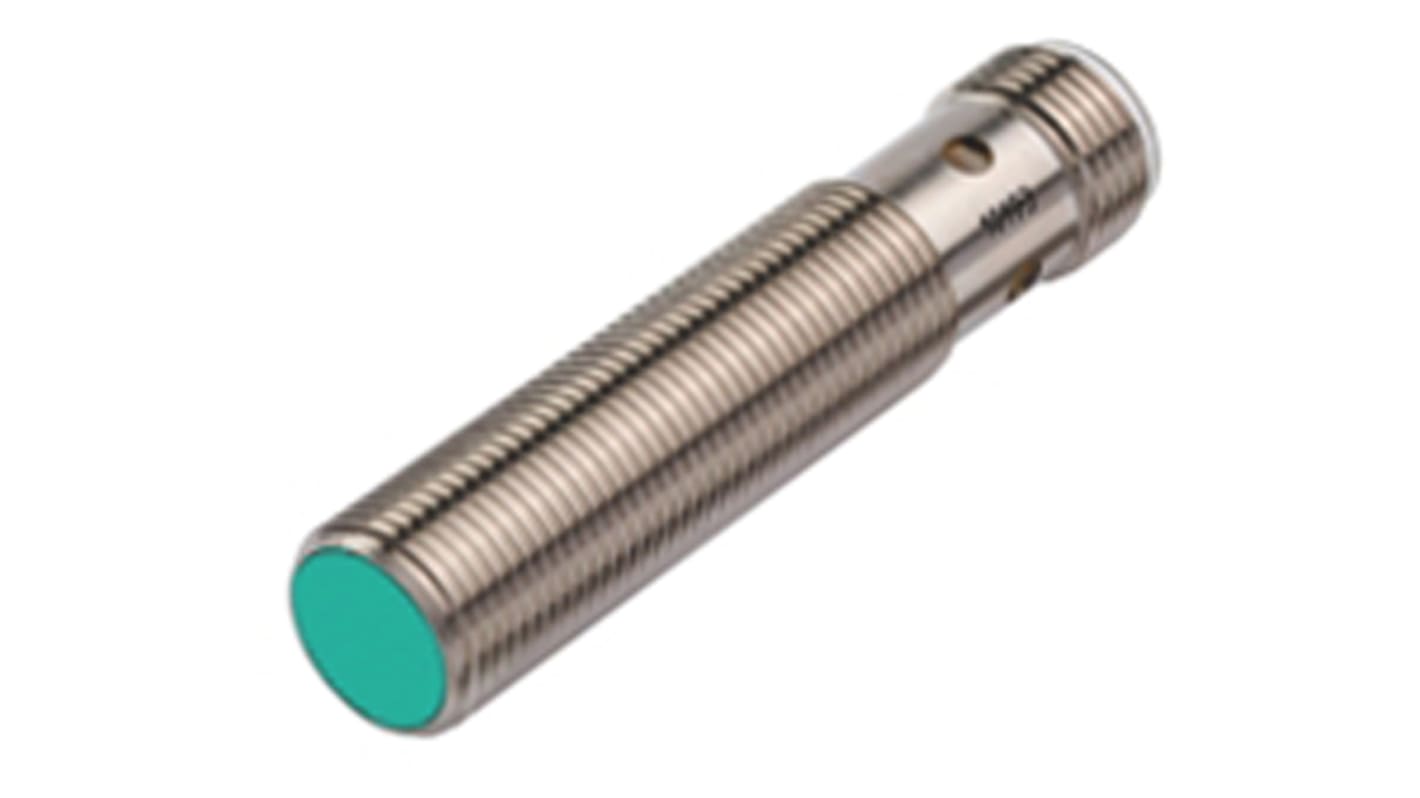

Pepperl + Fuchs NBB2-12GM40-Z0-V1 Threaded Barrel Inductive Proximity Sensor, M12 2-Wire 30V dc 2 mm 60 V dc 100mA
- RS Stock No.:
- 831-3521
- Distrelec Article No.:
- 301-23-554
- Mfr. Part No.:
- NBB2-12GM40-Z0-V1
- Brand:
- Pepperl + Fuchs
Subtotal (1 unit)*
£57.99
(exc. VAT)
£69.59
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 18 May 2026
- Plus 29 unit(s) shipping from 24 July 2026
- Plus 18 unit(s) shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.99 |
*price indicative
- RS Stock No.:
- 831-3521
- Distrelec Article No.:
- 301-23-554
- Mfr. Part No.:
- NBB2-12GM40-Z0-V1
- Brand:
- Pepperl + Fuchs
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pepperl + Fuchs | |
| Product Type | Inductive Proximity Sensor | |
| Thread Size | M12 | |
| Body Style | Threaded Barrel | |
| Length | 43mm | |
| IP Rating | IP67 | |
| Mount Type | Flush | |
| Terminal Type | 4-Pin M12 | |
| Housing Material | Brass Nickel Plated | |
| Maximum Supply Voltage | 30V dc | |
| Width | 12mm | |
| Maximum Detection | 2mm | |
| Maximum DC Voltage | 60V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 60947-5-2:2007, IEC 60947-5-2:2007 | |
| Output Type | 2-Wire | |
| Shielding | Shielded | |
| Switching Current | 100mA | |
| Maximum Switching Frequency | 1kHz | |
| Depth | 12mm | |
| Select all | ||
|---|---|---|
Brand Pepperl + Fuchs | ||
Product Type Inductive Proximity Sensor | ||
Thread Size M12 | ||
Body Style Threaded Barrel | ||
Length 43mm | ||
IP Rating IP67 | ||
Mount Type Flush | ||
Terminal Type 4-Pin M12 | ||
Housing Material Brass Nickel Plated | ||
Maximum Supply Voltage 30V dc | ||
Width 12mm | ||
Maximum Detection 2mm | ||
Maximum DC Voltage 60V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 60947-5-2:2007, IEC 60947-5-2:2007 | ||
Output Type 2-Wire | ||
Shielding Shielded | ||
Switching Current 100mA | ||
Maximum Switching Frequency 1kHz | ||
Depth 12mm | ||
- COO (Country of Origin):
- ID
Standard Sensing Range
A range of Pepperl + Fuchs inductive sensors available in different sensing and temperature ranges to suit a variety of industrial applications.
Features and benefits
Nickel plated brass housing with PBT face;LED indication;Embeddable, flush or non-flush installation available;IP67;Supply voltage 10 to 30Vdc;Short circuit and reverse polarity protection;Pre-wired types have 2m PVC cable;Plug-in types have M12 type connector
