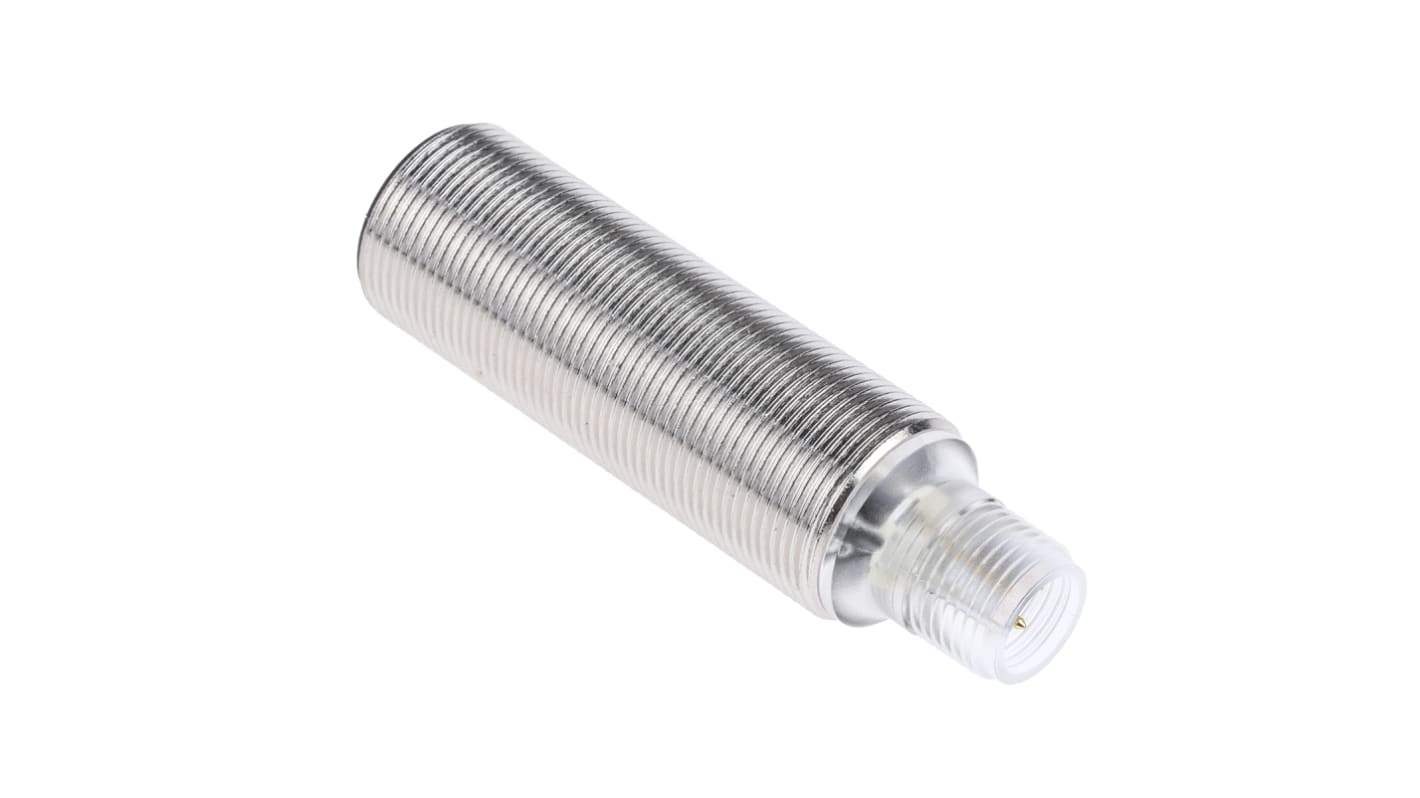

BALLUFF Inductive Barrel-Style Proximity Sensor, M18 x 1, 8 mm Detection, PNP Output, 12 → 30 V dc, IP68
- RS Stock No.:
- 814-1017
- Mfr. Part No.:
- BES M18MI-PSC80B-S04K
- Brand:
- BALLUFF
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£43.99
(exc. VAT)
£52.79
(inc. VAT)
- RS Stock No.:
- 814-1017
- Mfr. Part No.:
- BES M18MI-PSC80B-S04K
- Brand:
- BALLUFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BALLUFF | |
| Sensor Technology | Inductive | |
| Body Style | Barrel | |
| Thread Size | M18 x 1 | |
| Output Type | PNP | |
| Detection Range | 8 mm | |
| Terminal Type | M12 - 4 Pin | |
| IP Rating | IP68 | |
| Supply Voltage | 12 → 30 V dc | |
| Length | 65mm | |
| Maximum DC Voltage | 30V | |
| Mounting Type | Flush Mount | |
| Switching Current | 200 mA | |
| Housing Material | CuZn | |
| Maximum Switching Frequency | 150Hz | |
| Shielding | Shielded | |
| Maximum Operating Temperature | +70°C | |
| Short Circuit Overload Protection | Yes | |
| Minimum Operating Temperature | -25°C | |
| Reverse Polarity Protection | Yes | |
Select all | ||
|---|---|---|
Brand BALLUFF | ||
Sensor Technology Inductive | ||
Body Style Barrel | ||
Thread Size M18 x 1 | ||
Output Type PNP | ||
Detection Range 8 mm | ||
Terminal Type M12 - 4 Pin | ||
IP Rating IP68 | ||
Supply Voltage 12 → 30 V dc | ||
Length 65mm | ||
Maximum DC Voltage 30V | ||
Mounting Type Flush Mount | ||
Switching Current 200 mA | ||
Housing Material CuZn | ||
Maximum Switching Frequency 150Hz | ||
Shielding Shielded | ||
Maximum Operating Temperature +70°C | ||
Short Circuit Overload Protection Yes | ||
Minimum Operating Temperature -25°C | ||
Reverse Polarity Protection Yes | ||
- COO (Country of Origin):
- DE
BES 3 / 4Wire M18 Inductive Proximity Sensor
This range of M18 cylindrical inductive proximity sensors from the BALLUFF BES series are designed to be used in a wide vareity of metal detection applications with in industrial environments.
Pre cabled or connector
Flush shielded or non-flush unshielded
3 wire DC configuration
Flush shielded or non-flush unshielded
3 wire DC configuration
