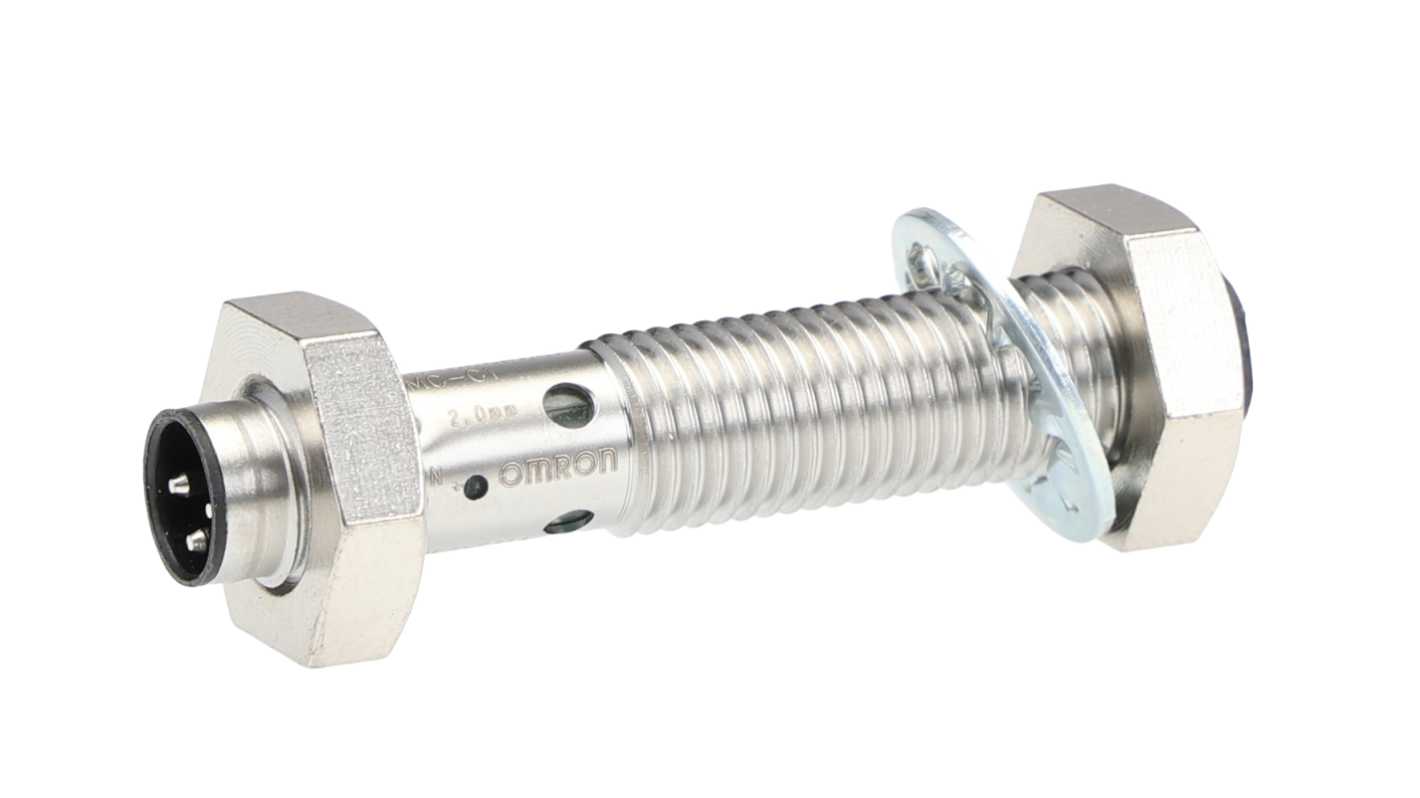

Omron Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, NPN NO, 10 → 30 V dc

RS Stock No.:: 805-5008
Mfr. Part No.:: E2B-S08KS02-MC-C1
Brand:: Omron

Omron Inductive Threaded Barrel Proximity Sensor, M8, 2 mm Detection, NPN NO, 10 → 30 V dc

Subtotal (1 unit)*

£38.27

(exc. VAT)

£45.92

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

14 unit(s) ready to ship
Plus 28 unit(s) shipping from 08 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£38.27

*price indicative

RS Stock No.:: 805-5008
Mfr. Part No.:: E2B-S08KS02-MC-C1
Brand:: Omron

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Thread Size	M8
	Sensor Technology	Inductive
	Body Style	Threaded Barrel
	Detection Range	2 mm
	Output Function	NO
	Digital Switching Output Type	NPN
	Connection Type	M8
	Supply Voltage	10 → 30 V dc
	IP Rating	IP67
	Length	44mm
	Mounting Type	Flush
	Housing Material	Stainless Steel
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+70°C
	Reverse Polarity Protection	Yes
	Maximum Switching Frequency	1.5kHz
	Switching Frequency	1.5 kHz
	Series	E2B
	Switching Current	200 mA
	Shielding	Shielded
	Short Circuit Overload Protection	Yes

	Select all
	Brand Omron
	Thread Size M8
	Sensor Technology Inductive
	Body Style Threaded Barrel
	Detection Range 2 mm
	Output Function NO
	Digital Switching Output Type NPN
	Connection Type M8
	Supply Voltage 10 → 30 V dc
	IP Rating IP67
	Length 44mm
	Mounting Type Flush
	Housing Material Stainless Steel
	Maximum DC Voltage 30V
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +70°C
	Reverse Polarity Protection Yes
	Maximum Switching Frequency 1.5kHz
	Switching Frequency 1.5 kHz
	Series E2B
	Switching Current 200 mA
	Shielding Shielded
	Short Circuit Overload Protection Yes

Omron E2B Series Proximity Sensor, 2mm Detection Range, M8 Thread size - E2B-S08KS02-MC-C1

This inductive proximity sensor is designed for precise detection in various applications. With an M8 threaded barrel and a compact length of 44mm, it is easy to install, particularly in flush mounting situations. This sensor provides a detection range of 2mm and operates within a supply voltage range of 10 to 30 V DC.

Features & Benefits

• NPN output provides a reliable switching function
• IP67 rating offers protection against dust and water ingress
• Stainless steel housing enhances durability in industrial settings
• Operating temperature range from -25°C to +70°C accommodates various environments

Applications

• Ideal for automation systems in manufacturing environments
• Utilised in robotic arms for accurate sensing
• Used in packaging machinery for object detection
• Implemented in conveyors to ensure material handling safety
• Suitable for assembly lines where space is limited

What is the maximum frequency this device can operate at?

The sensor supports a maximum switching frequency of 1.5kHz, suitable for high-speed applications.

How does this sensor protect against common electrical issues?

It incorporates both reverse polarity protection and short circuit overload protection to safeguard the device and connected systems from electrical faults.

What kind of materials can this sensor detect?

The inductive proximity sensor effectively detects all types of metallic materials, making it versatile for various industrial applications.

What are the benefits of its stainless steel housing?

The stainless steel construction ensures resistance to corrosion and wear, providing longevity in harsh industrial conditions.

Is this sensor compatible with existing equipment?

With an M8 connection type, it integrates easily with standard industrial wiring used in automation and control systems.
