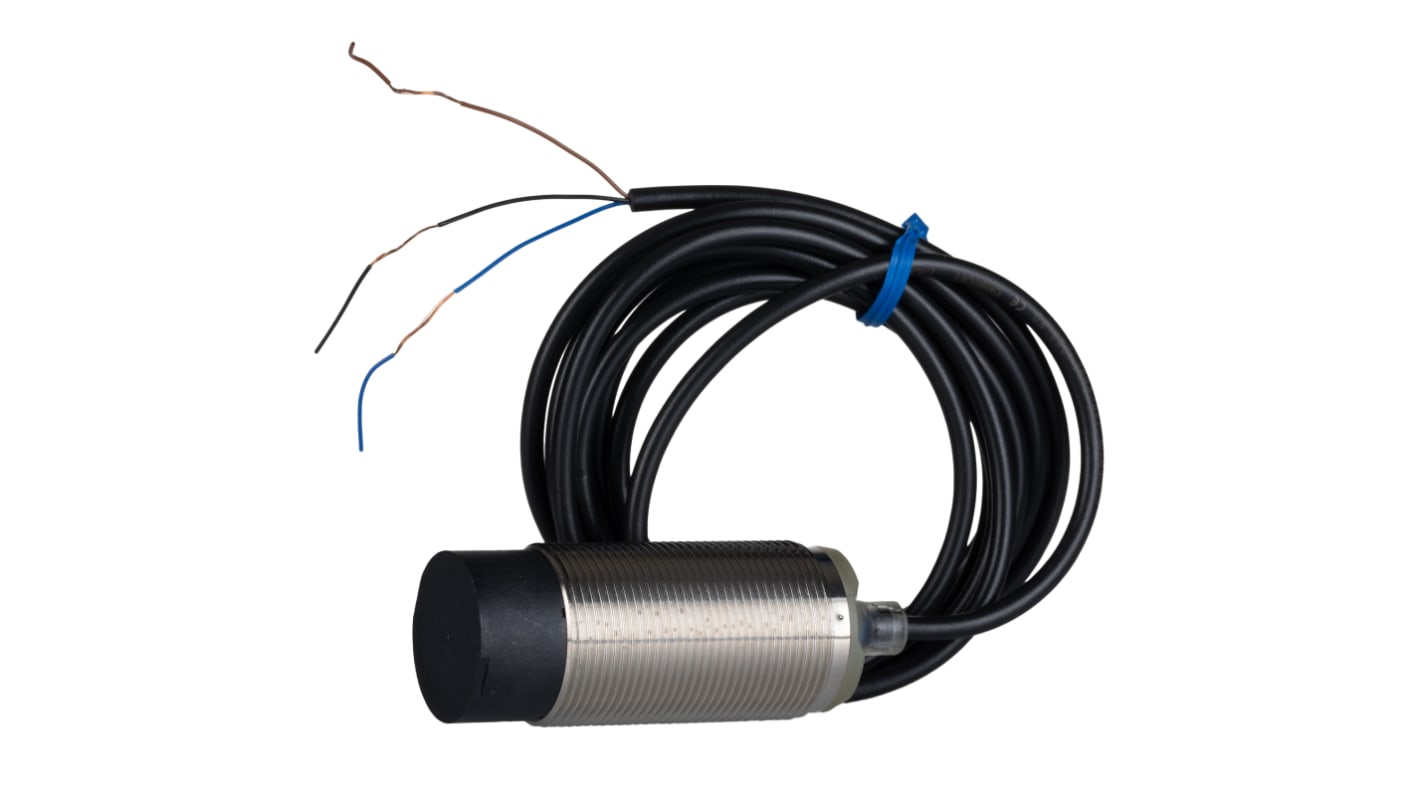

Omron Inductive Threaded Barrel Proximity Sensor, M30, 30 mm Detection, PNP NO, 12 → 24 V dc

Subtotal (1 unit)*

£44.41

(exc. VAT)

£53.29

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 24 unit(s) ready to ship
  • Plus 7 unit(s) ready to ship from another location
  • Plus 20 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£44.41

*price indicative

RS Stock No.:
805-4888
Mfr. Part No.:
E2B-M30LN30-WP-B1 2M
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Thread Size

M30

Sensor Technology

Inductive

Body Style

Threaded Barrel

Detection Range

30 mm

Digital Switching Output Type

PNP

Output Function

NO

Connection Type

Pre-Cabled

Cable Length

2m

Supply Voltage

12 → 24 V dc

Length

63mm

IP Rating

IP67

Mounting Type

Non-Flush

Housing Material

Brass

Maximum DC Voltage

30V

Minimum Operating Temperature

-25°C

Depth

27.8mm

Short Circuit Overload Protection

Yes

Series

E2B

Switching Frequency

100 Hz

Reverse Polarity Protection

Yes

Switching Current

200 mA

Maximum Operating Temperature

+70°C

Shielding

Unshielded

Maximum Switching Frequency

100Hz

Omron E2B Series Proximity Sensor, PNP Output, 30mm Detection Range - E2B-M30LN30-WP-B1 2M


This proximity sensor detects metal objects within a 30mm range, making it essential for automation across various industries. Its durable brass housing and IP67 rating ensure protection against dust and water ingress, enabling reliable operation in challenging environments and adding value to industrial applications.

Features & Benefits


• Operates within a temperature range of -25 to +70°C
• Facilitates easy installation with a pre-wired 2m cable
• Provides PNP output for integration with existing systems
• Ensures performance stability with short circuit protection
• The cylindrical design allows for installation in confined spaces
• Unshielded design suitable for non-flush mount applications

Applications


• Utilised in packaging machinery for process automation
• Applied in conveyor systems for object detection
• Incorporated in assembly lines for quality control
• Used in robotics for precise positioning
• Employed in metalworking machines for monitoring purposes

How does the sensor perform in harsh environments?


It operates effectively between -25°C and +70°C and is protected against water and dust with an IP67 rating.

Can it be mounted in any orientation?


Yes, its design accommodates flexible mounting in various positions without compromising performance.

What type of output does it provide?


The sensor features a PNP output compatible with numerous control systems.

Is it suitable for use with non-ferrous metals?


Detection range may diminish when identifying non-ferrous metals, as the sensor is optimised for ferrous objects.

Are there any specific installation requirements?


Ensure proper wiring as per the provided guidelines and verify the load connection to prevent damage during operation.
