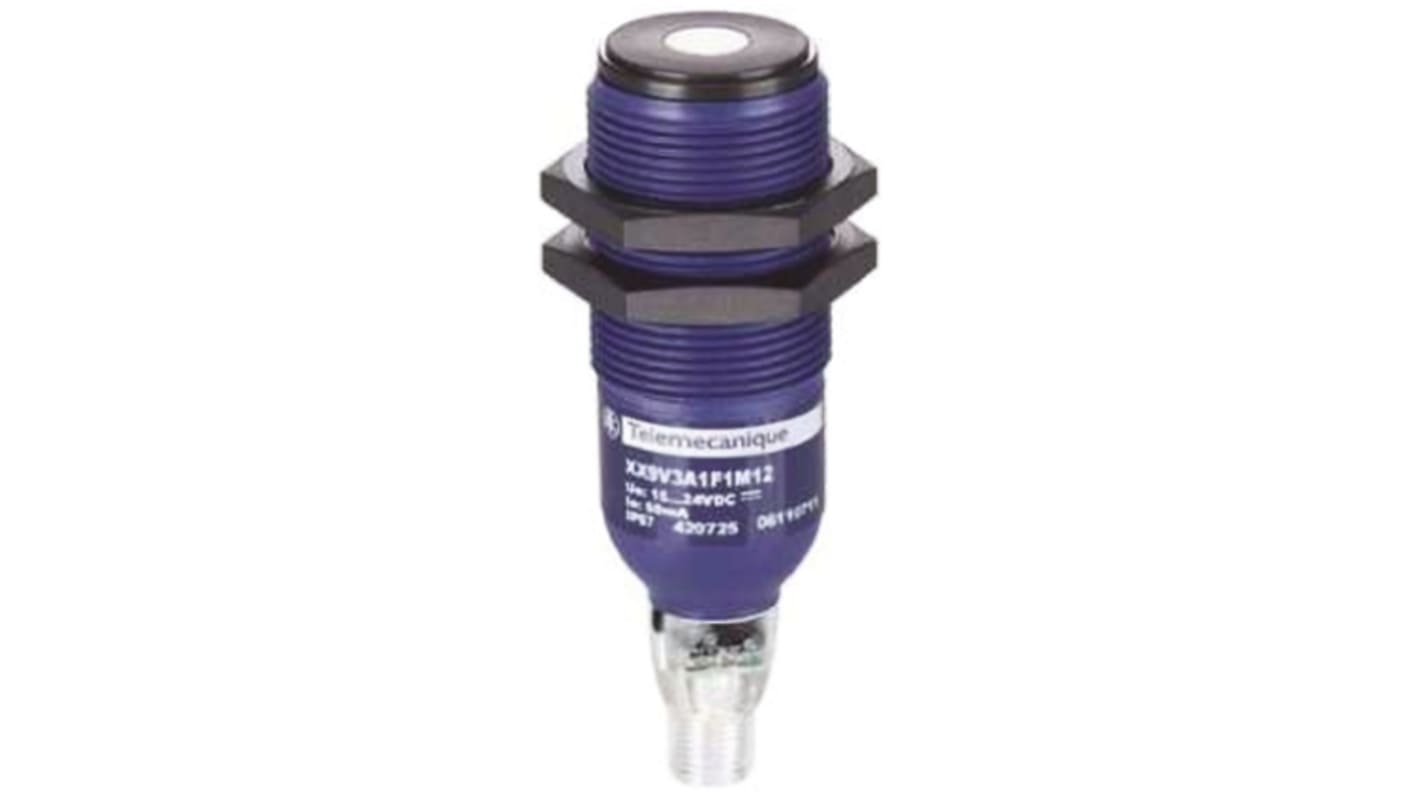

Telemecanique Sensors Ultrasonic Threaded Barrel Proximity Sensor, M30, 100 → 1000 mm Detection, 15 → 24
- RS Stock No.:
- 753-0545
- Mfr. Part No.:
- XX9V3A1C2M12
- Brand:
- Telemecanique Sensors
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£555.32
(exc. VAT)
£666.38
(inc. VAT)
- RS Stock No.:
- 753-0545
- Mfr. Part No.:
- XX9V3A1C2M12
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Thread Size | M30 | |
| Sensor Technology | Ultrasonic | |
| Detection Range | 100 → 1000 mm | |
| Body Style | Threaded Barrel | |
| Supply Voltage | 15 → 24 V dc | |
| IP Rating | IP67 | |
| Length | 95.2mm | |
| Housing Material | Valox | |
| Maximum DC Voltage | 24V | |
| Minimum Operating Temperature | 0°C | |
| Reverse Polarity Protection | Yes | |
| Maximum Operating Temperature | +70°C | |
| Switching Current | 60 mA | |
| Short Circuit Overload Protection | Yes | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Thread Size M30 | ||
Sensor Technology Ultrasonic | ||
Detection Range 100 → 1000 mm | ||
Body Style Threaded Barrel | ||
Supply Voltage 15 → 24 V dc | ||
IP Rating IP67 | ||
Length 95.2mm | ||
Housing Material Valox | ||
Maximum DC Voltage 24V | ||
Minimum Operating Temperature 0°C | ||
Reverse Polarity Protection Yes | ||
Maximum Operating Temperature +70°C | ||
Switching Current 60 mA | ||
Short Circuit Overload Protection Yes | ||
- COO (Country of Origin):
- US
Cylindrical Ultrasonic 4-20mA - 1m Sn
Analogue 4-20mA output
M30 cylindrical body
Operating distance: adjustable using teach mode
Electrical connection: connector
LED indication
M30 cylindrical body
Operating distance: adjustable using teach mode
Electrical connection: connector
LED indication
OsiSense
Osisense ultrasonic sensors are ideal for use in many applications as detection of any material including metal, plastic, liquid and any colour is possible, the main types of applications are:
Food and Beverage processing.
- For liquid level detection without contact with the liquid
- Detection of powders
- Detection of glass bottles
Packaging.
- Detection of objects passing on a conveyor.
Automobile industry.
- Monitoring presence of car windscreens.
